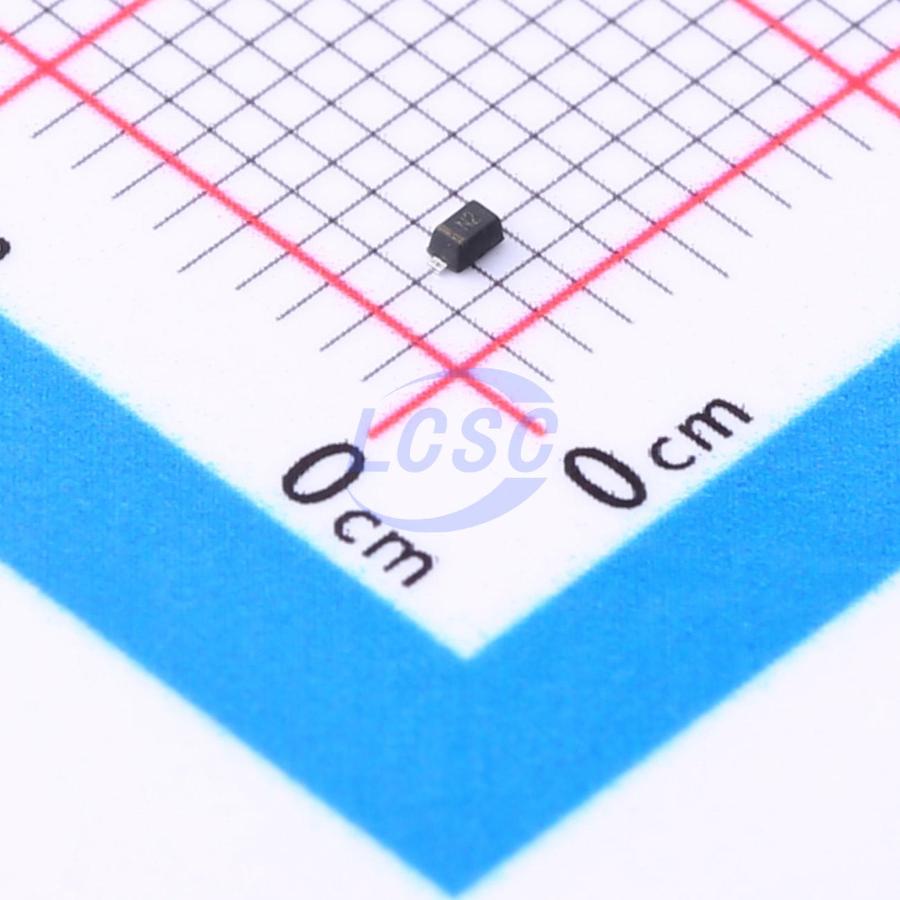

PESD5V0S1UB
15VC Clamp ESD DIODE SOD-523
SOD-523RoHSActive
ESD DIODE 5VWM 15VC SOD-523
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- PESD5V0S1UB
- Store part #
- C2912530
- Package / case
- SOD-523
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
Out of stock
#C2912530
Stock & price checked 11 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 20+ | ₹3.55 | ₹71.00 |
| 200+ | ₹2.84 | ₹568.00 |
| 600+ | ₹2.45 | ₹1,470.00 |
| 3,000+ | ₹1.93 | ₹5,790.00 |
| 9,000+ | ₹1.73 | ₹15,570.00 |
| 21,000+ | ₹1.63 | ₹34,230.00 |
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
Specifications
- Clamping Voltage
- 15V
- Operating Temperature
- -55℃~+125℃
- Peak Pulse Current (Ipp)
- 10A@8/20us
- Peak Pulse Power Dissipation (Ppp)
- 150W@8/20us
- Number of Channels
- 1
- Voltage - Breakdown
- 6V
- type
- TVS
- Polarity
- Unidirectional
- Reverse Leakage Current (Ir)
- 200nA
- Reverse Stand-Off Voltage (Vrwm)
- 5V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 20 (multiples of 20)
- Unit weight
- 0.023 g
Overview
Applications
- Cellular Handsets and Accessories
- Personal Digital Assistants
- Notebooks and Handhelds
- Portable Instrumentation
- Digital Cameras
- Peripherals
- Audio Players
- Keypads, Side Keys, LCD Displays, USB2.0
Key features
- 150 Watts peak pulse power (tp = 8/20μs)
- Transient protection for high speed data lines to IEC 61000 - 4 - 2 (ESD) ± 30kV (air), ± 30kV (contact)
- IEC 61000 - 4 - 4 (EFT) 40A(5/50ns)
- Protects One Power or I/O Port
- Low leakage current
- Low operating and clamping voltages
- Solid - state silicon avalanche technology
