TECH PUBLICDatasheet (PDF)

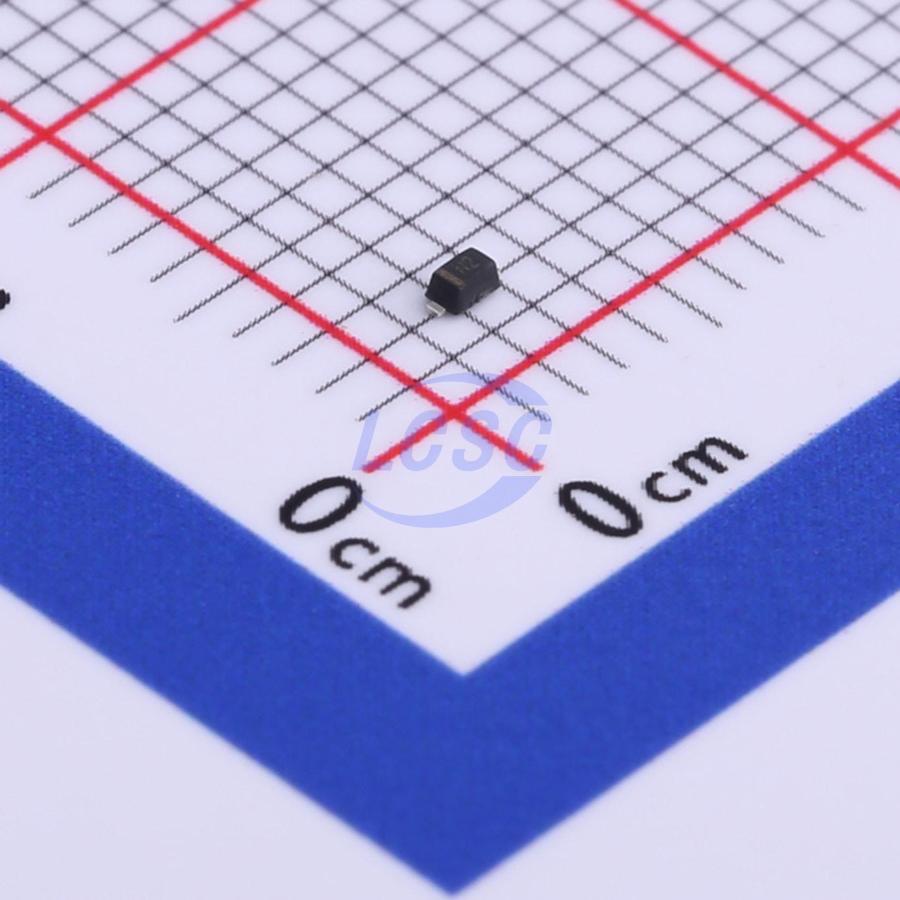

TPESD5Z5.0
nan
SOD-523RoHSActive
5VWM 15VC SOD-523
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- TPESD5Z5.0
- Store part #
- C521907
- Package / case
- SOD-523
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,540 in stock
#C521907
Stock & price checked 12 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 20+ | ₹3.00 | ₹60.00 |
| 200+ | ₹2.35 | ₹470.00 |
| 600+ | ₹2.00 | ₹1,200.00 |
| 3,000+ | ₹1.71 | ₹5,130.00 |
| 9,000+ | ₹1.52 | ₹13,680.00 |
| 21,000+ | ₹1.42 | ₹29,820.00 |
20 × ₹3.00
₹60.00
excl. GST
₹70.80 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TPESD5Z5.0
₹60.00 for 20 + GST
Specifications
- Clamping Voltage
- 15V
- Peak Pulse Power Dissipation (Ppp)
- 150W@8/20us
- Number of Channels
- 1
- Voltage - Breakdown
- 6V
- type
- TVS
- Polarity
- Unidirectional
- Reverse Leakage Current (Ir)
- 200nA
- Reverse Stand-Off Voltage (Vrwm)
- 5V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 20 (multiples of 20)
- Unit weight
- 0.03 g
Overview
Applications
- Cellular Handsets and Accessories
- Personal Digital Assistants
- Notebooks and Handhelds
- Portable Instrumentation
- Digital Cameras
- Peripherals
- Audio Players
- Keypads, Side Keys, LCD Displays, USB2.0
Key features
- 150 Watts peak pulse power (tp = 8/20μs)
- Transient protection for high speed data lines to IEC 61000-4-2 (ESD) ± 25kV (air), ± 25kV (contact) IEC 61000-4-4 (EFT) 40A (5/50ns)
- Protects One Power or I/O Port
- Low leakage current
- Low operating and clamping voltages
- Solid-state silicon avalanche technology
