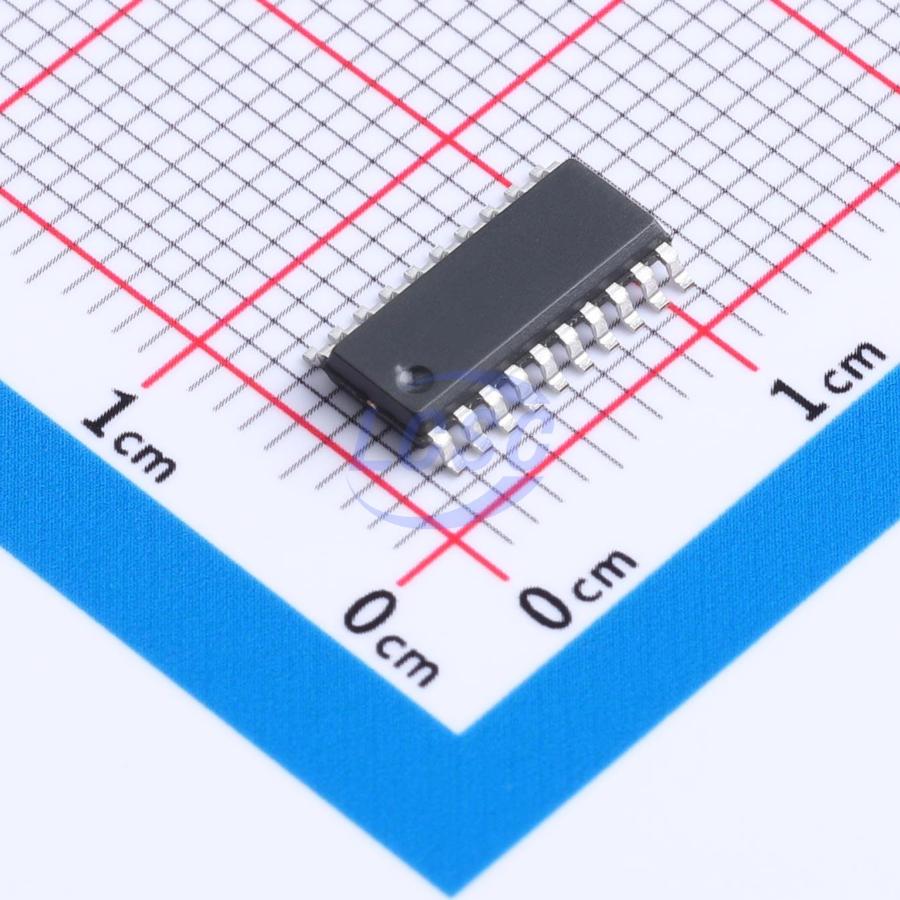

PFS123-H20

Others 8 Bit 8MHz HTSOP-20 Microcontrollers RoHS

HTSOP-20ROHS CompliantActive

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

100 in stock

#C5185356

Stock & price checked 6 days ago

Quantity (min 5, multiples of 5)

5 × ₹19.49

₹97.45

excl. GST

₹114.99 incl. 18% GST

PFS123-H20

₹97.45 for 5 + GST

Specifications

8-bit MTP MCU with integrated 12-bit resistive ADC
Operating voltage range: 2.0V ~ 5.5V
Operating temperature range: -40℃ ~ 85℃
1K×14-bit MTP program memory
64-byte SRAM data memory
Built-in 16MHz high-precision IHRC oscillator (factory-calibrated to ±1% accuracy)
Built-in 32KHz low-power ILRC oscillator
External 32.768KHz crystal oscillator support
External 1MHz ~ 4MHz crystal oscillator support
11-bit PWM generator with complementary output and dead-band control
2-channel 8-bit PWM (Timer2/Timer3)
1-channel 16-bit counter (Timer16)
2 analog comparators
Internal 1.20V bandgap voltage reference
VDD/2 bias voltage generator for LCD driving
12-bit ADC with 11 external input channels and multiple internal signal sources
Watchdog timer
Multiple reset sources: POR, LVR, watchdog reset, external pin reset
Multiple power-saving modes: power-saving mode (STOPEXE) and power-down mode (STOPSYS)
12 I/O pins with programmable pull-up/pull-down resistors
Interrupt support with multiple interrupt sources
Package options: SOP8, SOP14, SOP16
