VBsemi ElecDatasheet (PDF)

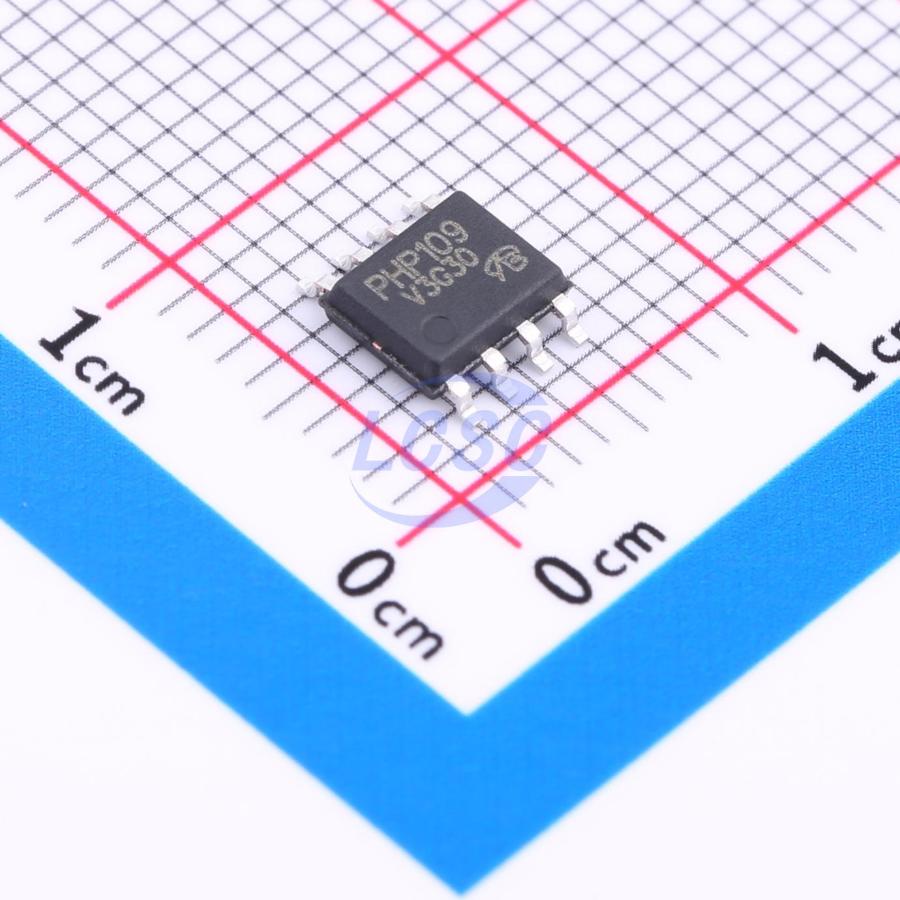

PHP109-VB
P-Channel 30V 5.8A 1.3W Surface Mount SO-8
SO-8RoHSActive
MOSFET P-CH 30V 5.8A SO-8
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- PHP109-VB
- Store part #
- C20417703
- Package / case
- SO-8
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
50 in stock
#C20417703
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹37.98 | ₹189.90 |
| 50+ | ₹30.15 | ₹1,507.50 |
| 150+ | ₹26.79 | ₹4,018.50 |
| 500+ | ₹22.60 | ₹11,300.00 |
| 2,500+ | ₹20.73 | ₹51,825.00 |
| 4,000+ | ₹19.61 | ₹78,440.00 |
5 × ₹37.98
₹189.90
excl. GST
₹224.08 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
PHP109-VB
₹189.90 for 5 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 30V
- Current - Continuous Drain(Id)
- 5.8A
- Pd - Power Dissipation
- 1.3W
- RDS(on)
- 33mΩ@10V;43mΩ@6V;56mΩ@4.5V
- Number
- 1 P-Channel
- Gate Charge(Qg)
- 16nC@10V
- Gate Threshold Voltage (Vgs(th))
- 2V
- Type
- P-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.128 g
Overview
Key features
- Halogen-free per IEC 61249-2-21
- Trench power MOSFET
- RoHS compliant per directive 2002/95/EC
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | TPC8104-H-VB#C5456612VBsemi Elec · SO-8 | VBsemi Elec | SO-8 | 3,895 | ₹26.54 · 3,895 in stock | View |
 | FDS9435A-NL-VB#C725040VBsemi Elec · SO-8 | VBsemi Elec | SO-8 | 305 | ₹46.90 · 305 in stock | View |
 | AP9435GM-HF-VB#C7463671VBsemi Elec · SO-8 | VBsemi Elec | SO-8 | 25 | ₹37.40 · 25 in stock | View |
 | STJ009-VB#C29779209VBsemi Elec · SO-8 | VBsemi Elec | SO-8 | 10 | ₹36.49 · 10 in stock | View |
 | SI9435BDY-T1-E3-VB#C558275VBsemi Elec · SO-8 | VBsemi Elec | SO-8 | 50 | ₹48.47 · 50 in stock | View |
