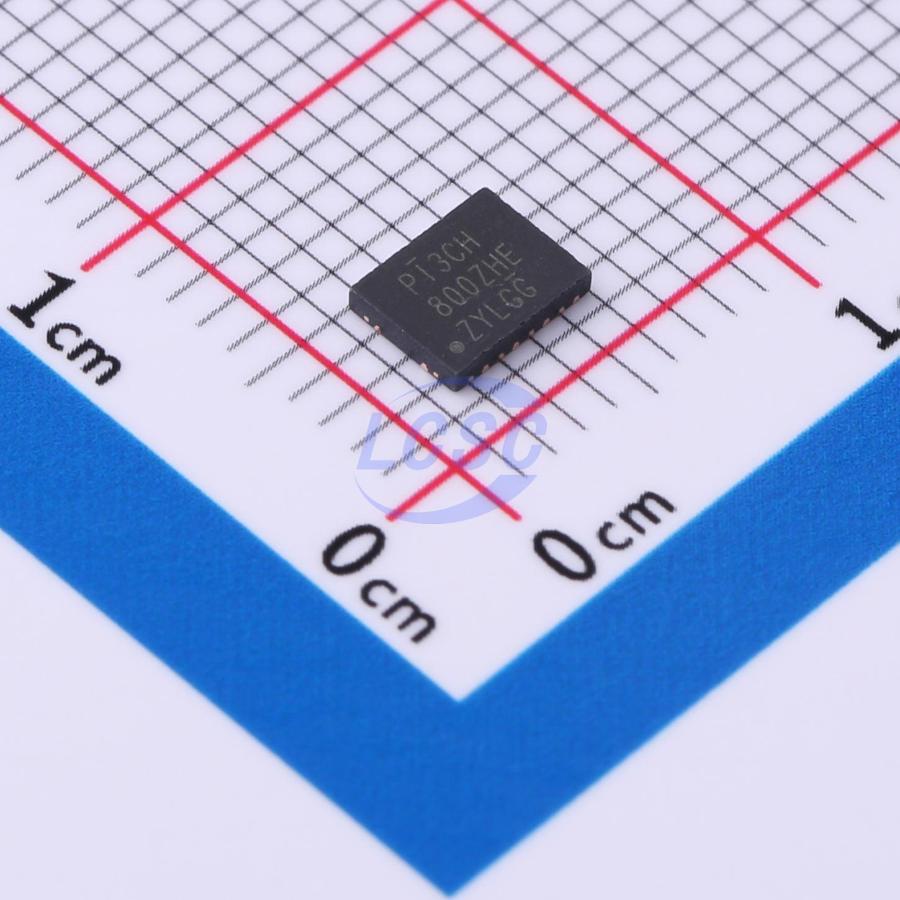

DIODES

PI3CH800ZHEX

8/8 0.5mA 0.3ns@3.3V,10pF TQFN-20-EP(3.5x4.5) Signal Switches, Multiplexers, Decoders RoHS

TQFN-20-EP(3.5x4.5)ROHS3 CompliantActive

8-Bit Bus Switch, Enable Low, High-Bandwidth, Hot Plug

Manufacturer: DIODES
Manufacturer part #: PI3CH800ZHEX
Store part #: C2674595
Package / case: TQFN-20-EP(3.5x4.5)
Category: Signal Switches, Multiplexers, Decoders
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

1,561 in stock

#C2674595

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
1+	₹125.87	₹125.87
10+	₹116.15	₹1,161.50
30+	₹110.97	₹3,329.10
100+	₹104.93	₹10,493.00
500+	₹102.33	₹51,165.00
1,000+	₹101.04	₹1,01,040.00

Quantity (min 1)

1 × ₹125.87

₹125.87

excl. GST

₹148.53 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 3,500 per reel

PI3CH800ZHEX

₹125.87 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Number of Channels: 8/8
Voltage - Supply: 1.8V;2.5V;3.3V
Operating Temperature: -40℃~+85℃
Quiescent Current: 0.5mA
Propagation Delay: 0.3ns@3.3V,10pF
Function: Hot-swap protection;Output enable high-impedance

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
Moisture sensitivity: MSL 1 (unlimited)
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 3,500 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.36 g

Overview

A low voltage, 8-channel switch designed with fast individual enables. The switch introduces no additional ground bounce noise or additional propagation delay. The device has active low enables. It is very useful in switching signals that have high bandwidth (500 MHz).

Applications

High Bandwidth Data Switching
Hot-Docking
Analog Signal Switching
Differential Signal Switching

Key features

Near-Zero propagation delay
5-ohm switches connect inputs to outputs
High signal passing bandwidth (500 MHz)
Beyond Rail-to-Rail switching - 0 to 5V switching with 3.3V power supply - 0 to 3.3V switching with 2.5V power supply
5V I/O tolerant with supply in OFF and ON state
1.8V, 2.5V and 3.3V supply voltage operation
Hot Insertion Capable
Industrial Operating Temperature: -40°C to +85°C
8kV ESD Protection (human body model)
Latch-up Performance: >200mA per JESD17
Packaging (Pb-free & Green available):
20-pin 150-mil wide plastic QSOP (Q)
20-pin 173-mil wide plastic TSSOP (L)
20-pin TQFN (ZH)
