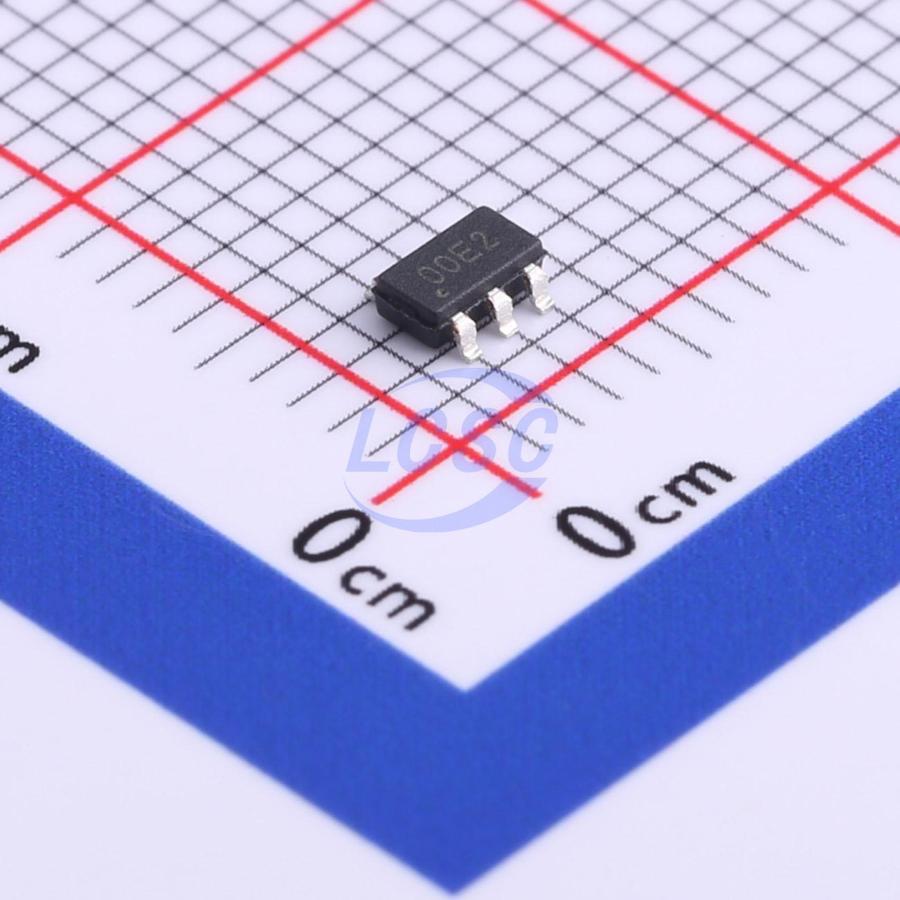

PIC10F200T-I/OT

Key features

• Only 33 single-word instructions to learn
• All single-cycle instructions except for program branches, which are two-cycle
• 12-bit wide instructions
• 2-level deep hardware stack
• Direct, Indirect and Relative Addressing modes for data and instructions
• 8-bit wide data path
• 8 Special Function Hardware registers
• Operating speed: 4 MHz internal clock, 1 μs instruction cycle
• 4 MHz precision internal oscillator: Factory calibrated to ±1%
• In-Circuit Serial Programming™ (ICSP™)
• In-Circuit Debugging (ICD) support
• Power-on Reset (POR)
• Device Reset Timer (DRT)
• Watchdog Timer (WDT) with dedicated on-chip RC oscillator for reliable operation
• Programmable code protection
• Multiplexed MCLR input pin
• Internal weak pull-ups on I/O pins
• Power-Saving Sleep mode
• Wake-up from Sleep on pin change
• Operating Current: < 175 μA @ 2V, 4 MHz, typical
• Standby Current: 100 nA @ 2V, typical
• Low-power, high-speed Flash technology: 100,000 Flash endurance, > 40 year retention
• Fully static design
• Wide operating voltage range
