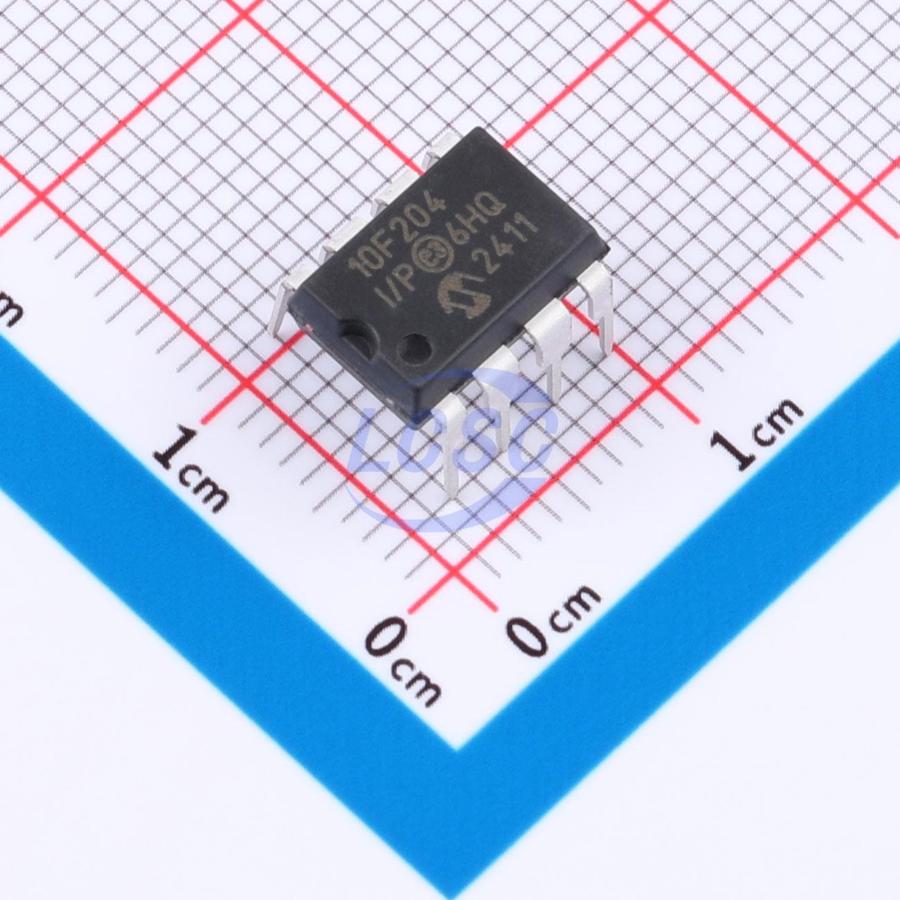

PIC10F204-I/P

The PIC10F200/202/204/206 devices are low-cost, high-performance, 8-bit, fully-static, Flash-based CMOS microcontrollers. They employ a RISC architecture with only 33 single-word/ single-cycle instructions. All instructions are single cycle (1 μs) except for program branches, which take two cycles. The PIC10F200/202/204/206 devices deliver performance in an order of magnitude higher than their competitors in the same price category. The 12-bit wide instructions are highly symmetrical, resulting in a typical 2:1 code compression over other 8-bit microcontrollers in its class. The easy-to-use and easy to remember instruction set reduces development time significantly. The PIC10F200/202/204/206 products are equipped with special features that reduce system cost and power requirements. The Power-on Reset (POR) and Device Reset Timer (DRT) eliminate the need for external Reset circuitry. INTRC Internal Oscillator mode is provided, thereby preserving the limited number of I/O available. Power-Saving Sleep mode, Watchdog Timer and code protection features improve system cost, power and reliability.

Key features

• Only 33 Single-Word Instructions to Learn
• All Single-Cycle Instructions except for Program Branches, which are Two-Cycle
• 12-Bit Wide Instructions
• 2-Level Deep Hardware Stack
• Direct, Indirect and Relative Addressing modes for Data and Instructions
• 8-Bit Wide Data Path
• Eight Special Function Hardware Registers
• Operating Speed: - 4 MHz internal clock - 1 μs instruction cycle
• 4 MHz Precision Internal Oscillator: - Factory calibrated to ±1%
• In-Circuit Serial Programming (ICSP)
• In-Circuit Debugging (ICD) Support
• Power-on Reset (POR)
• Device Reset Timer (DRT)
• Watchdog Timer (WDT) with Dedicated On-Chip RC Oscillator for Reliable Operation
• Programmable Code Protection
• Multiplexed MCLR Input Pin
• Internal Weak Pull-ups on I/O Pins
• Power-Saving Sleep mode
• Wake-up from Sleep on Pin Change
• Operating Current: - <175 μA @ 2V, 4 MHz, typical
• Standby Current: - 100 nA @ 2V, typical
• Low-Power, High-Speed Flash Technology: - 100,000 Flash endurance - >40 year retention
• Fully Static Design
• Wide Operating Voltage Range: 2.0V to 5.5V
• Wide Temperature Range: - Industrial: -40℃ to +85℃ - Extended: -40℃ to +125℃
• Four I/O Pins: - Three I/O pins with individual direction control - One input-only pin High current sink/source for direct LED drive - Wake-on-change - Weak pull-ups
• 8-Bit Real-Time Clock/Counter (TMR0) with 8-Bit Programmable Prescaler
• One Comparator: - Internal absolute voltage reference - Both comparator inputs visible externally - Comparator output visible externally
