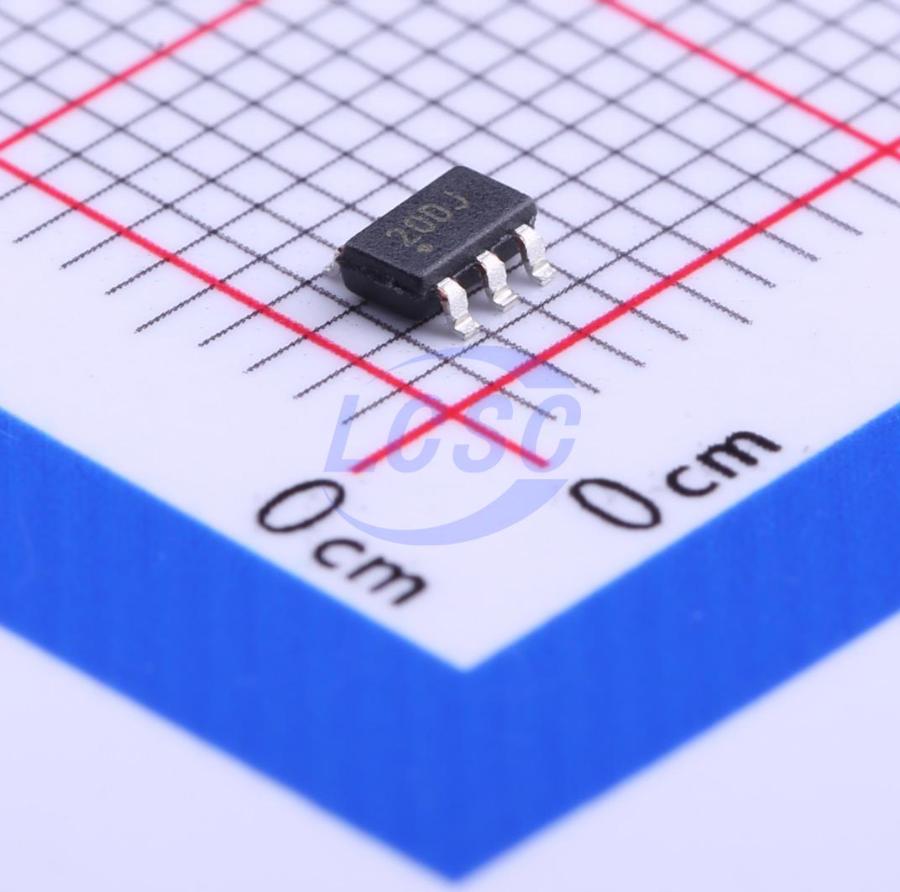

PIC10F220T-I/OT

Key features

• Only 33 Single-Word Instructions to Learn
• All Single-Cycle Instructions Except for Program Branches which are Two-Cycle
• 12-bit Wide Instructions
• 2-Level Deep Hardware Stack
• Direct, Indirect and Relative Addressing modes for Data and Instructions
• 8-bit Wide Data Path
• 8 Special Function Hardware Registers
• Operating Speed: - 500 ns instruction cycle with 8 MHz internal clock - 1 μs instruction cycle with 4 MHz internal clock
• 4 or 8 MHz Precision Internal Oscillator: - Factory calibrated to ±1%
• In-Circuit Serial Programming (ICSP)
• In-Circuit Debugging (ICD) Support
• Power-On Reset (POR)
• Short Device Reset Timer, DRT (1.125 ms typical)
• Watchdog Timer (WDT) with Dedicated On-Chip RC Oscillator for Reliable Operation
• Programmable Code Protection
• Multiplexed MCLR Input Pin
• Internal Weak Pull-Ups on I/O Pins
• Power-Saving Sleep mode
• Wake-up from Sleep on Pin Change
• Operating Current: - <175 μA @ 2V, 4 MHz
• Standby Current: - 100 nA @ 2V, typical
• Low-Power, High-Speed Flash Technology: - 100,000 Flash endurance - >40 -year retention
• Fully Static Design
• Wide Operating Voltage Range: 2.0V
