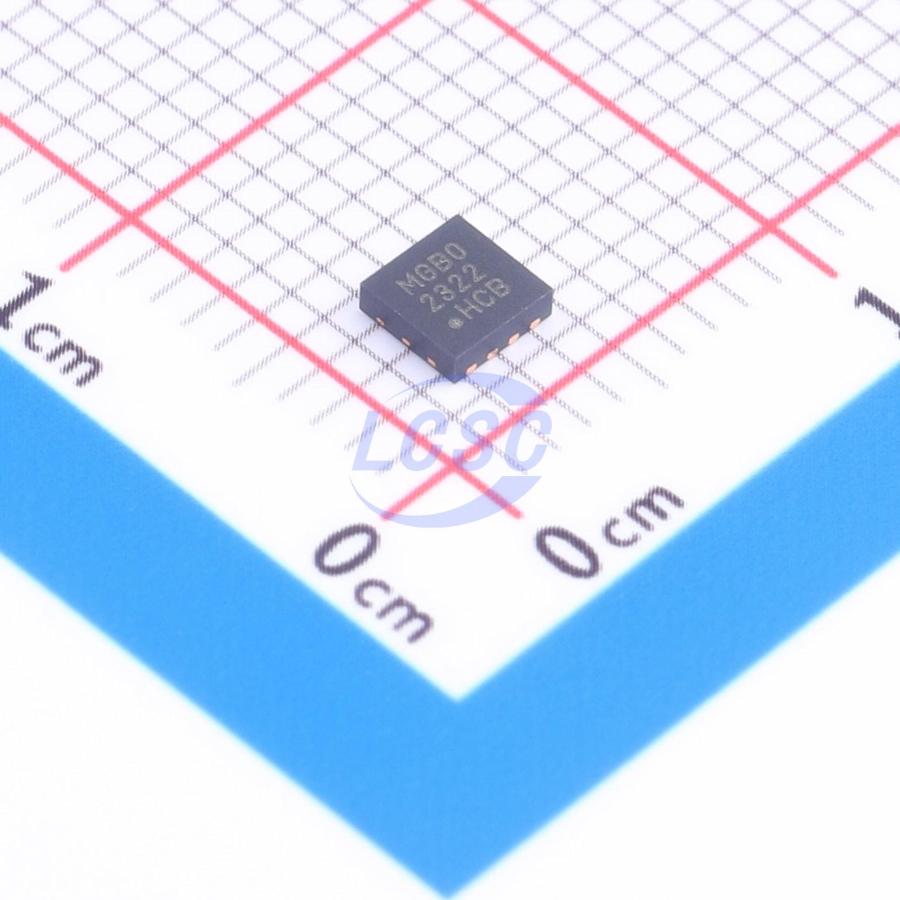

PIC12F1572T-I/MF

PIC12(L)F1571/2 microcontrollers combine the capabilities of 16-bit PWMs with Analog to suit a variety of applications. These devices deliver three 16-bit PWMs with independent timers for applications where high resolution is needed, such as LED lighting, stepper motors, power supplies and other general purpose applications. The core independent peripherals (16-bit PWMs, Complementary Waveform Generator), Enhanced Universal Synchronous Asynchronous Receiver Transceiver (EUSART) and Analog (ADCs, Comparator and DAC) enable closed-loop feedback and communication for use in multiple market segments. The EUSART peripheral enables the communication for applications such as LIN.

Applications

• LED lighting
• stepper motors
• power supplies
• LIN applications

Key features

• C Compiler Optimized RISC Architecture
• Only 49 Instructions
• Operating Speed: DC – 32 MHz clock input, 125 ns minimum instruction cycle
• Interrupt Capability
• 16-Level Deep Hardware Stack
• Two 8-Bit Timers
• One 16-Bit Timer
• Three Additional 16-Bit Timers available using the 16-Bit PWMs
• Power-on Reset (POR)
• Power-up Timer (PWRT)
• Low-Power Brown-out Reset (LPBOR)
• Programmable Watchdog Timer (WDT) up to 256s
• Programmable Code Protection
• Up to 3.5 Kbytes Flash Program Memory
• Up to 256 Bytes Data SRAM Memory
• Direct, Indirect and Relative Addressing modes
• High-Endurance Flash Data Memory (HEF): 128 bytes if nonvolatile data storage, 100k erase/write cycles
• Operating Voltage Range: 1.8V to 3.6V (PIC12LF1571/2), 2.3V to 5.5V (PIC12F1571/2)
• Temperature Range: Industrial: -40℃ to +85℃, Extended: -40℃ to +125℃
• Internal Voltage Reference module
• In-Circuit Serial Programming (ICSP) via Two Pins
• Sleep mode: 20 nA @ 1.8V, Typical
• Watchdog Timer: 260 nA @ 1.8V, Typical
• Operating Current: 30 μA/MHz @ 1.8V, typical
• 16-Bit PWM: Three 16-bit PWMs with independent timers, Multiple Output modes (Edge-Aligned, Center-Aligned, Set and Toggle on Register Match), User settings for phase, duty cycle, period, offset and polarity, 16-bit timer capability, Interrupts generated based on timer matches with Offset, Duty Cycle, Period and Phase registers
• Complementary Waveform Generator (CWG): Rising and falling edge dead-band control, Multiple signal sources
• Enhanced Universal Synchronous Asynchronous Receiver Transceiver (EUSART): Supports LIN applications
• Six I/Os
• Individually Selectable Weak Pull-ups
• Interrupt-On-Change Pins Option with Edge-Selectable Option
• 10-Bit Analog-to-Digital Converter (ADC): Up to four external channels, Conversion available during Sleep
• Comparator: Low-Power/High-Speed modes, Fixed Voltage Reference at (non)inverting input(s), Comparator outputs externally accessible, Synchronization with Timer1 clock source, Software hysteresis enable
• 5-Bit Digital-to-Analog Converter (DAC): 5-bit resolution, rail-to-rail, Positive reference selection, Unbuffered I/O pin output, Internal connections to ADCs and comparators
• Voltage Reference: Fixed voltage reference with 1.024V, 2.048V and 4.096V output levels
• Precision Internal Oscillator: Factory calibrated ±1%, typical, Software-selectable clock speeds from 31 kHz to 32 MHz
• External Oscillator Block with: Resonator modes up to 20 MHz, Two External Clock modes up to 32 MHz
• Fail-Safe Clock Monitor
• Digital Oscillator Input Available
