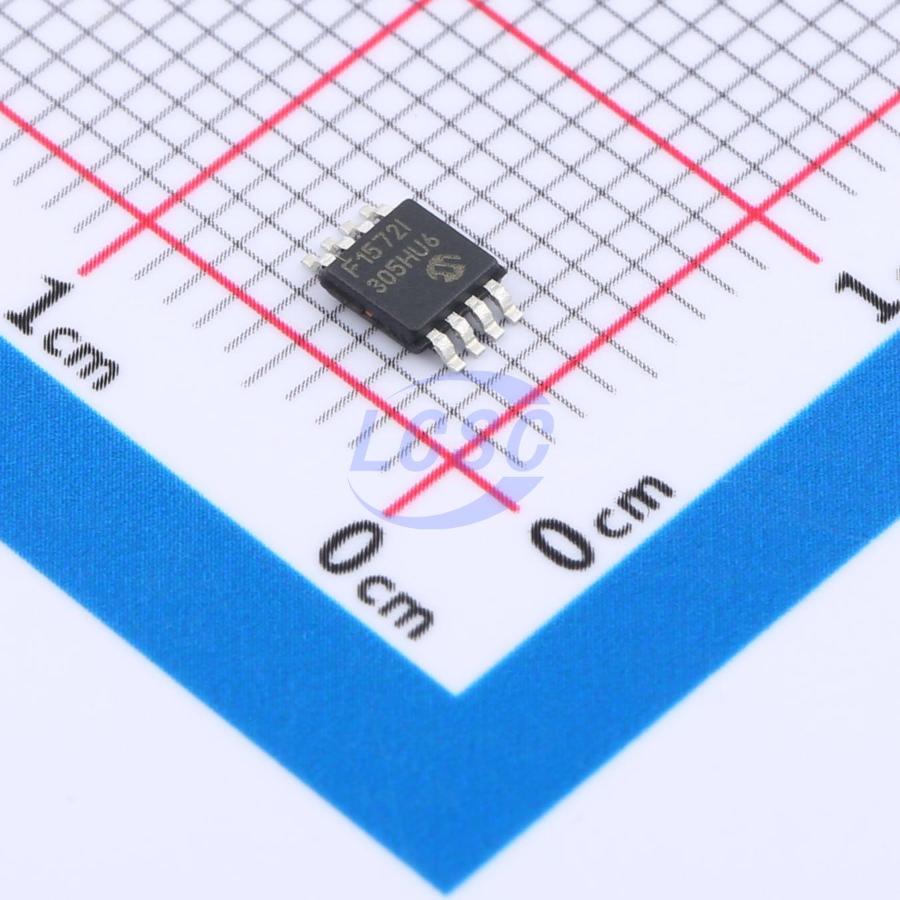

PIC12F1572T-I/MS

PIC12(L)F1571/2 microcontrollers combine the capabilities of 16-bit PWMs with Analog to suit a variety of applications. These devices deliver three 16-bit PWMs with independent timers for applications where high resolution is needed, such as LED lighting, stepper motors, power supplies and other general purpose applications. The core independent peripherals (16-bit PWMs, Complementary Waveform Generator), Enhanced Universal Synchronous Asynchronous Receiver Transceiver (EUSART) and Analog (ADCs, Comparator and DAC) enable closed-loop feedback and communication for use in multiple market segments. The EUSART peripheral enables the communication for applications such as LIN.

Applications

• LED lighting
• stepper motors
• power supplies
• LIN

Key features

• C Compiler Optimized RISC Architecture
• Only 49 Instructions
• Operating Speed: - DC – 32 MHz clock input - 125 ns minimum instruction cycle
• Interrupt Capability
• 16-Level Deep Hardware Stack
• Two 8-Bit Timers
• One 16-Bit Timer
• Three Additional 16-Bit Timers available using the 16-Bit PWMs
• Power-on Reset (POR)
• Power-up Timer (PWRT)
• Low-Power Brown-out Reset (LPBOR)
• Programmable Watchdog Timer (WDT) up to 256s
• Programmable Code Protection
• Up to 3.5 Kbytes Flash Program Memory
• Up to 256 Bytes Data SRAM Memory
• Direct, Indirect and Relative Addressing modes
• High-Endurance Flash Data Memory (HEF) - 128 bytes if nonvolatile data storage - 100k erase/write cycles
• Operating Voltage Range: - 1.8V to 3.6V (PIC12LF1571/2) - 2.3V to 5.5V (PIC12F1571/2)
• Temperature Range: - Industrial: -40℃ to +85℃ - Extended: -40℃ to +125℃
• Internal Voltage Reference module
• In-Circuit Serial Programming via Two Pins
• Sleep mode: 20 nA @ 1.8V, Typical
• Watchdog Timer: 260 nA @ 1.8V, Typical
• Operating Current: - 30 μA/MHz @ 1.8V, typical
• 16-Bit PWM: - Three 16-bit PWMs with independent timers - Multiple Output modes (Edge-Aligned, Center-Aligned, Set and Toggle on Register Match) - User settings for phase, duty cycle, period, offset and polarity - 16-bit timer capability - Interrupts generated based on timer matches with Offset, Duty Cycle, Period and Phase registers
• Complementary Waveform Generator (CWG): - Rising and falling edge dead-band control - Multiple signal sources
• Enhanced Universal Synchronous Asynchronous Receiver Transceiver (EUSART): - Supports LIN applications
• Six I/Os
• Individually Selectable Weak Pull-ups
• Interrupt-On-Change Pins Option with Edge-Selectable Option
• 10-Bit Analog-to-Digital Converter (ADC): - Up to four external channels - Conversion available during Sleep
• Comparator: - Low-Power/High-Speed modes - Fixed Voltage Reference at (non)inverting input(s) - Comparator outputs externally accessible Synchronization with Timer1 clock source - Software hysteresis enable
• 5-Bit Digital-to-Analog Converter (DAC): - 5-bit resolution, rail-to-rail - Positive reference selection - Unbuffered I/O pin output - Internal connections to ADCs and comparators
• Voltage Reference: - Fixed voltage reference with 1.024V, 2.048V and 4.096V output levels
• Precision Internal Oscillator: - Factory calibrated ±1%, typical - Software-selectable clock speeds from 31 kHz to 32 MHz
• External Oscillator Block with: - Resonator modes up to 20 MHz - Two External Clock modes up to 32 MHz
• Fail-Safe Clock Monitor
• Digital Oscillator Input Available
