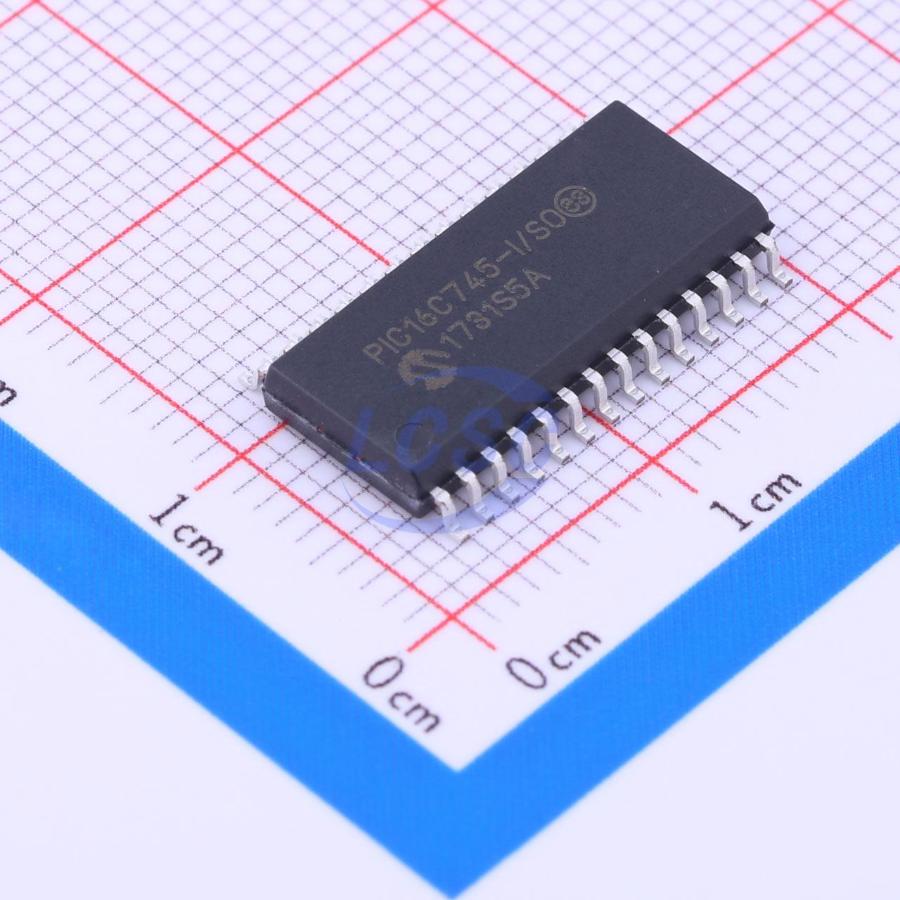

PIC16C745-I/SO

The PIC16C745/765 devices are low-cost, high-performance, CMOS, fully-static, 8-bit microcontrollers in the PIC16CXX mid-range family. All PICmicro microcontrollers employ an advanced RISC architecture. The PIC16CXX microcontroller family has enhanced core features, eight-level deep stack and multiple internal and external interrupt sources. The separate instruction and data buses of the Harvard architecture allow a 14-bit wide instruction word with the separate 8-bit wide data. The two stage instruction pipeline allows all instructions to execute in a single cycle, except for program branches, which require two cycles. A total of 35 instructions (reduced instruction set) are available. Additionally, a large register set gives some of the architectural innovations used to achieve a very high performance. The PIC16C745 device has 22 I/O pins. The PIC16C765 device has 33 I/O pins. Each device has 256 bytes of RAM. In addition, several peripheral features are available including: three timer/counters, two Capture/Compare/PWM modules and two serial ports. The Universal Serial Bus (USB 1.1) peri

Key features

• High-performance RISC CPU
• Only 35 single word instructions
• All single cycle instructions except for program branches which are two cycle
• Interrupt capability (up to 12 internal/external interrupt sources)
• Eight level deep hardware stack
• Direct, indirect and relative addressing modes
• Power-on Reset (POR)
• Power-up Timer (PWRT) and Oscillator Start-up Timer (OST)
• Watchdog Timer (WDT) with its own on-chip RC oscillator for reliable operation
• Brown-out detection circuitry for Brown-out Reset (BOR)
• Programmable code-protection
• Power saving SLEEP mode
• Selectable oscillator options - EC - External clock (24 MHz) - E4 - External clock with PLL (6 MHz) - HS - Crystal/Resonator (24 MHz) - H4 - Crystal/Resonator with PLL (6 MHz)
• Processor clock of 24MHz derived from 6 MHz crystal or resonator
• Fully static low-power, high-speed CMOS
• In-Circuit Serial Programming (ICSP)
• Operating voltage range - 4.35 to 5.25V
• High Sink/Source Current 25/25 mA
• Wide temperature range - Industrial (-40℃ - 85℃)
• Low-power consumption: < TBD @ 5V, 6 MHz < TBD typical standby current
• Universal Serial Bus (USB 1.1)
• 64 bytes of USB dual port RAM
• 22 (PIC16C745) or 33 (PIC16C765) I/O pins - Individual direction control - 1 high voltage open drain (RA4) - 8 PORTB pins with: - Interrupt on change control (RB<7:4> only) - Weak pull up control - 3 pins dedicated to USB
• Timer0: 8-bit timer/counter with 8-bit prescaler
• Timer1: 16-bit timer/counter with prescaler can be incremented during sleep via external crystal/clock
• Timer2: 8-bit timer/counter with 8-bit period register, prescaler and postscaler
• 2 Capture, Compare and PWM modules - Capture is 16 bit, max. resolution is 10.4 ns - Compare is 16 bit, max. resolution is 167 ns - PWM maximum resolution is 10 bit
• 8-bit multi-channel Analog-to-Digital converter
• Universal Synchronous Asynchronous Receiver Transmitter (USART/SCI)
• Parallel Slave Port (PSP) 8-bits wide, with external RD, WR and CS controls (PIC16C765 only)
