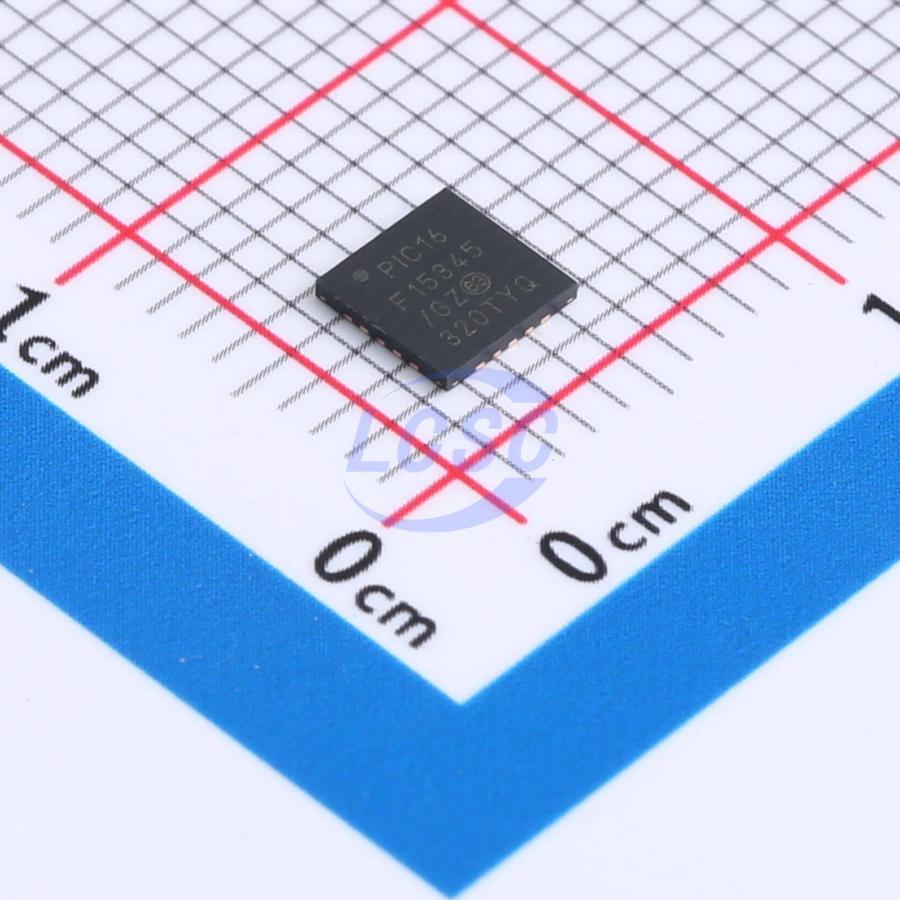

PIC16F15345-I/GZ

PIC16(L)F153XX microcontrollers feature Intelligent Analog, Core Independent Peripherals (CIPs) and communication peripherals combined with eXtreme Low-Power (XLP) for a wide range of general purpose and low-power applications. The family features PWMs, multiple communication, temperature sensor and memory features like Memory Access Partition (MAP) and Device Information Area (DIA). The products are offered in a broad range of pin counts from 8 to 48 pins, to support customers in various applications.

Key features

• C Compiler Optimized RISC Architecture
• Only 49 Instructions
• Operating Speed: - DC – 32 MHz clock input - 125 ns minimum instruction cycle
• Interrupt Capability
• 16-Level Deep Hardware Stack
• Timers: - 8-bit (TMR2) with Hardware Limit Timer (HLT) Extension - 16-bit (TMR0/1)
• Low-Current Power-on Reset (POR)
• Configurable Power-up Timer (PWRTE)
• Brown-out Reset (BOR) with Fast Recovery
• Low-Power BOR (LPBOR) Option
• Windowed Watchdog Timer (WWDT): - Variable prescaler selection - Variable window size selection - All sources configurable in hardware or software
• Programmable Code Protection
• Up to 28 KB Flash Program Memory
• Up to 2 KB Data SRAM Memory
• Direct, Indirect and Relative Addressing modes
• Memory Access Partition (MAP): - Write protect - Customizable Partition
• Device Information Area (DIA)
• Operating Voltage Range: - 1.8V to 3.6V (PIC16LF153XX) - 2.3V to 5.5V (PIC16F153XX)
• Temperature Range: - Industrial: -40℃ to 85℃ - Extended: -40℃ to 125℃
• Doze mode: - Ability to run CPU core slower than the system clock
• Idle mode: - Ability to halt CPU core while internal peripherals continue operating
• Sleep mode: - Lowest power consumption
• Peripheral Module Disable (PMD): - Ability to disable hardware module to minimize power consumption of unused peripherals
• Sleep mode: 50 nA @1.8V, typical
• Watchdog Timer: 500 nA @ 1.8V, typical
• Secondary Oscillator: 500 nA @ 32 kHz
• Operating Current: - 8 uA @ 32 kHz, 1.8V, typical - 32 uA/MHz @1.8V, typical
• Four Configurable Logic Cells (CLCs): - Integrated combinational and sequential logic
• Complementary Waveform Generator (CWG): - Rising and Falling edge dead-band control - Full-bridge, half-bridge, 1-channel drive - Multiple signal sources
• Two Capture/Compare/PWM (CCP) modules
• Four 10-bit PWMs
• Numerically Controlled Oscillator (NCO): - Generates true linear frequency control and increased frequency resolution - Input Clock: 0 Hz < fNCO < 32 MHz - Resolution: fNCO/220
• Peripheral Pin Select (PPS): - Enables pin mapping of digital I/O
• Communication: - Up to two EUSART, RS-232, RS-485, LIN compatible Up to two SPI - Two I2C, SMBus, PMBus compatible Up to 44 I/O Pins - Individually programmable pull-ups slew rate control Interrupt-on-Change with edge-select
• Analog-to-Digital Converter (ADC): - 10-bit with up to 43 external channels - Conversion available during Sleep
• Two Comparator: - Low-Power/High-Speed mode - Fixed Voltage Reference at (non)inverting input(s) - Comparator outputs externally accessible
• 5-Bit Digital-to-Analog Converter (DAC): - 5-bit resolution, rail-to-rail - Positive Reference Selection - Unbuffered I/O pin output - Internal connections to ADCs and comparators
• Voltage Reference: - Fixed Voltage Reference with 1.024V, 2.048V and 4.096V output level
• High-Precision Internal Oscillator: - Selectable frequency range up to 32 MHz - ±1% at calibration (nominal)
• ×2/×4 PLL with Internal and External Sources
• Low-Power Internal 32 kHz Oscillator (LFINTOSC)
• External 32 kHz Crystal Oscillator (SOCS)
• External Oscillator Block with: - Three crystal/resonator modes up to 20 MHz - Three external clock modes up to 20 MHz - Fail-Safe Clock Monitor - Allows for safe shutdown if peripherals clock stops - Oscillator Start-up Timer (OST) - Ensures stability of crystal oscillator sources
