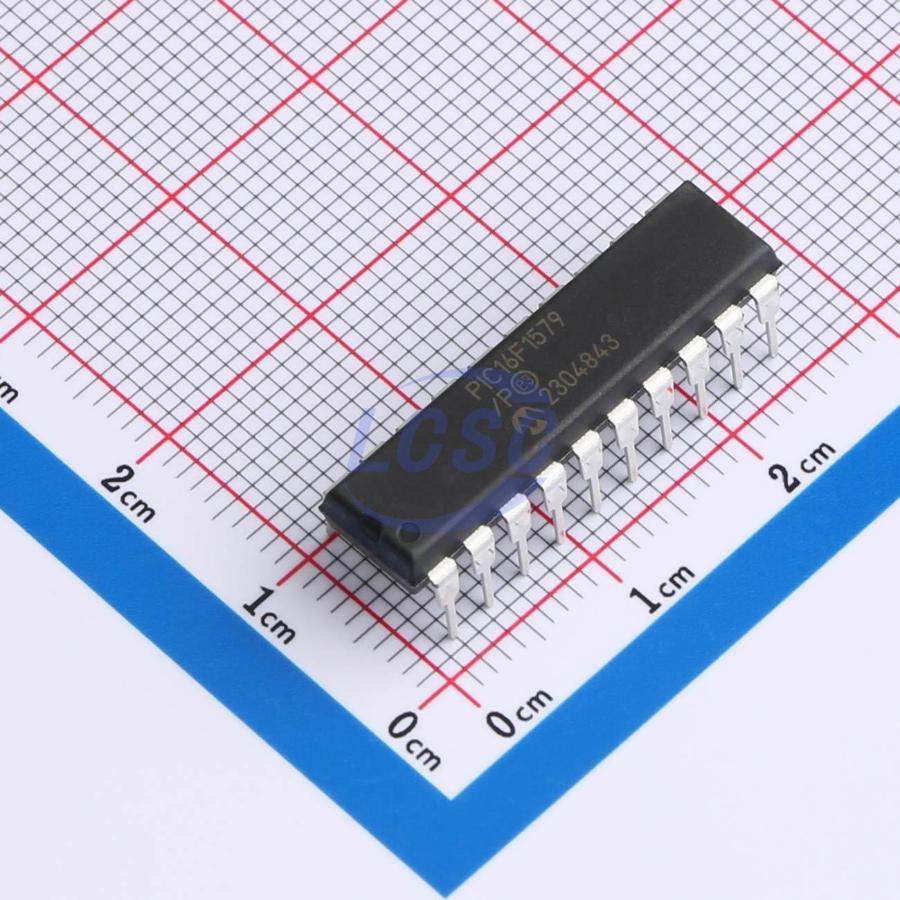

PIC16F1579-I/P

PIC16(L)F1574/5/8/9 microcontrollers combine the capabilities of 16-bit PWMs with Analog to suit a variety of applications. These devices deliver four 16-bit PWMs with independent timers for applications where high resolution is needed, such as LED lighting, stepper motors, power supplies and other general purpose applications. The core independent peripherals (16-bit PWMs, Complementary Waveform Generator), Enhanced Universal Synchronous Asynchronous Receiver Transceiver (EUSART) and Analog (ADCs, Comparator and DAC) enable closed-loop feedback and communication for use in multiple market segments. The Peripheral Pin Select (PPS) functionality allows for I/O pin remapping of the digital peripherals for increased flexibility. The EUSART peripheral enables the communication for applications such as LIN.

Applications

• LED lighting
• stepper motors
• power supplies
• LIN applications

Key features

• C Compiler Optimized RISC Architecture
• Only 49 Instructions
• Operating Speed:
• DC – 32 MHz clock input
• 125 ns minimum instruction cycle
• Interrupt Capability
• 16-Level Deep Hardware Stack
• Two 8-Bit Timers
• One 16-Bit Timer
• Four additional 16-Bit Timers available using the 16-Bit PWMs
• Power-on Reset (POR)
• Power-up Timer (PWRT)
• Low-Power Brown-out Reset (LPBOR)
• Programmable Watchdog Timer (WDT) up to 256s
• Programmable Code Protection
• Up to 14 KB Flash Program Memory
• Up to 1024 Bytes Data SRAM Memory
• Direct, Indirect and Relative Addressing modes
• High-Endurance Flash Data Memory (HEF)
• 128 bytes if nonvolatile data storage
• 100k erase/write cycles
• Operating Voltage Range:
• 1.8V to 3.6V (PIC16LF1574/5/8/9)
• 2.3V to 5.5V (PIC16F1574/5/8/9)
• Temperature Range:
• Industrial: -40℃ to 85℃
• Extended: -40℃ to 125℃
• Internal Voltage Reference module
• In-Circuit Serial Programming (ICSP) via Two Pins
• Sleep mode: 20 nA @1.8V, typical
• Watchdog Timer: 260 nA @1.8V, typical
• Operating Current:
• 30 µA/MHz @ 1.8V, typical
• 16-Bit PWM:
• Four 16-bit PWMs with independent timers
• Multiple output modes (standard, centeraligned, set and toggle on register match)
• User settings for phase, duty cycle, period, offset and polarity
• 16-bit timer capability
• Interrupts generated based on timer matches with offset, duty cycle, period and phase registers
• Complementary Waveform Generator (CWG):
• Rising and falling edge dead-band control
• Multiple signal sources
• Enhanced Universal Synchronous Asynchronous Receiver Transceiver (EUSART):
• Supports LIN applications
• Peripheral Pin Select (PPS):
• I/O pin remapping of digital peripherals
• Up to 18 I/Os
• Individually Selectable Weak Pull-ups
• Interrupt-on-Change Pins Option with EdgeSelectable Option
• 10-Bit Analog-to-Digital Converter (ADC):
• Up to 12 external channels
• Conversion available during Sleep
• Two Comparators:
• Low-Power/High-Speed modes
• Fixed Voltage Reference at (non)inverting input(s)
• Comparator outputs externally accessible
• Synchronization with Timer1 clock source
• Software hysteresis enable
• 5-bit resolution, rail-to-rail
• Positive Reference Selection
• Unbuffered I/O pin output
• Internal connections to ADCs and comparators
• Voltage Reference:
• Fixed Voltage Reference with 1.024V, 2.048V and 4.096V output levels
• Precision Internal Oscillator:
• Factory calibrated ±1%, typical
• Software-selectable clock speeds from 31 kHz to 32 MHz
• External Oscillator Block with:
• Two external clock modes up to 32 MHz
• Digital Oscillator Input Available
