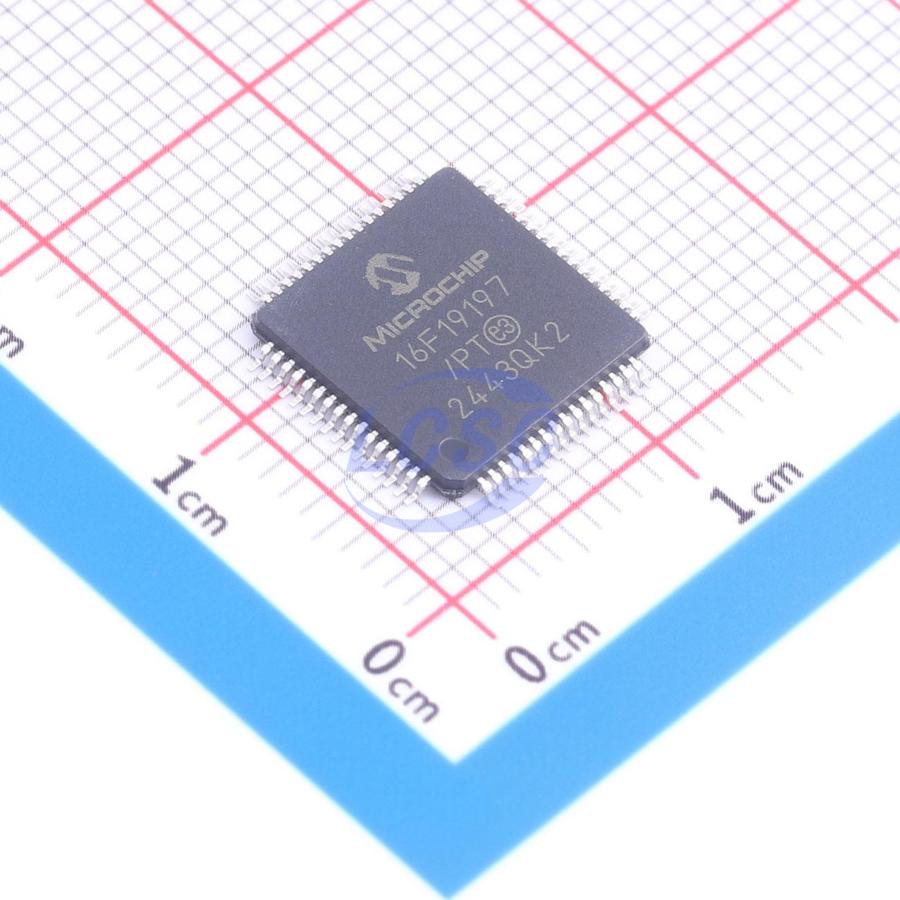

PIC16F19197T-I/PT

PIC16(L)F19195/6/7 microcontrollers offer eXtreme Low-Power (XLP) LCD drive coupled with Core Independent Peripherals (CIPs) and Intelligent Analog. They are especially suited for battery-powered LCD applications due to an integrated charge pump, high current I/O drive for backlighting, and battery backup of the Real-Time Clock/Calendar (RTCC). Active clock tuning of the HFINTOSC provides a highly accurate clock source over voltage and temperature. The family also features a new 12-bit ADC controller which can automate Capacitive Voltage Divider (CVD) techniques for advanced touch sensing, averaging, filtering, oversampling and automatic threshold comparison. Other new features include low-power Idle and Doze modes, Device Information Area (DIA), and Memory Access Partition (MAP). These low-power products are available in 64 pins to support the customer in various LCD and general purpose applications.

Key features

• C Compiler Optimized RISC Architecture
• Operating Speed:
• DC – 32 MHz clock input
• 125 ns minimum instruction cycle
• Interrupt Capability
• 16-Level Deep Hardware Stack
• Timers:
• Two 8-bit (TMR2/4) Timer with Hardware Limit Timer Extension (HLT) 16-bit (TMR0/1)
• Low-Current Power-on Reset (POR)
• Configurable Power-up Timer (PWRTE)
• Brown-out Reset (BOR) with Fast Recovery
• Low-Power BOR (LPBOR) Option
• Windowed Watchdog Timer (WWDT):
• Variable prescaler selection
• Variable window size selection
• All sources configurable in hardware or software
• Programmable Code Protection
• Up to 56KB Flash Program Memory
• Up to 4KB Data SRAM Memory
• 256 bytes DataEE
• Direct, Indirect and Relative Addressing modes
• Memory Access Partition (MAP):
• Bootloader write-protect
• Custom partition
• Device Information Area (DIA):
• Temp sensor factory calibrated data
• Fixed Voltage Reference
• Device ID
• Operating Voltage Range:
• 1.8V to 3.6V (PIC16LF19195/6/7)
• 2.3V to 5.5V (PIC16F19195/6/7)
• Temperature Range:
• Industrial: -40℃ to 85℃
• Extended: -40℃ to 125℃
• Doze mode: Ability to run CPU core slower than the system clock
• Idle mode: Ability to halt CPU core while internal peripherals continue operating
• Sleep mode: Lowest power consumption
• Peripheral Module Disable (PMD): Ability to disable hardware module to minimize power consumption of unused peripherals
• Sleep mode: 50 nA @1.8V, typical
• Watchdog Timer: 500 nA @ 1.8V, typical
• Secondary Oscillator: 500 nA @32 kHz
• Operating Current:
• 8 μA @ 32 kHz, 1.8V, typical
• 32 μA/MHz @ 1.8V, typical
• LCD Controller:
• Up to 360 segments
• Charge pump for low-voltage operation
• Contrast control
• Four Configurable Logic Cell Modules (CLC):
• Integrated combinational and sequential logic
• Complementary Waveform Generator (CWG):
• Rising and falling edge dead-band control
• Full-bridge, half-bridge, 1-channel drive
• Multiple signal sources
• Two Capture/Compare/PWM (CCP) module
• Two 10-Bit PWMs
• Peripheral Pin Select (PPS):
• Enables pin mapping of digital I/O
• Communication:
• Two EUSART, RS-232, RS-485, LIN compatible
• One SPI/I2C, SMBus, PMBus compatible
• Up to 59 I/O Pins:
• Individually programmable pull-ups
• Slew rate control
• Interrupt-on-change with edge-select
• Input level selection control (ST or TTL)
• Digital open-drain enable
• Analog-to-Digital Converter with Computation (ADC2):
• 12-bit with up to 45 external channels
• Automates math functions on input signals: averaging, filter calculations, oversampling and threshold comparison
• Conversion available during Sleep
• Two Comparators:
• (1) Low-Power Clocked Comparator (1) High-Speed Comparator
• Fixed Voltage Reference at (non)inverting input(s)
• Comparator outputs externally accessible
• 5-Bit Digital-to-Analog Converter (DAC):
• 5-bit resolution, rail-to-rail
• Positive Reference Selection
• Unbuffered I/O pin output
• Internal connections to ADCs and comparators
• Voltage Reference:
• Fixed Voltage Reference with 1.024V, 2.048V and 4.096V output levels
• Zero-Cross Detect Module:
• AC high-voltage zero-crossing detection for simplifying TRIAC control
• Synchronized switching control and timing
• High-Precision Internal Oscillator:
• Active Clock Tuning of HFINTOSC over voltage and temperature (ACT)
• Selectable frequency range up to 32 MHz ±1% typical
• ×2/×4 PLL with Internal and External Sources
• Low-Power Internal 31 kHz Oscillator (LFINTOSC)
• External 32 kHz Crystal Oscillator (SOSC)
• Oscillator Start-up Timer (OST)
• Ensures stability of crystal oscillator source
• External Oscillator Block with:
• Three external clock modes up to 32 MHz
• Fail-Safe Clock Monitor:
• Allows for safe shutdown if peripherals clock stops
