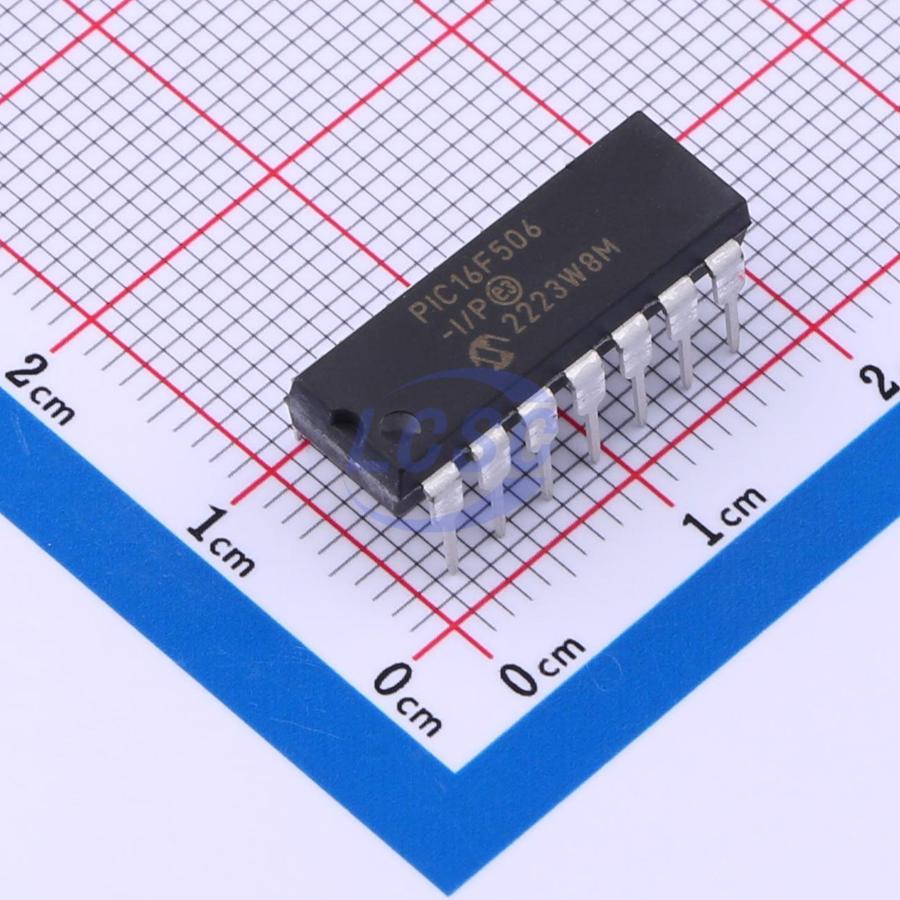

PIC16F506-I/P

Key features

• Only 33 single-word instructions to learn
• All single-cycle instructions except for program branches which are two-cycle
• Two-level deep hardware stack
• Direct, Indirect and Relative Addressing modes for data and instructions
• Operating speed: DC – 20 MHz clock input (PIC16F506); DC – 200 ns instruction cycle (PIC16F506); DC – 8 MHz clock input (PIC12F510); DC – 500 ns instruction cycle (PIC12F510)
• 4/8 MHz precision internal oscillator, factory calibrated to ±1%
• In-Circuit Serial Programming (ICSP)
• In-Circuit Debugging (ICD) support
• Power-on Reset (POR)
• Device Reset Timer (DRT)
• Watchdog Timer (WDT) with dedicated on-chip RC oscillator for reliable operation
• Programmable code protection
• Multiplexed MCLR input pin
• Internal weak pull-ups on I/O pins
• Power-saving Sleep mode
• Wake-up from Sleep on-pin change
• Selectable oscillator options: INTRC: 4/8 MHz precision Internal RC oscillator; EXTRC: External low-cost RC oscillator; XT: Standard crystal/resonator; HS: High-speed crystal/resonator (PIC16F506 only); LP: Power-saving, low-frequency crystal; EC: High-speed external clock input (PIC16F506 only)
• Operating current: 170 μA @ 2V, 4 MHz, typical
• Standby current: 100 nA @ 2V, typical
• Low-power, high-speed Flash technology: 100,000 Flash endurance; >40 -year retention
• Fully static design
• Wide operating voltage range: 2.0V to 5.5V
• Wide temperature range: Industrial: -40°C to +85°C; Extended: -40°C to +125°C
• PIC12F510:
• 6 I/O pins: 5 I/O pins with individual direction control; 1 input-only pin; High current sink/source for direct LED drive
• 8-bit real-time clock/counter (TMR0) with 8-bit programmable prescaler
• One Analog Comparator: Comparator inputs and output accessible externally; On-chip 0.6V fixed absolute voltage reference (VREF); Wake-up from Sleep on comparator change
• Analog-to-Digital (A/D) Converter: 8-bit resolution; 4-channel inputs: 1-channel dedicated to internal absolute voltage reference conversion
• PIC16F506:
• 12 I/O pins: 11 I/O pins with individual direction control; 1 input-only pin; High current sink/source for direct LED drive; Wake-on-change; Weak pull-ups
• 8-bit real-time clock/counter (TMR0) with 8-bit programmable prescaler
• Two Analog Comparators: Comparator inputs and output accessible externally; One comparator with 0.6V fixed on-chip absolute voltage reference (VREF); One comparator with programmable on-chip voltage reference (VREF)
• Analog-to-Digital (A/D) Converter: 8-bit resolution; 4-channel inputs: 1-channel dedicated to internal absolute voltage reference conversion
