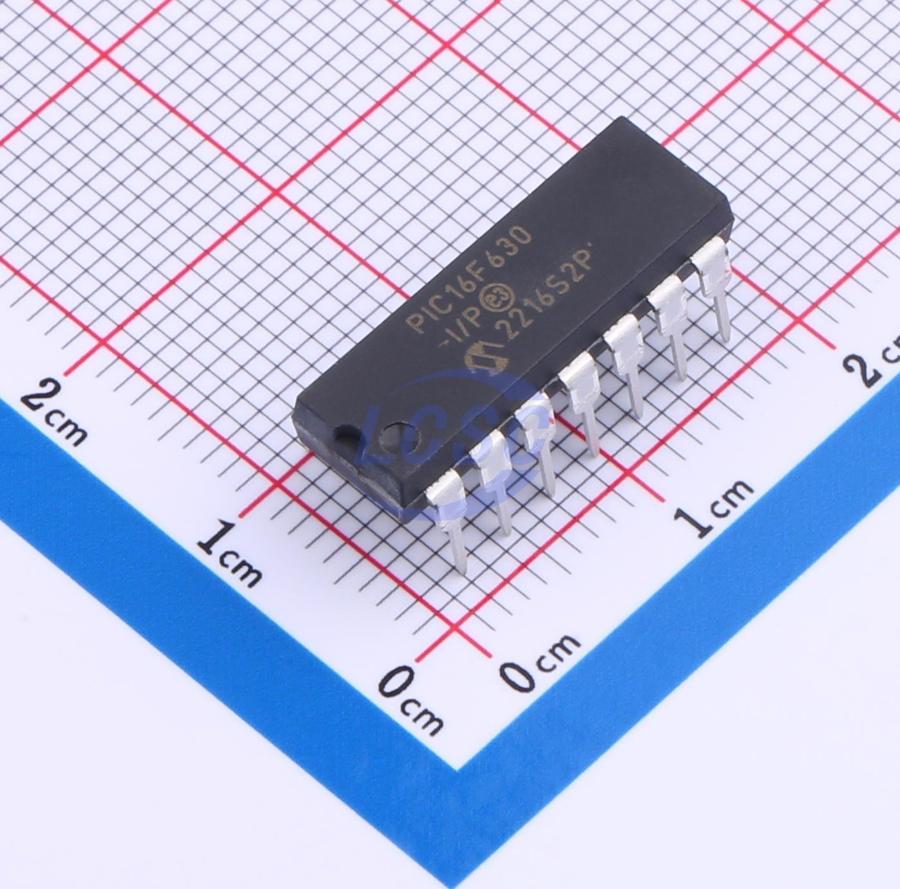

PIC16F630-I/P

Key features

• Only 35 Instructions to Learn - All single-cycle instructions except branches
• Operating Speed: - DC – 20 MHz oscillator/clock input - DC – 200 ns instruction cycle
• Interrupt Capability
• 8-level Deep Hardware Stack
• Direct, Indirect, and Relative Addressing modes
• Internal and External Oscillator Options - Precision Internal 4 MHz oscillator factory calibrated to ±1% - External Oscillator support for crystals and resonators - 5 μs wake-up from Sleep, 3.0V, typical
• Power-Saving Sleep mode
• Wide Operating Voltage Range – 2.0V to 5.5V
• Industrial and Extended Temperature Range
• Low-Power Power-on Reset (POR)
• Power-up Timer (PWRT) and Oscillator Start-up Timer (OST)
• Brown-out Detect (BOD)
• Watchdog Timer (WDT) with Independent Oscillator for Reliable Operation
• Multiplexed MCLR/Input-pin
• Interrupt-on-Pin Change
• Individual Programmable Weak Pull-ups
• Programmable Code Protection
• High Endurance Flash/EEPROM Cell - 100,000 write Flash endurance - 1,000,000 write EEPROM endurance - Flash/data EEPROM retention: >40 years
• Standby Current: - 1 nA @ 2.0V, typical
• Operating Current: - 8.5 μA @ 32 kHz, 2.0V, typical - 100 μA @ 1 MHz, 2.0V, typical
• Watchdog Timer Current - 300 nA @ 2.0V, typical
• Timer1 Oscillator Current: - 4 μA @ 32 kHz, 2.0V, typical
• 12 I/O Pins with Individual Direction Control
• High Current Sink/Source for Direct LED Drive
