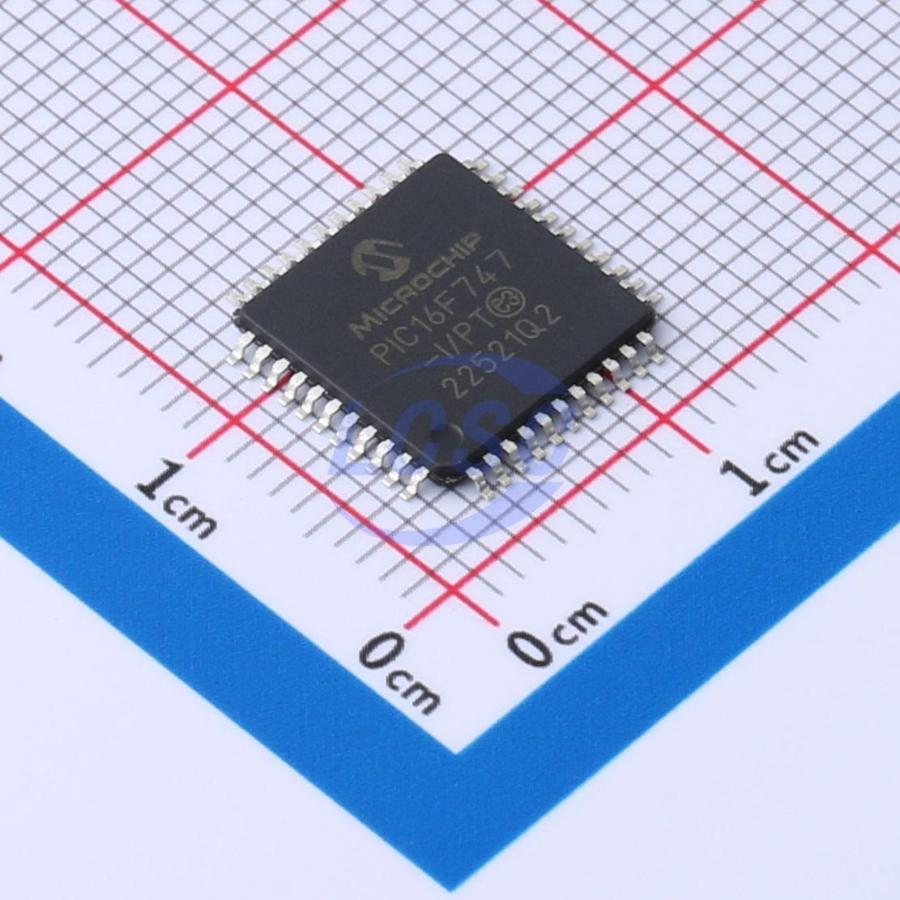

PIC16F747-I/PT

Key features

• Power-Managed modes: - Primary Run (XT, RC oscillator, 76 μAᵢ, 1 MHz, 2V) - RC_RUN (7 μA, 31.25 kHz, 2V) - SEC_RUN (μAᵢ, 32 kHz, 2V) - Sleep (0.1 μA, 2V)
• Timer1 Oscillator (1.8 μA, 32 kHz, 2V)
• Watchdog Timer (0.7 μA, 2V)
• Two-Speed Oscillator Start-up
• Three Crystal modes: - LP, XT, HS (up to 20 MHz)
• Two External RC modes
• One External Clock mode: - ECIO (up to 20 MHz)
• Internal Oscillator Block: - 8 user-selectable frequencies (31 kHz, 125 kHz, 250 kHz, 500 kHz, 1 MHz, 2 MHz, 4 MHz, 8 MHz)
• 10-bit, up to 14-channel Analog-to-Digital Converter: - Programmable Acquisition Time - Conversion available during Sleep mode
• Dual Analog Comparators
• Programmable Low-Current Brown-out Reset (BOR) Circuitry and Programmable Low-Voltage Detect (LVD)
• High Sink/Source Current: 25 mA
• Two 8-bit Timers with Prescaler
• Timer1/RTC module: - 16-bit timer/counter with prescaler - Can be incremented during Sleep via external 32 kHz watch crystal
• Master Synchronous Serial Port (MSSP) with 3-wire SPI and I²C (Master and Slave) modes
• Addressable Universal Synchronous Asynchronous Receiver Transmitter (AUSART)
• Three Capture, Compare, PWM modules: - Capture is 16-bit, max. resolution is 12.5 ns Compare is 16-bit, max. resolution is 200 ns - PWM max. resolution is 10 bits
• Parallel Slave Port (PSP) – 40/44-pin devices only
• Fail-Safe Clock Monitor for protecting critical applications against crystal failure
• Two-Speed Start-up mode for immediate code execution
• Power-on Reset (POR), Power-up Timer (PWRT) and Oscillator Start-up Timer (OST)
• Programmable Code Protection
• Processor Read Access to Program Memory
• Power-Saving Sleep mode
• In-Circuit Serial Programming (ICSP) via two pins
• MPLAB In-Circuit Debug (ICD) via two pins
• MCLR pin function replaceable with input only pin
