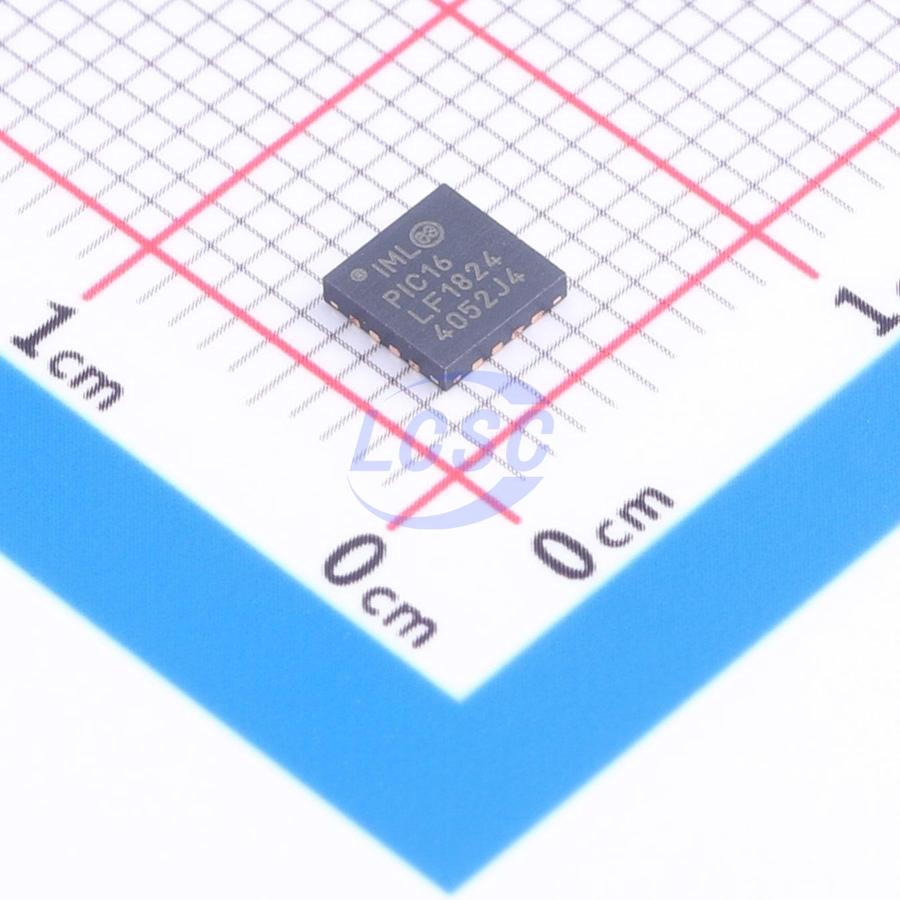

PIC16LF1824T-I/ML

Key features

• Only 49 Instructions to learn
• Operating Speed:
• DC – 32 MHz clock input
• DC – 125 ns instruction cycle
• Interrupt Capability with Automatic Context Saving
• 16-Level Deep Hardware Stack with Optional Overflow/Underflow Reset
• Direct, Indirect and Relative Addressing modes:
• Two full 16-bit File Select Registers (FSRs)
• FSRs can read program and data memory
• Precision Internal Oscillator:
• Factory calibrated to ±1%, typical
• Software selectable frequency range from 32 MHz to 31 kHz
• 31 kHz Low-Power Internal Oscillator
• External Oscillator Block with:
• 4 crystal/resonator modes up to 32 MHz using 4xPLL
• 3 external clock modes up to 32 MHz
• 4x Phase Locked Loop (PLL)
• Fail-Safe Clock Monitor
• Two-Speed Start-up
• Power-Saving Sleep mode
• Power-on Reset (POR)
• Power-up Timer (PWRT)
• Oscillator Start-Up Timer (OST)
• Brown-out Reset (BOR) with Selectable Trip Point
• Extended Watchdog Timer (WDT)
• In-Circuit Serial Programming via two pins
• In-Circuit Debug (ICD) via Two Pins
• Enhanced Low-Voltage Programming (LVP)
• Operating Voltage Range:
• 1.8V to 3.6V (PIC1XLF182X)
• 1.8V to 5.5V (PIC1XF182X)
• Programmable Code Protection
• Self-Programmable under Software Control
• Standby Current (PIC1XLF182X):
• 30 nA @ 1.8V, typical
• Operating Current (PIC1XLF182X):
• 75 μA @ 1 MHz, 1.8V, typical
• Low-Power Watchdog Timer Current (PIC1XLF182X):
• 500 nA @ 1.8V, typical
• Up to 17 I/O Pins and 1 Input-only Pin:
• High current sink/source for LED drivers
• Individually programmable interrupt-onchange pins
• Individually programmable weak pull-ups
• Timer0: 8-Bit Timer/Counter with 8-Bit Programmable Prescaler
• Enhanced Timer1:
• 16-bit timer/counter with prescaler
• External Gate Input mode
• Dedicated low-power 32 kHz oscillator driver
• Up to three Timer2 modules (Timer2,4,6): 8-Bit Timer/Counter with 8-Bit Period Register, Prescaler and Postscaler
• Up to two Enhanced Capture, Compare, PWM modules (ECCP):
• Software selectable time-bases
• Auto-shutdown and auto-restart
• PWM steering
• Up to two Capture, Compare, PWM modules (CCP):
• Software selectable time-bases
• Up to two Master Synchronous Serial Port (MSSP) with SPI and I²C with:
• 7-bit address masking
• SMBus/PMBus compatibility
• Enhanced Universal Synchronous Asynchronous Receiver Transmitter (EUSART):
• RS-232, RS-485 and LIN compatible
• Auto-Baud Detect
• Auto-wake-up on start
• SR Latch (Integrated 555 Timer):
• Multiple Set/Reset input options
• Analog-to-Digital Converter (ADC):
• 10-bit resolution
• Up to 12 channels
• Up to 2 Comparators:
• Rail-to-rail inputs
• Power mode control
• Software controllable hysteresis
• Voltage Reference module:
• Fixed voltage reference (FVR) with 1.024V, 2.048V and 4.096V output levels
• 5-bit rail-to-rail resistive DAC with positive and negative reference selection
• Capacitive Touch oscillator module:
• Up to 12 channels
• Data Signal Modulator:
• Select modulator and carrier sources from various module outputs.
