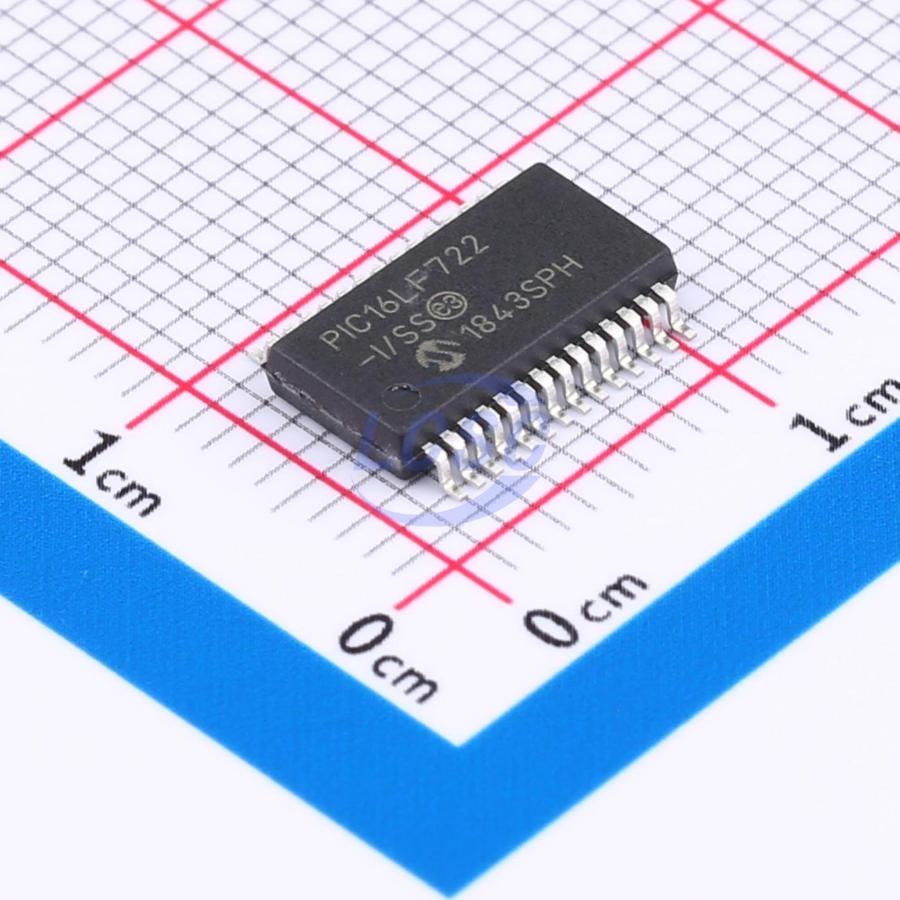

PIC16LF722-I/SS

Key features

• Only 35 Instructions to Learn: All single-cycle instructions except branches
• Operating Speed: DC – 20 MHz oscillator/clock input, DC – 200 ns instruction cycle
• Up to 8K x 14 Words of Flash Program Memory
• Up to 368 Bytes of Data Memory (RAM)
• Interrupt Capability
• 8-Level Deep Hardware Stack
• Direct, Indirect and Relative Addressing modes
• Processor Read Access to Program Memory
• Pinout Compatible to other 28/40-pin PIC16CXXX and PIC16FXXX Microcontrollers
• Precision Internal Oscillator: 16 MHz or 500 kHz operation, Factory calibrated to ±1% (typical), Software tunable, Software selectable ÷1, ÷2, ÷4 or ÷8 divider
• 1.8V-5.5V Operation – PIC16F722/3/4/6/7
• 1.8V-3.6V Operation – PIC16LF722/3/4/6/7
• Power-on Reset (POR), Power-up Timer (PWRT) and Oscillator Start-up Timer (OST)
• Brown-out Reset (BOR): Selectable between two trip points, Disable in Sleep option
• Programmable Code Protection
• In-Circuit Serial Programming (ICSP) via Two Pins
• Multiplexed Master Clear with Pull-up/Input Pin
• Industrial and Extended Temperature Range
• High-Endurance Flash Cell: 1,000 write Flash endurance (typical), Flash retention: >40 years
• Power-Saving Sleep mode
• Sleep Mode: 20 nA (PIC16LF722/3/4/6/7 with XLP)
• Watchdog Timer: 500 nA (PIC16LF722/3/4/6/7 with XLP)
• Timer1 Oscillator: 600 nA @ 32 kHz (PIC16LF722/3/4/6/7 with XLP)
• A/D Converter: 8-bit resolution and up to 14 channels, Conversion available during Sleep, Selectable 1.024/2.048/4.096V voltage reference
• On-chip 3.2V Regulator (PIC16F722/3/4/6/7 devices only)
• Up to 35 I/O Pins and One Input-only Pin: High-current source/sink for direct LED drive, Interrupt-on-pin change, Individually programmable weak pull-ups
• Timer0: 8-Bit Timer/Counter with 8-Bit Prescaler
• Enhanced Timer1: Dedicated low-power 32 kHz oscillator, 16-bit timer/counter with prescaler, External Gate Input mode with Toggle and Single Shot modes, Interrupt-on-gate completion
• Timer2: 8-Bit Timer/Counter with 8-Bit Period Register, Prescaler and Postscaler
• Two Capture, Compare, PWM (CCP) Modules: 16-bit Capture, max. resolution 12.5 ns, 16-bit Compare, max. resolution 200 ns, 10-bit PWM, max. frequency 20 kHz
• Addressable Universal Synchronous Asynchronous Receiver Transmitter (AUSART)
• Synchronous Serial Port (SSP): SPI (Master/Slave), I2C (Slave) with Address Mask
• mTouch Sensing Oscillator Module: Up to 16 input channels
