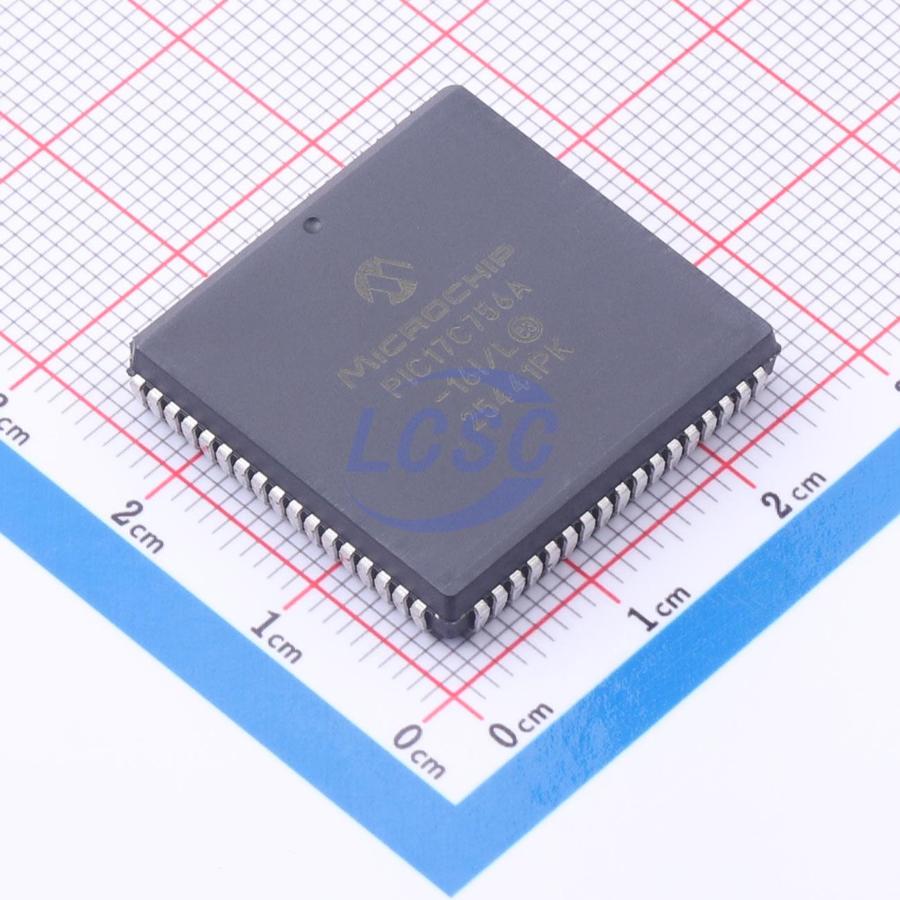

PIC17C756A-16I/L

Key features

• Only 58 single word instructions to learn
• All single cycle instructions (121 ns), except for program branches and table reads/writes which are two - cycle
• Operating speed: DC - 33 MHz clock input, DC - 121 ns instruction cycle
• 8×8 Single - Cycle Hardware Multiplier
• Interrupt capability
• 16 level deep hardware stack
• Direct, indirect, and relative addressing modes
• Internal/external program memory execution, capable of addressing 64 K×16 program memory space
• Up to 66 I/O pins with individual direction control
• 10 - bit, multi - channel Analog - to - Digital converter
• High current sink/source for direct LED drive
• Four capture input pins - Captures are 16 - bit, max resolution 121 ns
• Three PWM outputs (resolution is 1 to 10 - bits)
• TMR0: 16 - bit timer/counter with 8 - bit programmable prescaler
• TMR1: 8 - bit timer/counter
• TMR2: 8 - bit timer/counter
• TMR3: 16 - bit timer/counter
• Two Universal Synchronous Asynchronous Receiver Transmitters (USART/SCI) with independent baud rate generators
• Synchronous Serial Port (SSP) with SPI and I2C modes (including I²C Master mode)
• Power - on Reset (POR), Power - up Timer (PWRT) and Oscillator Start - up Timer (OST)
• Watchdog Timer (WDT) with its own on - chip RC oscillator for reliable operation
• Brown - out Reset
• Code protection
• Power saving SLEEP mode
• Selectable oscillator options
• Low power, high speed CMOS EPROM technology
• Fully static design
• Wide operating voltage range (3.0V to 5.5V)
• Commercial and Industrial temperature ranges
• Low power consumption: <5 mA @ 5V, 4 MHz; 100 μA typical @ 4.5V, 32 kHz; <1 μA typical standby current @ 5V
