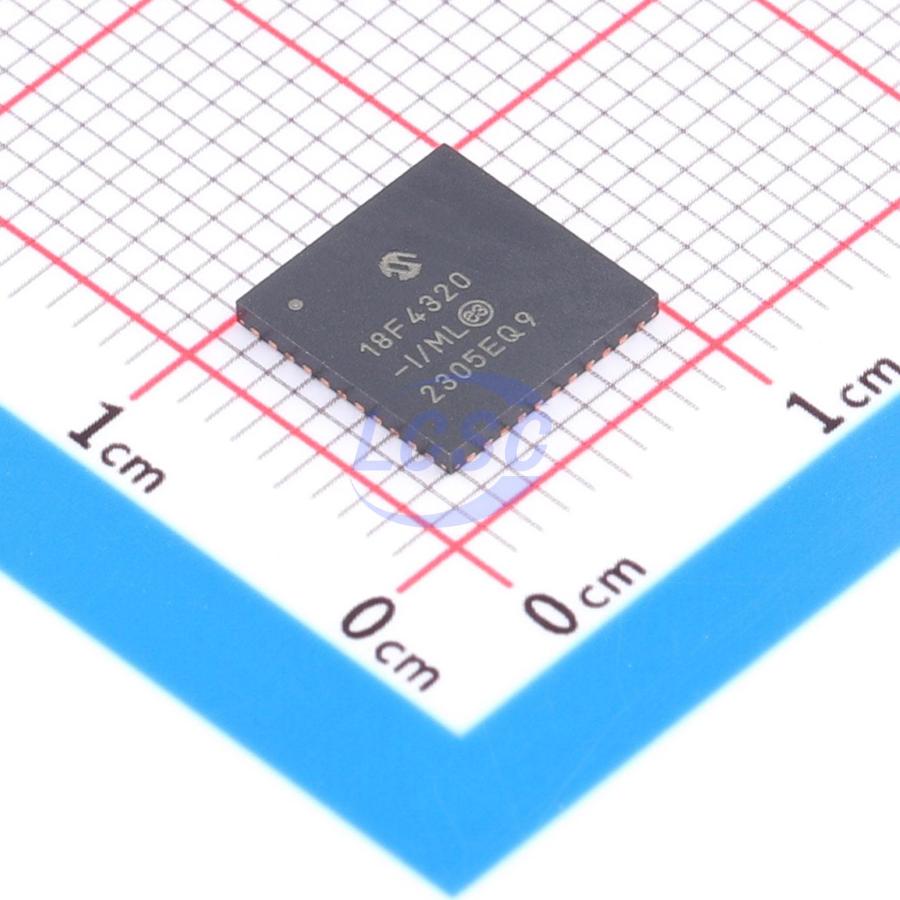

PIC18F4320-I/ML

Key features

• Power-Managed modes:
• Run: CPU on, peripherals on
• Idle: CPU off, peripherals on
• Sleep: CPU off, peripherals off
• Power Consumption modes:
• PRI_RUN: 150 μA, 1 MHz, 2V
• PRI_IDLE: 37 μA, 1 MHz, 2V
• SEC_RUN: 14 μA, 32 kHz, 2V
• SEC_IDLE: 5.8 μA, 32 kHz, 2V
• RC_RUN: 110 μA, 1 MHz, 2V
• RC_IDLE: 52 μA, 1 MHz, 2V
• Sleep: 0.1 μA, 1 MHz, 2V
• Timer1 Oscillator: 1.1 μA, 32 kHz, 2V
• Watchdog Timer: 2.1 μA
• Two-Speed Oscillator Start-up
• Four Crystal modes:
• LP, XT, HS: up to 25 MHz
• HSPLL: 4 - 10 MHz (16 - 40 MHz internal)
• Two External RC modes, Up to 4 MHz
• Two External Clock modes, Up to 40 MHz
• Internal Oscillator Block:
• 8 user-selectable frequencies: 31 kHz, 125 kHz, 250 kHz, 500 kHz, 1 MHz, 2 MHz, 4 MHz, 8 MHz
• 125 kHz - 8 MHz calibrated to 1%
• Two modes select one or two I/O pins
• OSCTUNE – Allows user to shift frequency
• Secondary Oscillator using Timer1 x 32 kHz
• Fail-Safe Clock Monitor - Allows for safe shutdown if peripheral clock stops
• High-Current Sink/Source 25 mA/25 mA
• Three External Interrupts
• Up to 2 Capture/Compare/PWM (CCP) modules:
• Capture is 16-bit, max. resolution is 6.25 ns (TCY/16)
• Compare is 16-bit, max. resolution is 100 ns (TCY)
• PWM output: PWM resolution is 1 to 1
