MICROCHIP

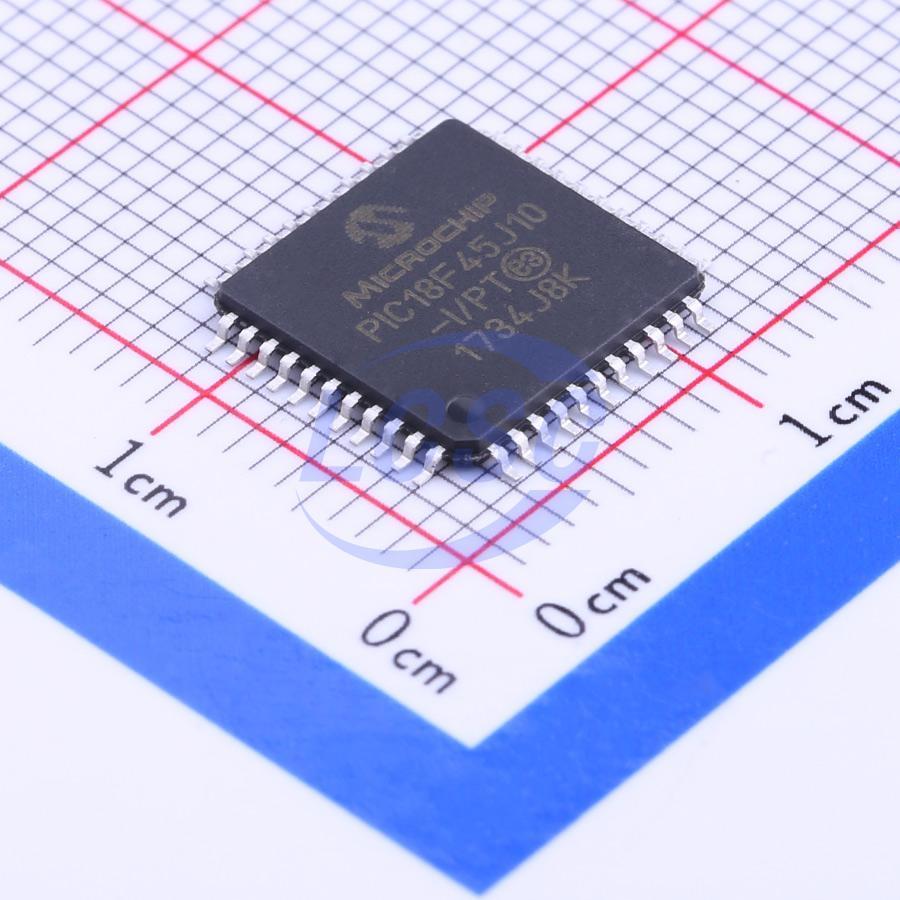

PIC18F45J10-I/PT

PIC 8 Bit 40MHz TQFP-44(10x10) Microcontrollers RoHS

TQFP-44(10x10)ROHS3 CompliantActive

Pin High-Performance RISC Microcontrollers with nanoWatt Technology

Manufacturer: MICROCHIP
Manufacturer part #: PIC18F45J10-I/PT
Store part #: C11332
Package / case: TQFP-44(10x10)
Category: Microcontrollers
Packaging: Tray

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

28 in stock

#C11332

Stock & price checked 2 days ago

Quantity	Unit price	Pack price
1+	₹651.02	₹651.02
10+	₹581.06	₹5,810.60
30+	₹539.56	₹16,186.80
100+	₹497.62	₹49,762.00
500+	₹478.28	₹2,39,140.00
1,000+	₹469.36	₹4,69,360.00

Quantity (min 1)

1 × ₹651.02

₹651.02

excl. GST

₹768.20 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 160 per tray

PIC18F45J10-I/PT

₹651.02 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

ADC (Bit): 10bit
Number of I/O: 32
Operating Temperature: -40℃~+85℃
Voltage - Supply: 2.7V~3.6V
Program Memory Type: FLASH
Program Storage Size: 32KB
CPU Core: PIC
Core Size: 8 Bit
CPU Maximum Speed: 40MHz
Oscillator Type: Built-in

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: 3A991A2
Packaging: Tray
Standard pack: 160 / Tray
Sold per: Piece
Minimum order: 1
Unit weight: 1.499 g

Overview

Key features

Operating voltage range: 2.0V to 3.6V
5.5V tolerant inputs (digital pins only)
On-chip 2.5V voltage regulator
Low-power, high-speed CMOS Flash technology
C compiler optimized architecture:
Optional extended instruction set designed to optimize re-entrant code
Interrupt priority levels
8×8 single-cycle hardware multiplier
Enhanced Watchdog Timer (WDT):
Programmable period from 4 ms to 131s
Single-supply In-Circuit Serial Programming (ICSP) via two pins
In-Circuit Debugging (ICD) via two pins with three breakpoints
Power management modes:
Run: CPU on, peripherals on
Idle: CPU off, peripherals on
Sleep: CPU off, peripherals off
Flexible oscillator structure:
Two crystal modes up to 40 MHz
Two external clock modes up to 40 MHz
Internal 31 kHz oscillator
Secondary oscillator using Timer1 @ 32 kHz
Two-speed oscillator start-up
Fail-Safe Clock Monitor: allows safe shutdown if peripheral clock stops
Peripheral highlights:
High-current sink/source 25 mA/25 mA (PORTB and PORTC)
Three programmable external interrupts
Four input change interrupts
One Capture/Compare/PWM (CCP) module
One Enhanced Capture/Compare/PWM (ECCP) module:
One, two, or four PWM outputs
Selectable polarity
Programmable dead-band time
Auto-shutdown and auto-restart
Two Master Synchronous Serial Port (MSSP) modules supporting 3-wire SPI (all 4 modes) and I²C master/slave mode
One Enhanced Addressable USART module:
Supports RS-485, RS-232, and LIN 1.2
Auto-wake-up on Start bit
Auto-baud rate detection
10-bit, up to 13-channel Analog-to-Digital Converter (A/D) module:
Auto-acquisition capability
Conversion during Sleep
Auto-calibration
Dual analog comparators with input multiplexing
