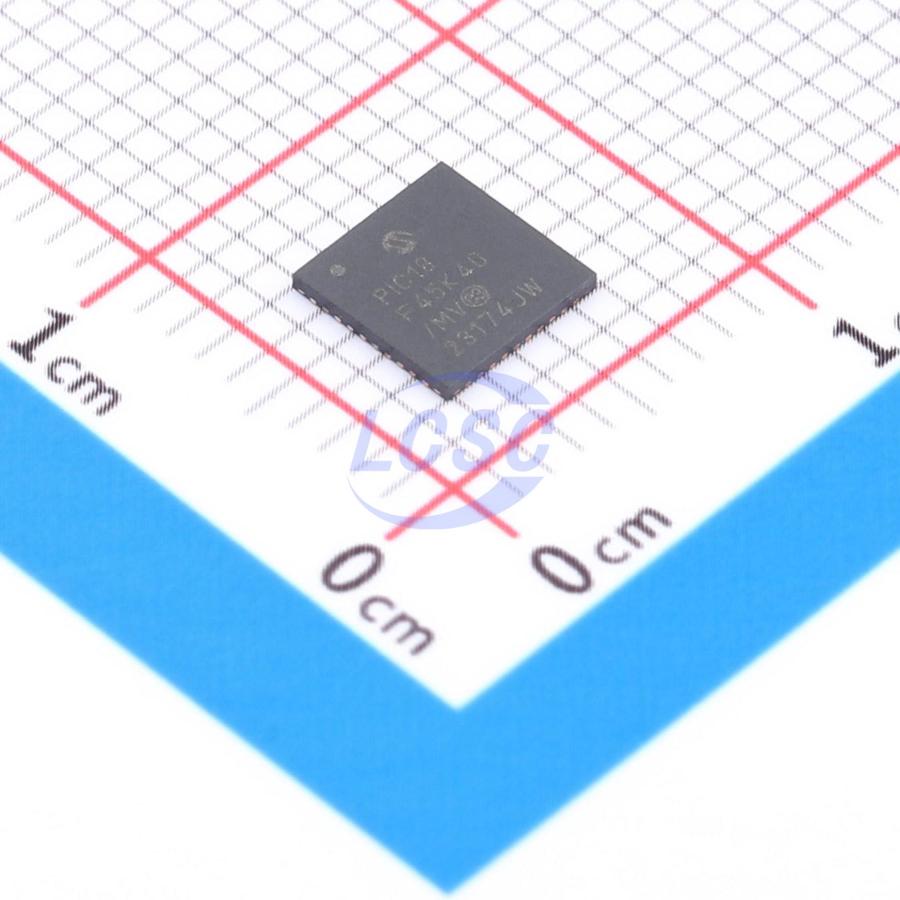

PIC18F45K40-I/MV

These PIC18(L)F26/45/46K40 microcontrollers feature Analog, Core Independent Peripherals and Communication Peripherals, combined with eXtreme Low-Power (XLP) technology for a wide range of general purpose and low-power applications. These 28/40/44 -pin devices are equipped with a 10-bit ADC with Computation (ADCC) automating Capacitive Voltage Divider (CVD) techniques for advanced touch sensing, averaging, filtering, oversampling and performing automatic threshold comparisons. They also offer a set of Core Independent Peripherals such as Complementary Waveform Generator (CWG), Windowed Watchdog Timer (WWDT), Cyclic Redundancy Check (CRC)/Memory Scan, Zero-Cross Detect (ZCD) and Peripheral Pin Select (PPS), providing for increased design flexibility and lower system Cost.

Key features

• C Compiler Optimized RISC Architecture
• Operating Speed: DC - 64 MHz clock input over the full VDD range, 62.5 ns minimum instruction cycle
• Programmable 2-Level Interrupt Priority
• 31-Level Deep Hardware Stack
• Three 8-Bit Timers (TMR2/4/6) with Hardware Limit Timer (HLT)
• Four 16-Bit Timers (TMR0/1/3/5)
• Low-Current Power-on Reset (POR)
• Power-up Timer (PWRT)
• Brown-out Reset (BOR)
• Low-Power BOR (LPBOR) Option
• Windowed Watchdog Timer (WwDT):
• Watchdog Reset on too long or too short interval between watchdog clear events
• Variable prescaler selection
• Variable window size selection
• All sources configurable in hardware or software
• Up to 64K Bytes Program Flash Memory
• Up to 3728 Bytes Data SRAM Memory
• 1024 Bytes Data EEPROM
• Programmable Code Protection
• Direct, Indirect and Relative Addressing modes
• Operating Voltage Ranges: 1.8V to 3.6V (PIC18LF26/45/46K40), 2.3V to 5.5V (PIC18F26/45/46K40)
• Temperature Range: Industrial: -40℃ to 85℃, Extended: -40℃ to 125℃
• Doze: CPU and Peripherals Running at Different Cycle Rates (typically CPU is lower)
• Idle: CPU Halted While Peripherals Operate
• Sleep: Lowest Power Consumption
• Peripheral Module Disable (PMD): Ability to selectively disable hardware module to minimize active power consumption of unused peripherals
• Extreme Low-Power mode (XLP):
• Sleep: 500 nA typical @ 1.8V
• Sleep and Watchdog Timer: 900 nA typical @ 1.8V
• Sleep mode: 50 nA @ 1.8V, typical
• Windowed Watchdog Timer: 500 nA @ 1.8V, typical
• Secondary Oscillator: 500 nA @ 32kHz
• Operating Current: 8 uA @ 32 kHz, 1.8V, typical; 32 uA/MHz @ 1.8V, typical
• Complementary Waveform Generator (CWG):
• Rising and falling edge dead-band control
• Full-bridge, half-bridge, 1-channel drive
• Multiple signal sources
• Capture/Compare/PWM (CCP) modules:
• Two CCPs
• 16-bit resolution for Capture/Compare modes
• 10-bit resolution for PWM mode
• Two 10-bit PWMs
• Serial Communications:
• Two Enhanced USART (EUSART) with Auto-Baud Detect, Auto-wake-up on Start
• RS-232, RS-485, LIN compatible
• SPI
• I2C, SMBus and PMBus compatible
• Up to 35 I/O Pins and One Input Pin:
• Individually programmable pull-ups
• Slew rate control
• Interrupt-on-change on all pins
• Input level selection control
• Programmable CRC with Memory Scan:
• Reliable data/program memory monitoring for Fail-Safe operation (e.g., Class B)
• Calculate CRC over any portion of Flash or EEPROM
• High-speed or background operation
• Hardware Limit Timer (TMR2/4/6 + HLT): Hardware monitoring and Fault detection
• Peripheral Pin Select (PPS): Enables pin mapping of digital I/O
• 10-Bit Analog-to-Digital Converter with Computation (ADC2):
• 35 external channels
• Conversion available during sleep
• Four internal analog channels
• Internal and external trigger options
• Automated math functions on input signals: Averaging, filter calculations, oversampling and threshold comparison
• 8-bit hardware acquisition timer
• Hardware Capacitive Voltage Divider (CVD) Support:
• 8-bit precharge timer
• Adjustable sample and hold capacitor array
• Guard ring digital output drive
• Zero-Cross Detect (ZCD): Detect when AC signal on pin crosses ground
• 5-Bit Digital-to-Analog Converter (DAC):
• Output available externally
• Programmable 5-bit voltage (% of VDD, [VRef+ - VRef-], FVR)
• Internal connections to comparators and ADC
• Two Comparators (CMP):
• Four external inputs
• External output via PPS
• Fixed Voltage Reference (FVR) Module:
• 1.024V, 2.048V and 4.096V output levels
• Two buffered outputs: One for DAC/CMP and one for ADC
• High-Precision Internal Oscillator Block (HFINTOSC): Selectable frequencies up to 64 MHz ±1% at calibration
• 32 kHz Low-Power Internal Oscillator (LFINTOSC)
• External 32 kHz Crystal Oscillator (SOSC)
• External High-frequency Oscillator Block:
• Three crystal/resonator modes
• Digital Clock Input mode
• 4x PLL with external sources
• Fail-Safe Clock Monitor: Allows for safe shutdown if external clock stops
• Oscillator Start-up Timer (OST)
• In-Circuit Serial Programming via Two Pins
• In-Circuit Debug (ICD) with Three Breakpoints via Two Pins
• Debug Integrated On-Chip
