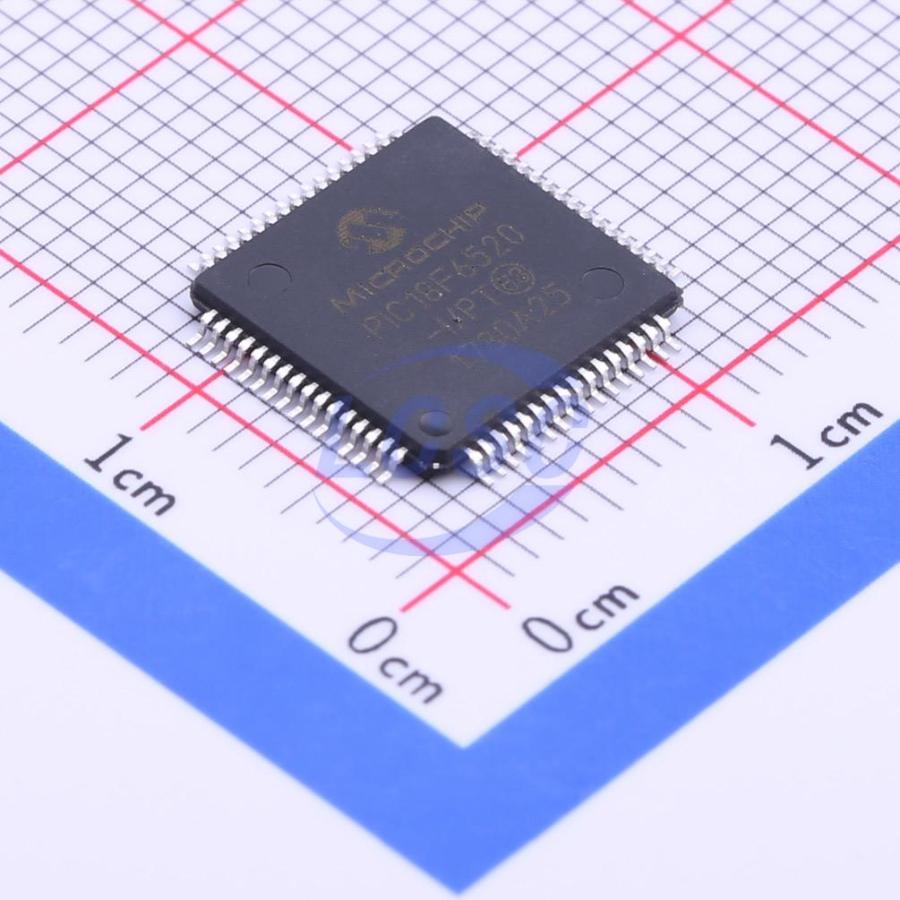

PIC18F6520-I/PT

Key features

• C compiler optimized architecture/instruction set: Source code compatible with the PIC16 and PIC17 instruction sets
• Linear program memory addressing to 128 Kbytes
• Linear data memory addressing to 3840 bytes
• 1 Kbyte of data EEPROM
• Up to 10 MIPs operation: DC – 40 MHz osc./clock input; 4 MHz – 10 MHz osc./clock input with PLL active
• 16-bit wide instructions, 8-bit wide data path
• Priority levels for interrupts
• 31-level, software accessible hardware stack
• 8x8 Single Cycle Hardware Multiplier
• Address capability of up to 2 Mbytes (PIC18F8X20 Devices Only)
• 16-bit interface (PIC18F8X20 Devices Only)
• High current sink/source 25 mA/25 mA
• Four external interrupt pins
• Timer0 module: 8-bit/16-bit timer/counter
• Timer1 module: 16-bit timer/counter
• Timer2 module: 8-bit timer/counter
• Timer3 module: 16-bit timer/counter
• Timer4 module: 8-bit timer/counter
• Secondary oscillator clock option – Timer1/Timer3
• Five Capture/Compare/PWM (CCP) modules: Capture is 16-bit, max. resolution 6.25 ns (TCY/16); Compare is 16-bit, max. resolution 100 ns (TCY); PWM output: PWM resolution is 1 to 10-bit
• Master Synchronous Serial Port (MSSP) module with two modes of operation: 3-wire SPI (supports all 4 SPI modes); I²C Master and Slave mode
• Two Addressable USART modules: Supports RS-485 and RS-232
• Parallel Slave Port (PSP) module
• 10-bit, up to 16-channel Analog-to-Digital Converter (A/D): Conversion available during Sleep
• Programmable 16-level Low-Voltage Detection (LVD) module: Supports interrupt on Low-Voltage Detection
• Programmable Brown-out Reset (PBOR)
• Dual analog comparators: Programmable input/output configuration
• 100,000 erase/write cycle Enhanced Flash program memory typical
• 1,000,000 erase/write cycle Data EEPROM memory typical
• 1 second programming time
• Flash/Data EEPROM Retention: >40 years
• Self-reprogrammable under software control
• Power-on Reset (POR), Power-up Timer (PWRT) and Oscillator Start-up Timer (OST)
• Watchdog Timer (WDT) with its own On-Chip RC Oscillator for reliable operation
• Programmable code protection
• Power saving Sleep mode
• Selectable oscillator options including: 4X Phase Lock Loop (of primary oscillator); Secondary Oscillator (32 kHz) clock input
• In-Circuit Serial Programming via two pins
• MPLAB In-Circuit Debug (ICD) via two pins
• Low-power, high-speed Flash technology
• Fully static design
• Wide operating voltage range (2.0V to 5.5V)
• Industrial and Extended temperature ranges
