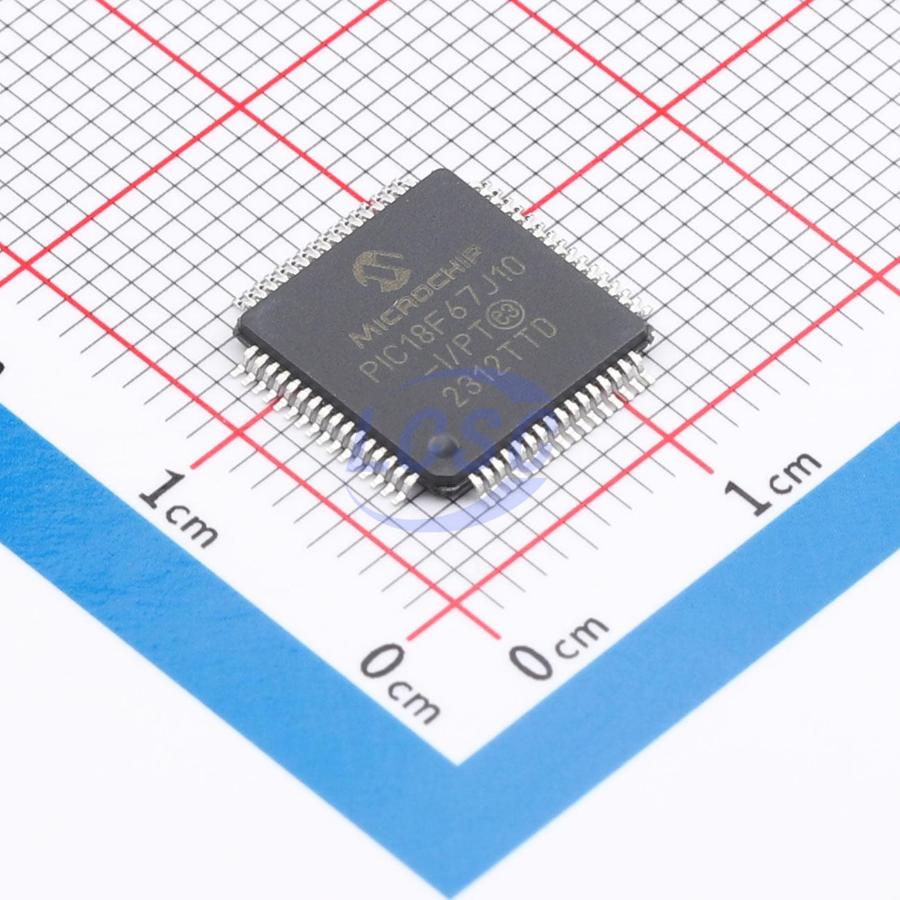

PIC18F67J10T-I/PT

PIC 8 Bit 40MHz TQFP-64(10x10) Microcontrollers RoHS

TQFP-64(10x10)ROHS3 CompliantActive

High-Performance Flash Microcontrollers with nano Watt Technology

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

10 in stock

#C630929

Stock & price checked 7 days ago

Quantity (min 1)

1 × ₹992.12

₹992.12

excl. GST

₹1,170.70 incl. 18% GST

PIC18F67J10T-I/PT

₹992.12 for 1 + GST

Specifications

Operating Voltage Range: 2.0V to 3.6V
5.5V Tolerant Input (digital pins only)
On-Chip 2.5V Regulator
Low-Power, High-Speed CMOS Flash Technology
C Compiler Optimized Architecture: - Optional extended instruction set designed to optimize re-entrant code
Priority Levels for Interrupts
8x8 Single-Cycle Hardware Multiplier
Extended Watchdog Timer (WDT): - Programmable period from 4 ms to 131s
Single-Supply In-Circuit Serial Programming (ICSP) via Two Pins
In-Circuit Debug (ICD) with Three Break points via Two Pins
Power-Managed modes: - Run: CPU on, peripherals on - Idle: CPU off, peripherals on - Sleep: CPU off, peripherals off
Flash Program Memory: - 1000 erase/write cycle endurance typical - 20 year retention minimum - Self-write capability during normal operation
Two Crystal modes, up to 40 MHz
4x Phase Lock Loop (PLL)
Two External Clock modes, up to 40 MHz
Internal 31 kHz Oscillator
Secondary Oscillator using Timer1 ⨂ 32 kHz
Two-Speed Oscillator Start-up
Fail-Safe Clock Monitor: - Allows for safe shutdown if peripheral clock stops
High-Current Sink/Source 25 mA/25 mA (PORTB and PORTC)
Four Programmable External Interrupts
Four Input Change Interrupts
Two Capture/Compare/PWM (CCP) modules
Three Enhanced Capture/Compare/PWM (ECCP) modules: - One, two or four PWM outputs - Selectable polarity - Programmable dead time - Auto-shutdown and auto-restart
Two Master Synchronous Serial Port (MSSP) modules Supporting 3
