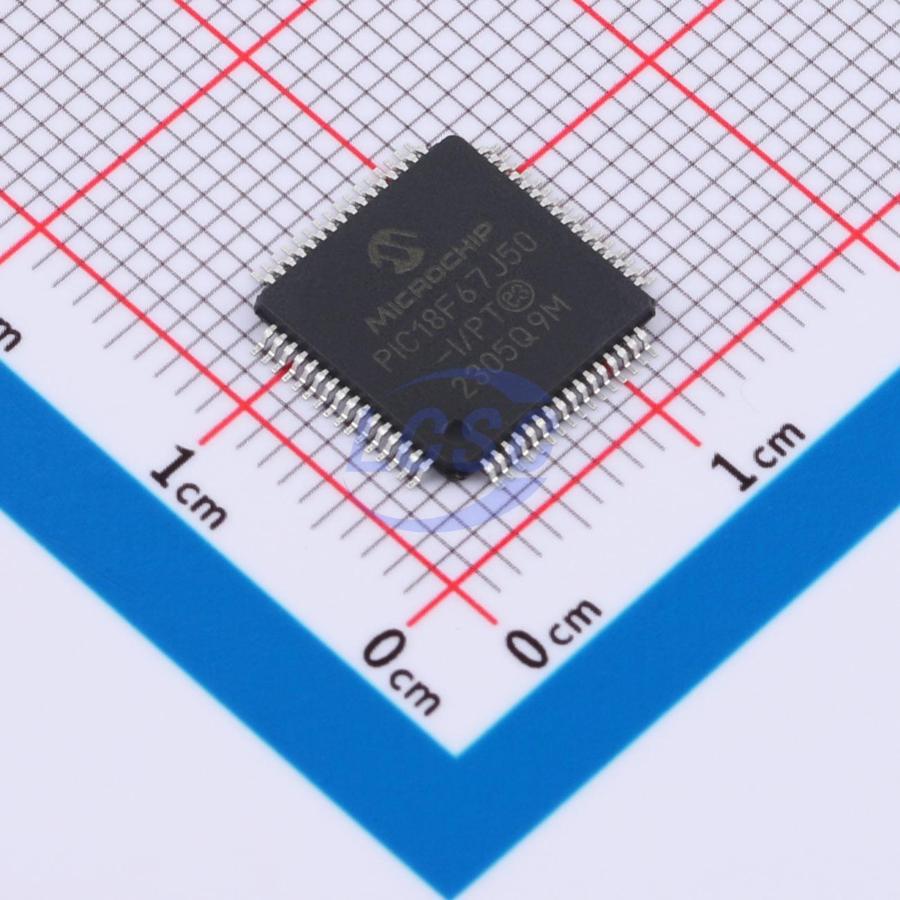

PIC18F67J50T-I/PT

Key features

• USB V2.0 Compliant SIE
• Low Speed (1.5 Mb/s) and Full Speed (12 Mb/s)
• Supports Control, Interrupt, Isochronous and Bulk Transfers
• Supports up to 32 Endpoints (16 bidirectional)
• 3.9-Kbyte Dual Access RAM for USB
• On-Chip USB Transceiver
• High-Precision PLL for USB
• Two External Clock modes, up to 48 MHz
• Internal 31 kHz Oscillator, Tunable Internal Oscillator, 31 kHz to 8 MHz
• Secondary Oscillator using Timer1 x32 kHz
• Fail-Safe Clock Monitor: Allows for safe shutdown if any clock stops
• High-Current Sink/Source 25 mA/25mA (PORTB and PORTC)
• Four Programmable External Interrupts
• Four Input Change Interrupts
• Two Capture/Compare/PWM (CCP) modules
• Three Enhanced Capture/Compare/PWM (ECCP) modules: One, two or four PWM outputs; Selectable polarity; Programmable dead time; Auto-shutdown and auto-restart
• Two Master Synchronous Serial Port (MSSP) modules supporting 3-Wire SPI (all 4 modes) and I²C Master and Slave modes
• 8-Bit Parallel Master Port/Enhanced Parallel Slave Port with 16 Address Lines
• Dual Analog Comparators with Input Multiplexing
• 10-Bit, up to 12-Channel Analog-to-Digital (A/D) Converter module: Auto-acquisition capability; Conversion available during Sleep
• Two Enhanced USART modules: Supports RS-485, RS-232 and LIN 1.2; Auto-wake-up on Start bit; Auto-Baud Detect
