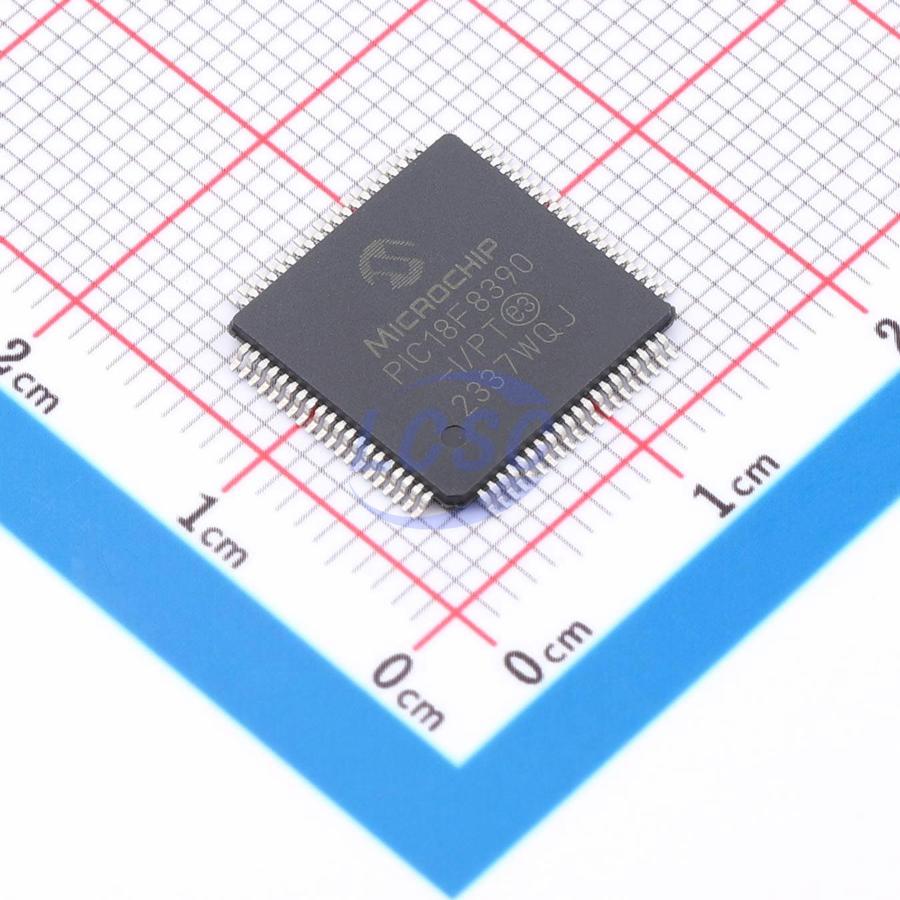

PIC18F8390-I/PT

Key features

• Direct Driving of LCD Panel
• Up to 48 Segments: Software Selectable
• Programmable LCD Timing module: Multiple LCD timing sources available; Up to 4 commons: Static, 1/2, 1/3 or 1/4 multiplex; Static, 1/2 or 1/3 bias configuration
• Can drive LCD Panel while in Sleep mode
• Run: CPU On, Peripherals On
• Idle: CPU Off, Peripherals On
• Sleep: CPU Off, Peripherals Off
• Run mode Currents Down to 14.0 μA Typical
• Idle mode Currents Down to 5.8 μA Typical
• Sleep Current Down to 0.1 μA Typical
• Timer1 Oscillator: 1.8 μA, 32 kHz, 2V
• Watchdog Timer: 2.1 μA
• Two-Speed Oscillator Start-up
• Four Crystal modes: LP: up to 200 kHz; XT: up to 4 MHz; HS: up to 40 MHz; HSPLL: 4 - 10 MHz (16 - 40 MHz internal)
• 4x Phase Lock Loop (available for crystal and internal oscillators)
• Two External RC modes, up to 4 MHz
• Two External Clock modes, up to 40 MHz
• Internal Oscillator Block: 8 user-selectable frequencies, from 31 kHz to 8 MHz; Provides a complete range of clock speeds from 31 kHz to 32 MHz when used with PLL; User-tunable to compensate for frequency drift
• Secondary Oscillator using Timer1 ⊗ 32 kHz
• Fail-Safe Clock Monitor: Allows for safe shut down of device if primary or secondary clock fails
• High-Current Sink/Source 25 mA/25 mA
• Four External Interrupts
