MICROCHIP

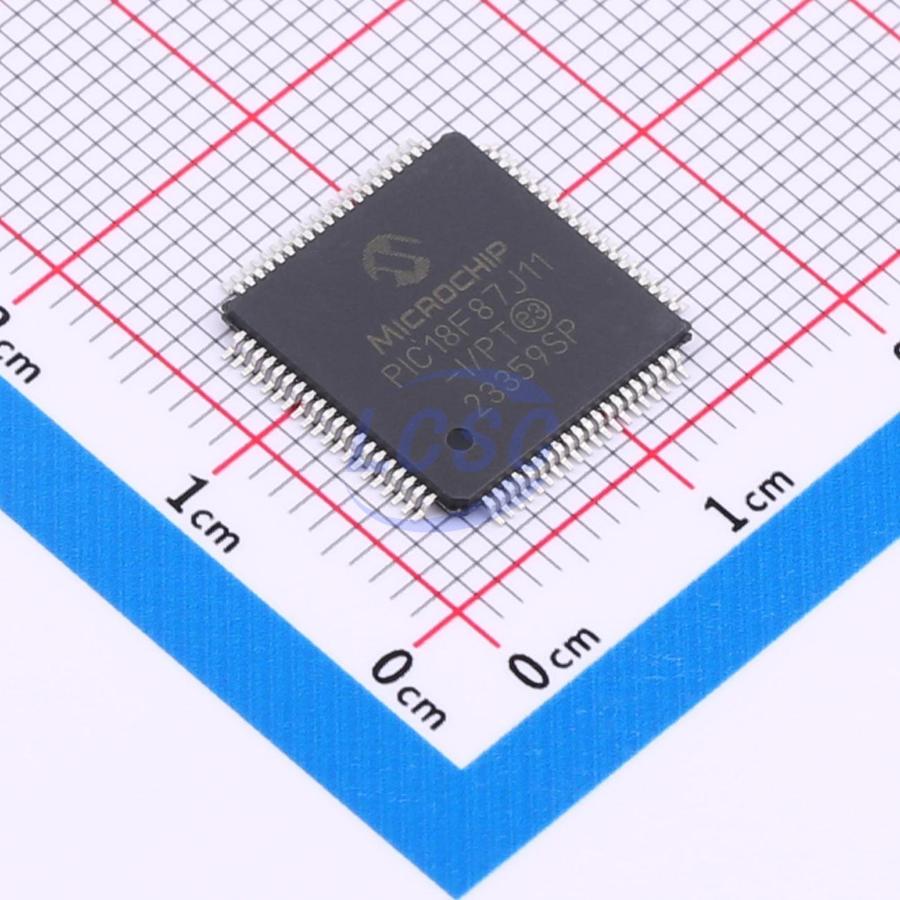

PIC18F87J11T-I/PT

PIC 8 Bit 48MHz TQFP-80(12x12) Microcontrollers RoHS

TQFP-80(12x12)ROHS3 CompliantActive

64/80-Pin, High-Performance, 1-Mbit Flash Microcontrollers

Manufacturer: MICROCHIP
Manufacturer part #: PIC18F87J11T-I/PT
Store part #: C630978
Package / case: TQFP-80(12x12)
Category: Microcontrollers
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

5 in stock

#C630978

Stock & price checked 2 days ago

Quantity	Unit price	Pack price
1+	₹1,344.37	₹1,344.37
10+	₹1,160.05	₹11,600.50
30+	₹1,047.70	₹31,431.00
100+	₹953.59	₹95,359.00

Quantity (min 1)

1 × ₹1,344.37

₹1,344.37

excl. GST

₹1,586.36 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 1,200 per reel

PIC18F87J11T-I/PT

₹1,344.37 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

ADC (Bit): 10bit
Number of I/O: 68
Operating Temperature: -40℃~+85℃
Program Memory Type: FLASH
Voltage - Supply: 2V~3.6V
Program Storage Size: 128KB
CPU Core: PIC
Core Size: 8 Bit
CPU Maximum Speed: 48MHz
Oscillator Type: Built-in

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: 3A991A2
Packaging: Tape & Reel (TR)
Standard pack: 1,200 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.583 g

Overview

Key features

Four Crystal modes, Including High-Precision PLL
Two External Clock modes, up to 48 MHz
Internal Oscillator Block:
Provides 8 user-selectable frequencies from 31 kHz to 8 MHz
Provides a complete range of clock speeds, from 31 kHz to 32 MHz when used with PLL
User-tunable to compensate for frequency drift
Secondary Oscillator using Timer1 α32 kHz
Fail-Safe Clock Monitor (FSCM): Allows for safe shutdown if any clock stops
High-Current Sink/Source 25 mA/25mA on PORTB and PORTC
Four Programmable External Interrupts
Four Input Change Interrupts
One 8/16-Bit Timer/Counter
Two 8-Bit Timers/Counters
Two 16-Bit Timers/Counters
Two Capture/Compare/PWM (CCP) modules
Three Enhanced Capture/Compare/PWM (ECCP) modules:
One, two or four PWM outputs
Selectable polarity
Programmable dead time
Auto-shutdown and auto-restart
Two Master Synchronous Serial Port (MSSP) modules supporting 3-Wire SPI (all 4 modes) and I²C Master and Slave modes
Two Enhanced USART modules:
Supports RS-485, RS-232 and LIN/J2602
Auto-wake-up on Start bit
Auto-Baud Detect
8-Bit Parallel Master Port/Enhanced Parallel Slave Port (PMP/EPSP) with 16 Address Lines
Dual Analog Comparators with Input Multiplexing
10-Bit, up to 15-Channel Analog-to-Digital Converter module (A/D):
Auto-acquisition capability
Conversion available during Sleep
Address Capability of up to 2 Mbytes (80-pin devices only)
8-Bit or 16-Bit Interface (80-pin devices only)
12-Bit, 16-Bit and 20-Bit Addressing modes (80-pin devices only)
Low-Power, High-Speed CMOS Flash Technology
C Compiler Optimized Architecture for Re-Entrant Code
Power Management Features:
Run: CPU on, peripherals on
Idle: CPU off, peripherals on
Sleep: CPU off, peripherals off
Priority Levels for Interrupts
Self-Programmable under Software Control
8x8 Single-Cycle Hardware Multiplier
Extended Watchdog Timer (WDT):
Programmable period from 4 ms to 131s
Single-Supply In-Circuit Serial Programming™ (ICSP™) via Two Pins
In-Circuit Debug (ICD) with 3 Breakpoints via Two Pins
Operating Voltage Range of 2.0V to 3.6V
5.5V Tolerant Inputs (digital only pins)
On-Chip 2.5V Regulator
Flash Program Memory of 10000 Erase/Write Cycles and 20-Year Data Retention
