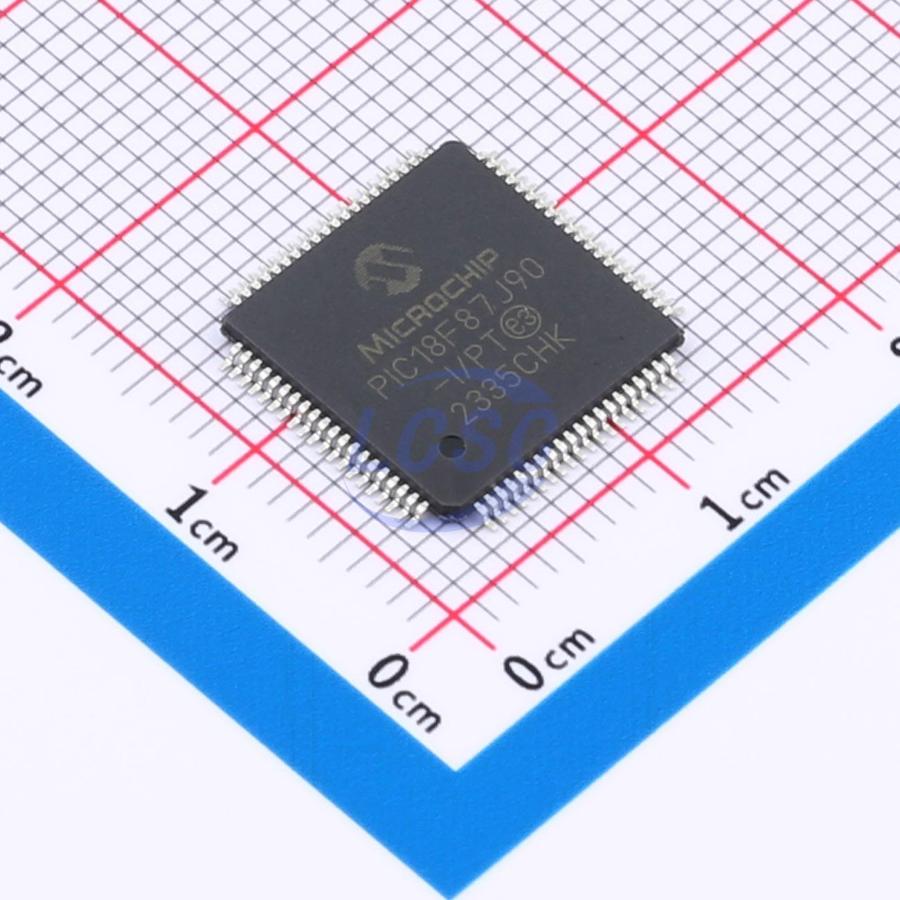

PIC18F87J90-I/PT

Key features

• Direct LCD Panel Drive Capability: Can drive LCD panel while in Sleep mode
• Up to 48 Segments and 192 Pixels, Software Selectable
• Programmable LCD Timing module: Multiple LCD timing sources available; Up to four commons: static, 1/2, 1/3 or 1/4 multiplex; Static, 1/2 or 1/3 bias configuration
• On-Chip LCD Boost Voltage Regulator for Contrast Control
• Charge Time Measurement Unit (CTMU) for Capacitive Touch Sensing
• ADC for Resistive Touch Sensing
• Power-Managed modes: Run: CPU On, Peripherals On; Idle: CPU Off, Peripherals On; Sleep: CPU Off, Peripherals Off
• Two-Speed Oscillator Start-up
• Two Crystal modes, 4-25 MHz
• Two External Clock modes, up to 48 MHz
• 4x Phase Lock Loop (PLL)
• Internal Oscillator Block with PLL: Eight user-selectable frequencies from 31.25 kHz to 8 MHz
• Secondary Oscillator using Timer1 at 32 kHz
• Fail-Safe Clock Monitor: Allows for safe shutdown if peripheral clock fails
• High-Current Sink/Source 25 mA/25 mA (PORTB and PORTC)
• Up to Four External Interrupts
• Four 8-Bit/16-Bit Timer/Counter modules
• Two Capture/Compare/PWM (CCP) modules
• Master Synchronous Serial Port (MSSP) module with Two Modes of Operation: 3-Wire/4-Wire SPI (supports all four SPI modes); I²C Master and Slave mode
• One Addressable USART module
• One Enhanced Addressable USART module: LIN/J2602 support; Auto-wake-up on Start bit and Break character; Auto-Baud Detect (ABD)
• 10-Bit, up to 12-Channel A/D Converter: Auto-acqu
