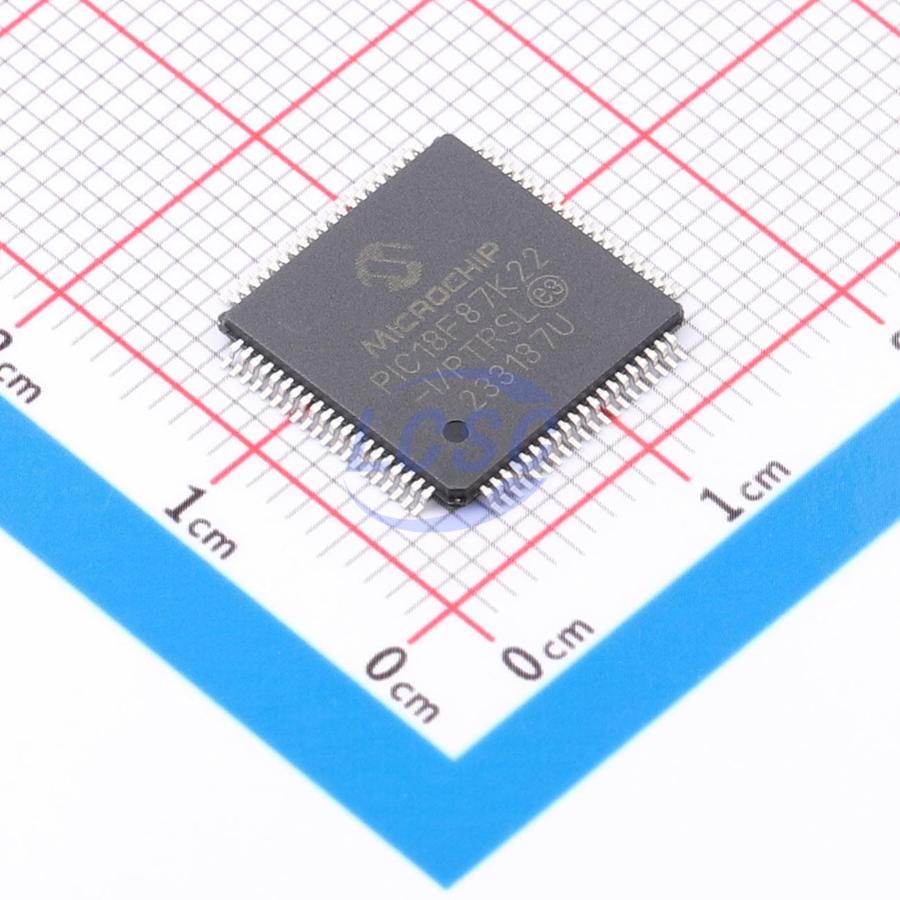

PIC18F87K22T-I/PTRSL

Key features

• Power-Managed modes:
• Run: CPU on, peripherals on
• Idle: CPU off, peripherals on
• Sleep: CPU off, peripherals off
• Two-Speed Oscillator Start-up
• Fail-Safe Clock Monitor
• Power-Saving Peripheral Module Disable (PMD)
• Ultra Low-Power Wake-up
• Fast Wake-up, 1 μs Typical
• Low-Power WDT, 300 nA Typical
• Ultra Low 50 nA Input Leakage
• Run mode Currents Down to 5.5 μA, Typical
• Idle mode Currents Down to 1.7 μA Typical
• Sleep mode Currents Down to Very Low 20 nA, Typical
• RTCC Current Downs to Very Low 700 nA, Typical
• Operating Voltage Range: 1.8V to 5.5V
• On-Chip 3.3V Regulator
• Operating Speed up to 64 MHz
• Up to 128 Kbytes On-Chip Flash Program Memory
• Data EEPROM of 1,024 Bytes
• 4Kx8 General Purpose Registers (SRAM)
• 10,000 Erase/Write Cycle Flash Program Memory, Minimum
• 1,000,000 Erase/write Cycle Data EEPROM Memory, Typical
• Flash Retention: 40 Years, Minimum
• Three Internal Oscillators: LF-INTRC (31 kHz), MF-INTOSC (√500 kHz) and HF-INTOSC (16 MHz)
• Self-Programmable under Software Control
• Priority Levels for Interrupts
• 8x8 Single-Cycle Hardware Multiplier
• Extended Watchdog Timer (WDT):
• Programmable period from 4 ms to 4,194s (about 70 minutes)
• In-Circuit Serial Programming (ICSP) via Two Pins
• In-Circuit Debug via Two Pins
• Programmable:
• BOR
• LVD
• Up to Ten CCP/ECCP modules:
• Up to seven Capture/Compare/PWM (CCP) modules
• Three Enhanced Capture/Compare/PWM (ECCP) modules
• Up to Eleven 8/16-Bit Timer/Counter modules:
• Timer0 – 8/16-bit timer/counter with 8-bit programmable prescaler
• Timer1,3 – 16-bit timer/counter
• Timer2,4,6,8 – 8-bit timer/counter
• Timer5,7 – 16-bit timer/counter for 64k and 128k parts
• Timer10,12 – 8-bit timer/counter for 64k and 128k parts
• Three Analog Comparators
• Configurable Reference Clock Output
• Hardware Real-Time Clock and Calendar (RTCC) module with Clock, Calendar and Alarm Functions
• Charge Time Measurement Unit (CTMU):
• Capacitance measurement for mTouch sensing solution
• Time measurement with 1 ns typical resolution
• Integrated temperature sensor
• High-Current Sink/Source 25 mA/25 mA (PORTB and PORTC)
• Up to Four External Interrupts
• Two Master Synchronous Serial Port (MSSP) modules:
• 3/4-wire SPI (supports all four SPI modes)
• I²C Master and Slave modes
• Two Enhanced Addressable USART modules:
• LIN/J2602 support
• Auto-Baud Detect (ABD)
• 12-Bit A/D Converter with up to 24 Channels:
• Auto-acquisition and Sleep operation
• Differential input mode of operation
• Integrated Voltage Reference
