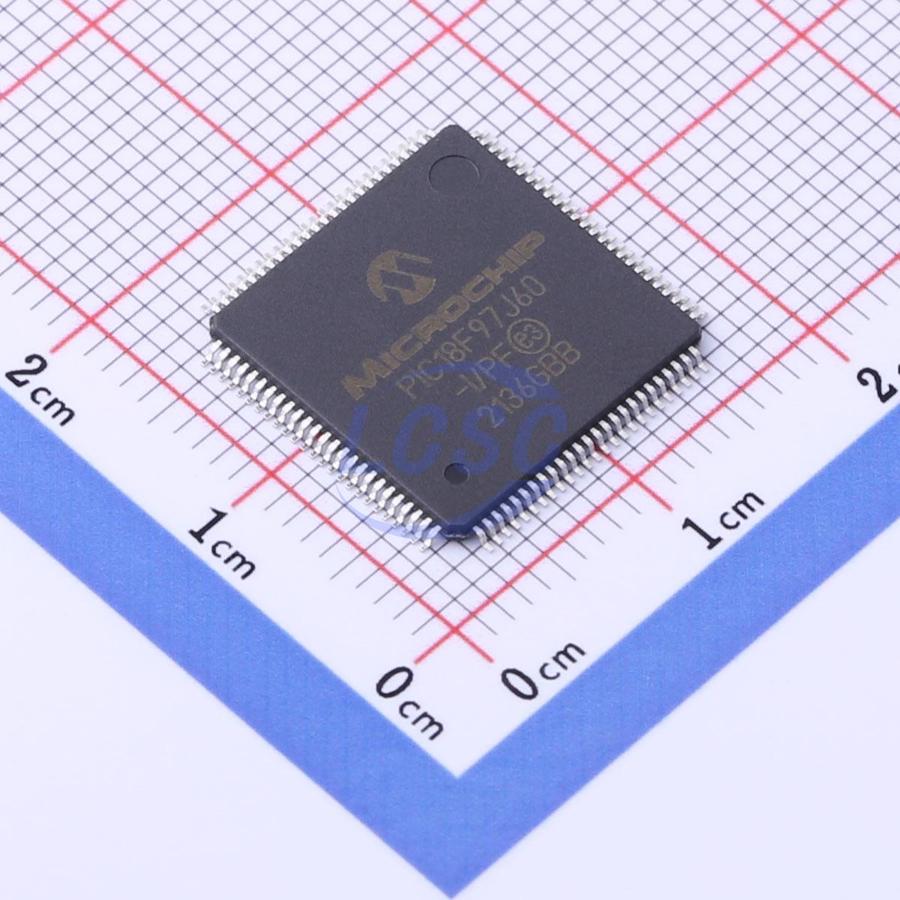

PIC18F97J60-I/PF

PIC 8 Bit 41.667MHz TQFP-100(14x14) Microcontrollers RoHS

TQFP-100(14x14)ROHS3 CompliantActive

High-Performance, 1-Mbit Flash Microcontrollers with Ethernet

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

23 in stock

#C556916

Stock & price checked 2 days ago

Quantity (min 1)

1 × ₹843.33

₹843.33

excl. GST

₹995.13 incl. 18% GST

PIC18F97J60-I/PF

₹843.33 for 1 + GST

Specifications

IEEE 802.3(TM) Compatible Ethernet Controller
Fully Compatible with 10/100/1000Base-T Networks
Integrated MAC and 10Base-T PHY
8-Kbyte Transmit/Receive Packet Buffer SRAM
Supports One 10Base-T Port
Programmable Automatic Retransmit on Collision
Programmable Padding and CRC Generation
Programmable Automatic Rejection of Erroneous Packets
Activity Outputs for 2 LED Indicators
Buffer:
Configurable transmit/receive buffer size
Hardware-managed circular receive FIFO
Byte-wide random and sequential access
Internal DMA for fast memory copying
Hardware assisted checksum calculation for various protocols
MAC:
Support for Unicast, Multicast and Broadcast packets
Programmable Pattern Match of up to 64 bytes within packet at user-defined offset
Programmable wake-up on multiple packet formats
PHY:
Wave shaping output filter
Selectable System Clock derived from Single 25 MHz External Source: 2.778 to 41.667 MHz
Internal 31 kHz Oscillator
Secondary Oscillator using Timer1@32 kHz
Fail-Safe Clock Monitor: Allows for safe shutdown if oscillator stops
Two-Speed Oscillator Start-up
Address Capability of up to 2 Mbytes (100-pin devices only)
8-Bit or 16-Bit Interface (100-pin devices only)
12-Bit, 16-Bit and 20-Bit Addressing modes (100-pin devices only)
High-Current Sink/Source: 25 mA/25 mA on PORTB and PORTC
Five Timer modules (Timer0 to Timer4)
Four External Interrupt pins
Two Capture/Compare/PWM (CCP) modules
Three Enhanced Capture/Compare/P
