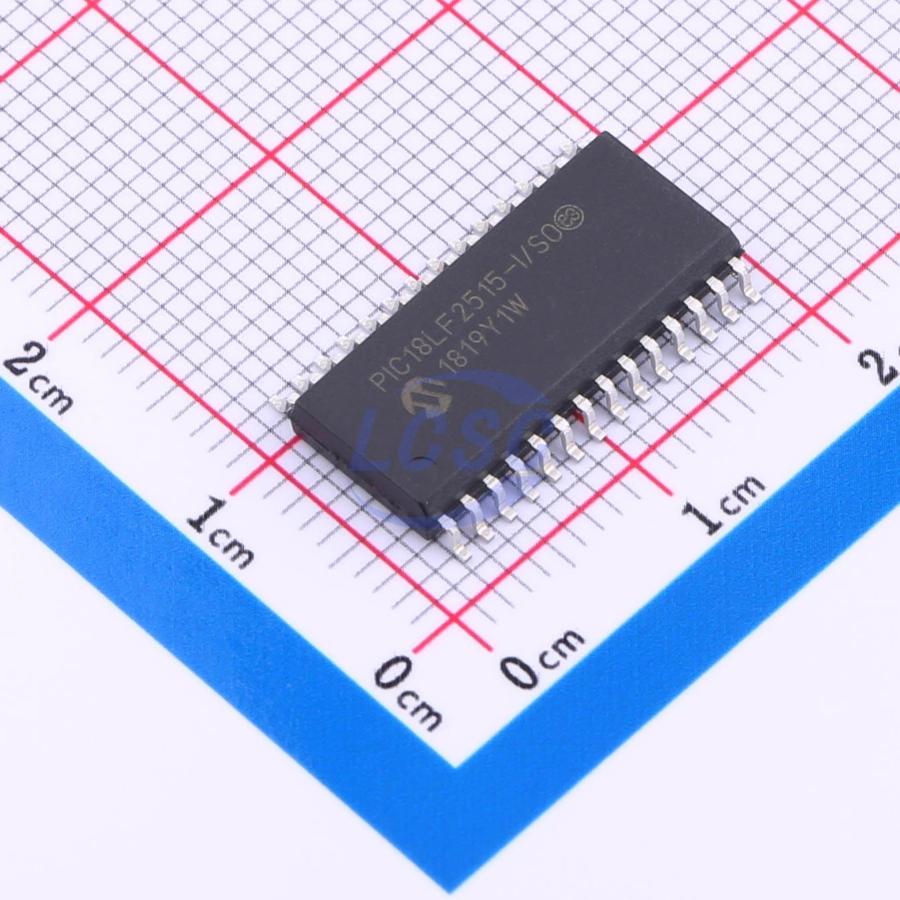

PIC18LF2515-I/SO

Key features

• Run: CPU On, Peripherals On
• Idle: CPU Off, Peripherals On
• Sleep: CPU Off, Peripherals Off
• Idle mode Currents Down to 3.0 μA Typical
• Sleep mode Currents Down to 20 nA Typical
• Timer1 Oscillator: 1.8 μA, 32 kHz, 2V
• Watchdog Timer: 2.1 μA
• Two-Speed Oscillator Start-up
• High-Current Sink/Source 25 mA/25 mA
• Up to 2 Capture/Compare/PWM (CCP) modules, One with Auto-Shutdown (28-pin devices)
• Enhanced Capture/Compare/PWM (ECCP) module (40/44-pin devices only):
• One, two or four PWM outputs
• Selectable polarity
• Programmable dead time
• Auto-shutdown and auto-restart
• Master Synchronous Serial Port (MSSP) module Supporting 3-Wire SPI (all 4 modes) and I²C Master and Slave modes
• Enhanced Addressable USART module:
• Supports RS-485, RS-232 and LIN 1.2
• RS-232 operation using internal oscillator block (no external crystal required)
• Auto-wake-up on Start bit
• Auto-Baud Detect
• 10-Bit, Up to 13-Channel Analog-to-Digital Converter module (A/D):
• Auto-acquisition capability
• Conversion available during Sleep
• Dual Analog Comparators with Input Multiplexing
• Programmable 16-Level High/Low-Voltage Detection (HLVD) module:
• Supports interrupt on High/Low-Voltage Detection
• Four Crystal modes, Up to 40 MHz
• 4x Phase Lock Loop (PLL) – Available for Crystal and Internal Oscillators
• Two External RC modes, Up to 4 MHz
• Two External Clock modes, Up to 40 MHz
• Internal Oscillator Block:
• 8 user-selectable frequencies, from 31 kHz to 8 MHz
• Provides a complete range of clock speeds from 31 kHz to 32 MHz when used with PLL
• User-tunable to compensate for frequency drift
• Secondary Oscillator using Timer1 @ 32 kHz
• Fail-Safe Clock Monitor:
• Allows for safe shutdown if peripheral clock stops
• C Compiler Optimized Architecture:
• Optional extended instruction set designed to optimize re-entrant code
• 100,000 Erase/Write Cycle Flash Program Memory Typical
• Three Programmable External Interrupts
• Four Input Change Interrupts
• Priority Levels for Interrupts
• 8x8 Single-Cycle Hardware Multiplier
• Extended Watchdog Timer (WDT):
• Programmable period from 4 ms to 131s
• Single-Supply 5V In-Circuit Serial Programming via Two Pins
• In-Circuit Debug (ICD) via Two Pins
• Wide Operating Voltage Range: 2.0V to 5.5V
• Programmable Brown-out Reset (BOR) with Software Enable Option
