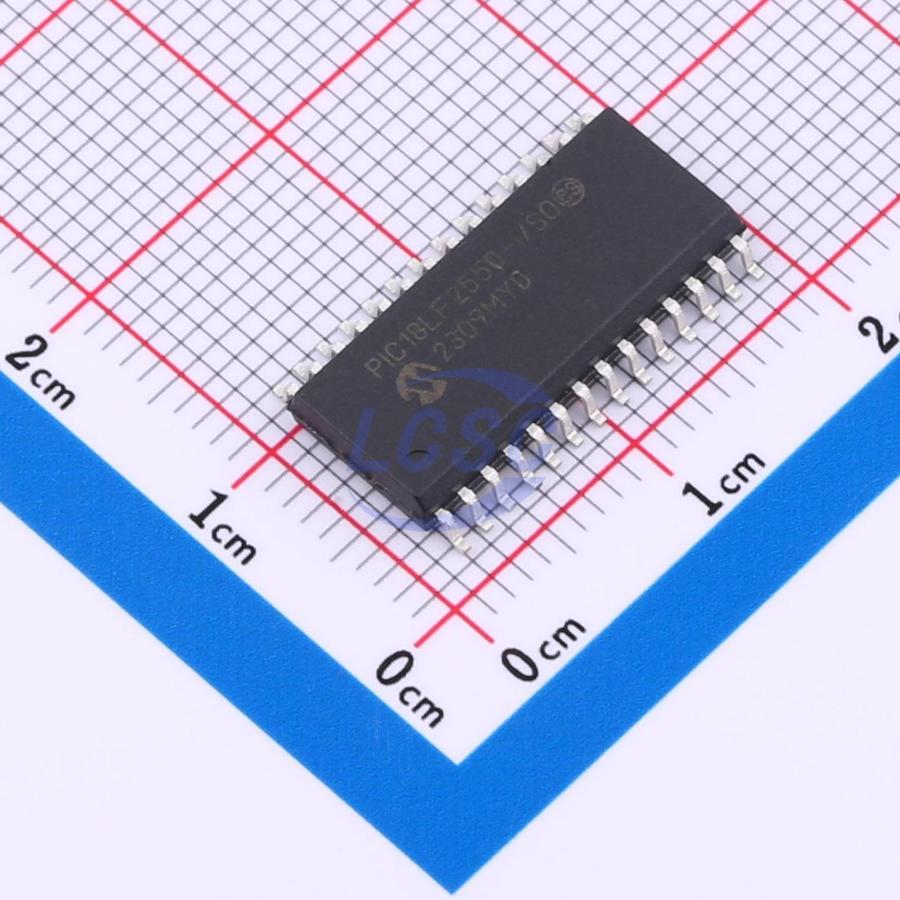

PIC18LF2550-I/SO

Key features

• USB V2.0 Compliant
• Low Speed (1.5 Mb/s) and Full Speed (12 Mb/s)
• Supports Control, Interrupt, Isochronous and Bulk Transfers
• Supports up to 32 Endpoints (16 bidirectional)
• 1 Kbyte Dual Access RAM for USB
• On-Chip USB Transceiver with On-Chip Voltage Regulator
• Interface for Off-Chip USB Transceiver
• Streaming Parallel Port (SPP) for USB streaming transfers (40/44-pin devices only)
• Run: CPU on, Peripherals on
• Idle: CPU off, Peripherals on
• Sleep: CPU off, Peripherals off
• Idle mode Currents Down to 5.8 μA Typical
• Sleep mode Currents Down to 0.1 μA Typical
• Timer1 Oscillator: 1.1 μA Typical, 32 kHz, 2V
• Watchdog Timer: 2.1 μA Typical
• Two-Speed Oscillator Start-up
• Four Crystal modes, including High-Precision PLL for USB
• Two External Clock modes, Up to 48 MHz
• Internal Oscillator Block:
• 8 user-selectable frequencies, from 31 kHz to 8 MHz
• User-tunable to compensate for frequency drift
• Secondary Oscillator using Timer1 x32 kHz
• Dual Oscillator Options allow Microcontroller and USB module to Run at Different Clock Speeds
• Fail-Safe Clock Monitor:
• Allows for safe shutdown if any clock stops
• High-Current Sink/Source: 25 mA/25 mA
• Three External Interrupts
• Four Timer modules (Timer0 to Timer3)
• Up to 2 Capture/Compare/PWM (CCP) modules:
• Capture is 16-bit, max. resolution 5.2 ns (TCY/16)
• Compare is 16-bit
