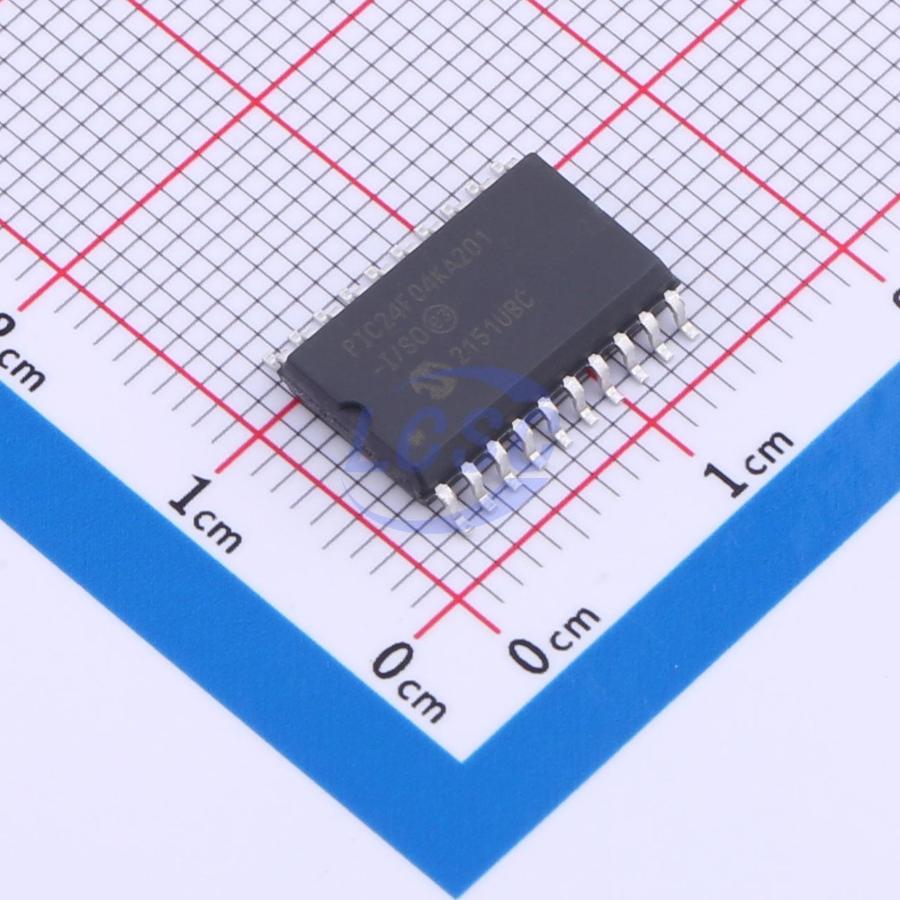

PIC24F04KA201-I/SO

PIC24F04KA201 family introduces a new line of extreme low-power devices: a 16-bit microcontroller family with a broad peripheral feature set and enhanced computational performance. It also offers a new migration option for those high-performance applications, which may be outgrowing their 8-bit platforms, but do not require the numerical processing power of a digital signal processor.

Key features

• Run – CPU, Flash, SRAM and Peripherals On
• Doze – CPU Clock Runs Slower than Peripherals
• Idle – CPU Off, Flash, SRAM and Peripherals On
• Sleep – CPU, Flash, Peripherals Off and SRAM On
• Deep Sleep – CPU, Flash, SRAM and Most Peripherals Off
• Run mode Currents Down to 8 μA Typical
• Idle mode Currents Down to 2 μA Typical
• Deep Sleep mode Currents Down to 20 nA Typical
• Watchdog Timer 350 nA, 1.8V Typical
• Modified Harvard Architecture
• Up to 16 MIPS Operation @ 32 MHz
• 8 MHz Internal Oscillator with 4x PLL Option and Multiple Divide Options
• 17-Bit by 17-Bit Single-Cycle Hardware Multiplier
• 32-Bit by 16-Bit Hardware Divider
• 16-Bit x 16-Bit Working Register Array
• C Compiler Optimized Instruction Set Architecture
• Serial Communication modules: - SPI, I²C™ and UART modules
• Three 16-Bit Timers/Counters with Programmable Prescaler
• 16-Bit Capture Inputs
• 16-Bit Compare/PWM Output
• Configurable Open-Drain Outputs on Digital I/O Pins
• Up to Three External Interrupt Sources
• 10-Bit, up to 9-Channel Analog-to-Digital Converter: - 500 ksps conversion rate - Conversion available during Sleep and Idle
• Dual Analog Comparators with Programmable Input/ Output Configuration
• Charge Time Measurement Unit (CTMU): - Used for capacitance sensing - Compatible with mTouch™ capacitive sensing - Time measurement, down to 1 ns resolution - Delay/pulse generation, down to 1 ns resolution
• Operating Voltage Range of 1.8V to 3.6V
• High-Current Sink/Source (18 mA/18 mA) on All I/O Pins
• Flash Program Memory: - Erase/write cycles: 10000 minimum - 40 years data retention minimum
• Fail-Safe Clock Monitor
• System Frequency Range Declaration bits: - Declaring the frequency range helps in optimizing the current consumption.
• Flexible Watchdog Timer (WDT) with On-Chip, Low-Power RC Oscillator for Reliable Operation
• In-Circuit Serial Programming™ (ICSP™)
• Programmable High/Low-Voltage Detect (HLVD)
• Brown-out Reset (BOR): - Standard BOR with three programmable trip points; can be disabled in Sleep
• Extreme Low-Power DSBOR for Deep Sleep, LPBOR for all other modes
