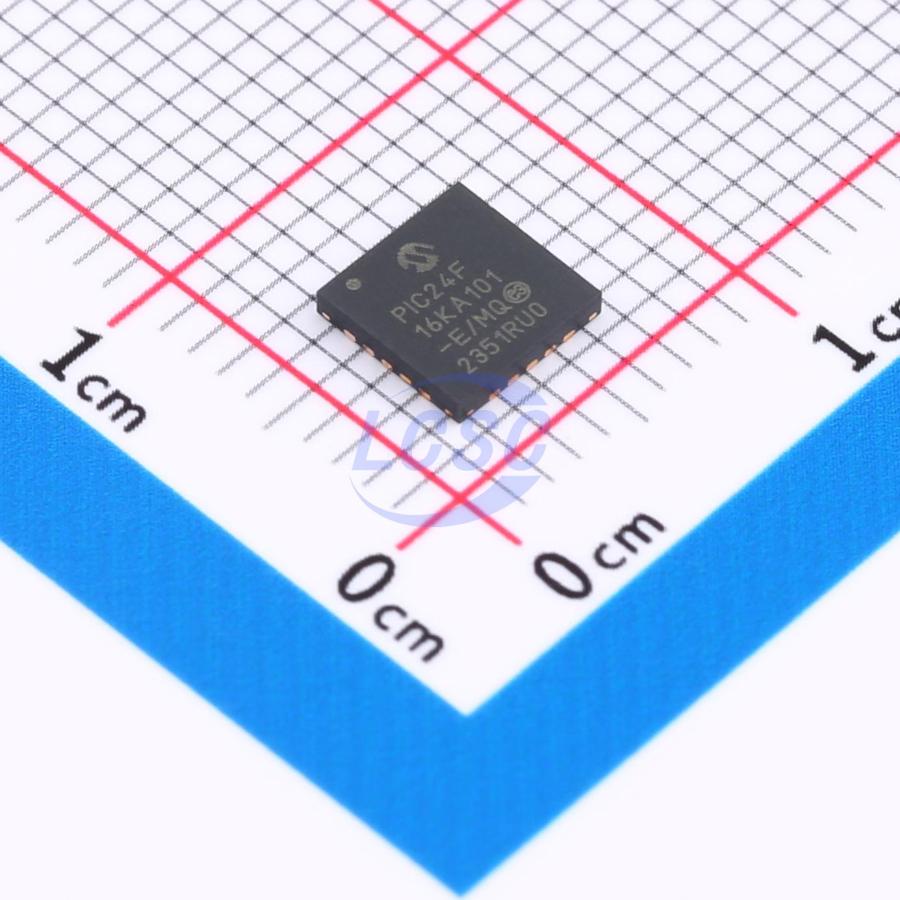

PIC24F16KA101-E/MQ

PIC 16 Bit 32MHz VQFN-20(5x5) Microcontrollers RoHS

VQFN-20(5x5)ROHS3 CompliantActive

General Purpose, 16-Bit Flash Microcontrollers with nanoWatt XLP Technology

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

50 in stock

#C638992

Stock & price checked 5 days ago

Quantity (min 1)

1 × ₹618.85

₹618.85

excl. GST

₹730.24 incl. 18% GST

PIC24F16KA101-E/MQ

₹618.85 for 1 + GST

Specifications

Run – CPU, Flash, SRAM and Peripherals On
Doze – CPU Clock Runs Slower than Peripherals
Idle – CPU Off, Flash, SRAM and Peripherals On
Sleep – CPU, Flash and Peripherals Off and SRAM On
Deep Sleep – CPU, Flash, SRAM and Most Peripherals Off
Run mode currents down to 8 μA typical
Idle mode currents down to 2 μA typical
Deep Sleep mode currents down to 20 nA typical
RTCC 490 nA, 32 kHz, 1.8V
Watchdog Timer 350 nA, 1.8V typical
Modified Harvard Architecture
Up to 16 MIPS Operation @ 32 MHz
8 MHz Internal Oscillator with 4x PLL Option and Multiple Divide Options
17-Bit by 17-Bit Single-Cycle Hardware Multiplier
32-Bit by 16-Bit Hardware Divider
16-Bit x 16-Bit Working Register Array
C Compiler Optimized Instruction Set Architecture
Hardware Real-Time Clock and Calendar (RTCC): Provides clock, calendar and alarm functions; Can run in Deep Sleep Mode
Programmable Cyclic Redundancy Check (CRC)
Serial Communication modules: SPI, I²C and two UART modules
Three 16-Bit Timers/Counters with Programmable Prescaler
16-Bit Capture Inputs
16-Bit Compare/PWM Output
Configurable Open-Drain Outputs on Digital I/O Pins
Up to Three External Interrupt Sources
10-Bit, up to 9-Channel Analog-to-Digital Converter: 500 ksps conversion rate; Conversion available during Sleep and Idle
Dual Analog Comparators
