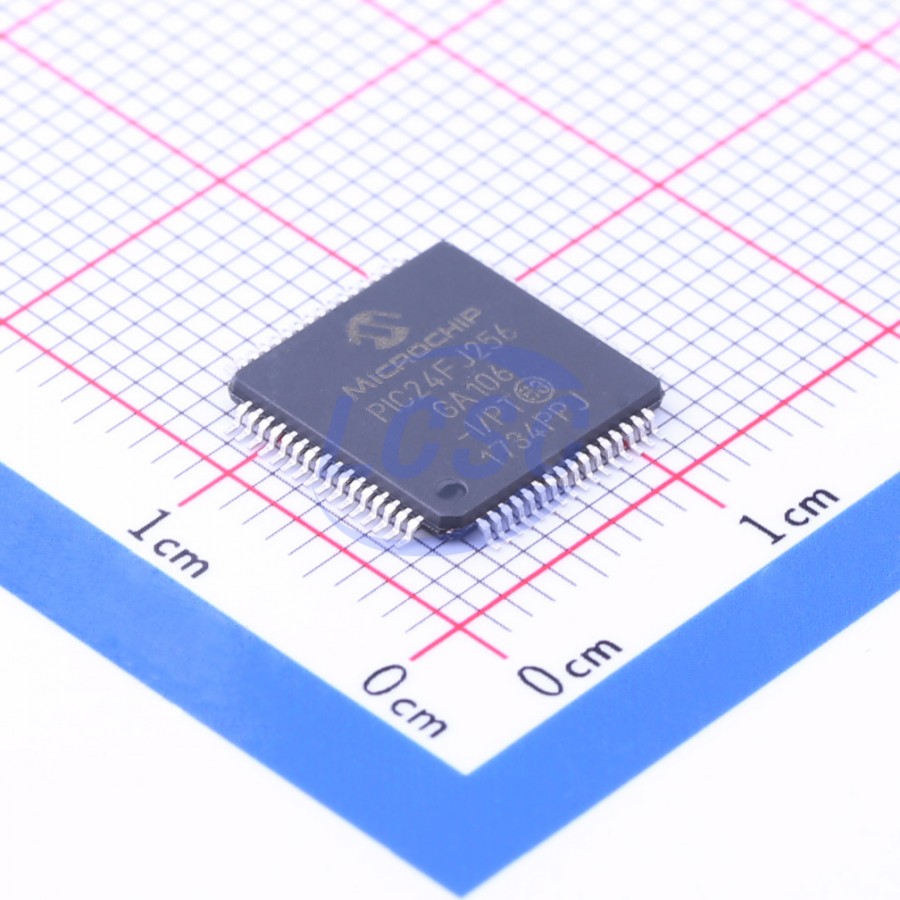

PIC24FJ256GA106T-I/PT

64/80/100-Pin, 16-Bit, General Purpose Flash Microcontrollers with Peripheral Pin Select

Key features

• On-Chip 2.5V Voltage Regulator
• Switch between Clock Sources in Real Time
• Idle, Sleep and Doze modes with Fast Wake-up and Two-Speed Start-up
• Run mode: 1 mA/MIPS, 2.0V Typical
• Standby Current with 32 kHz Oscillator: 2.6 μA, 2.0V Typical
• Modified Harvard Architecture
• Up to 16 MIPS Operation at 32 MHz
• 8 MHz Internal Oscillator
• 17-Bit x 17-Bit Single-Cycle Hardware Multiplier
• 32-Bit by 16-Bit Hardware Divider
• 16 x 16-Bit Working Register Array
• C Compiler Optimized Instruction Set Architecture with Flexible Addressing modes
• Linear Program Memory Addressing, Up to 12 Mbytes
• Linear Data Memory Addressing, Up to 64 Kbytes
• Two Address Generation Units for Separate Read and Write Addressing of Data Memory
• 10-Bit, Up to 16-Channel Analog-to-Digital (A/D) Converter at 500 ksps: Conversions available in Sleep mode
• Three Analog Comparators with Programmable Input/ Output Configuration
• Charge Time Measurement Unit (CTMU)
• Peripheral Pin Select: Allows independent I/O mapping of many peripherals at run time; Continuous hardware integrity checking and safety interlocks prevent unintentional configuration changes; Up to 46 available pins (100-pin devices)
• Three 3-Wire/4-Wire SPI modules (supports 4 Frame modes) with 8-Level FIFO Buffer
• Three I²C modules support Multi-Master/Slave modes and 7-Bit/10-Bit Addressing
• Four UART modules: Supports RS-485, RS-232, LIN/J2602 protoco
