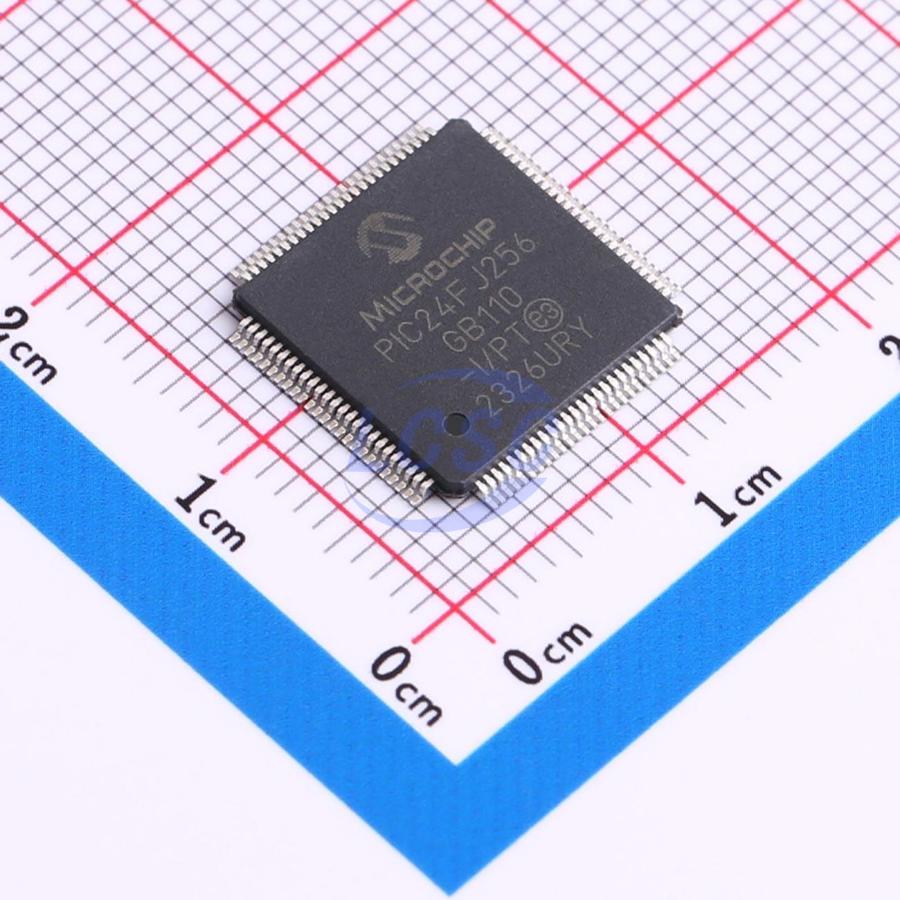

PIC24FJ256GB110-I/PT

PIC 16 Bit 32MHz TQFP-100(12x12) Microcontrollers RoHS

TQFP-100(12x12)ROHS3 CompliantActive

16-Bit Flash Microcontrollers with USB On-The-Go (OTG)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

18 in stock

#C635638

Stock & price checked 8 days ago

Quantity (min 1)

1 × ₹1,124.54

₹1,124.54

excl. GST

₹1,326.96 incl. 18% GST

PIC24FJ256GB110-I/PT

₹1,124.54 for 1 + GST

Specifications

On-Chip 2.5V Voltage Regulator
Switch between Clock Sources in Real Time
Idle, Sleep and Doze modes with Fast Wake-up and Two-Speed Start-up
Run mode: 1 mA/MIPS, 2.0V Typical
Sleep mode Current Down to 100 nA Typical Standby Current with 32 kHz Oscillator: 2.5 μA, 2.0V typical
USB v2.0 On-The-Go (OTG) Compliant
Dual Role Capable – can act as either Host or Peripheral
Low-Speed <1.5 Mb/s> and Full-Speed (12 Mb/s) USB Operation in Host mode
Full-Speed USB Operation in Device mode
High-Precision PLL for USB
Internal Voltage Boost Assist for USB Bus Voltage Generation
Interface for Off-Chip Charge Pump for USB Bus Voltage Generation
Supports up to 32 Endpoints (16 bidirectional): - USB Module can use any RAM location on the device as USB endpoint buffers
On-Chip USB Transceiver with On-Chip Voltage Regulator
Interface for Off-Chip USB Transceiver
Supports Control, Interrupt, Isochronous and Bulk Transfers
On-Chip Pull-up and Pull-Down Resistors
Modified Harvard Architecture
Up to 16 MIPS Operation at 32 MHz
8 MHz Internal Oscillator
17-Bit x 17-Bit Single-Cycle Hardware Multiplier
32-Bit by 16-Bit Hardware Divider
16 x 16-Bit Working Register Array
C Compiler Optimized Instruction Set Architecture with Flexible Addressing modes
Linear Program Memory Addressing, Up to 12 Mbytes
Linear Data Memory Addressing, Up to 64 Kbytes
Two Address Generation Units for Separate Read and Write Addressing of Data Memory
10-Bit, Up to 16-Channel Analog-to-Digital (A/D)
