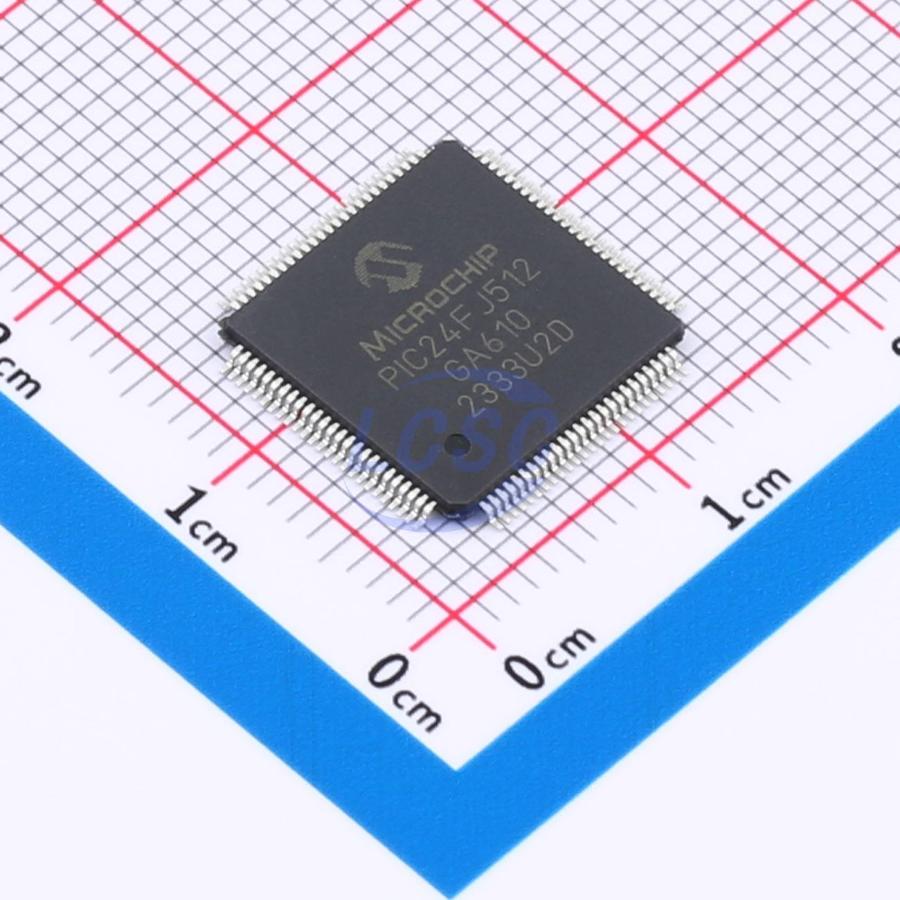

PIC24FJ512GA610-I/PT

Key features

• High-Performance CPU:
• Modified Harvard Architecture
• Largest Program Memory Available for PIC24 (1024 Kbytes) for the Most Complex Applications
• 32 Kbytes SRAM for All Part Variants
• Up to 16 MIPS Operation @ 32 MHz
• 8 MHz Fast RC Internal Oscillator:
• 96 MHz PLL option
• Multiple clock divide options
• Run-time self-calibration capability for maintaining better than ±0.20% accuracy
• Fast start-up
• 17-Bit x 17-Bit Single-Cycle Hardware Fractional/Integer Multiplier
• 32-Bit by 16-Bit Hardware Divider
• 16-Bit x 16-Bit Working Register Array
• C Compiler Optimized Instruction Set Architecture
• Two Address Generation Units for Separate Read and Write Addressing of Data Memory
• Universal Serial Bus Features:
• USB v2.0 On-The-Go (OTG) Compliant
• Dual Role Capable - Can Act as Either Host or Peripheral
• Low-Speed (1.5 Mb/s) and Full-Speed (12 Mb/s) USB Operation in Host mode
• Full-Speed USB Operation in Device mode
• High-Precision PLL for USB
• USB Device mode Operation from FRC Oscillator - No Crystal Oscillator Required
• Supports up to 32 Endpoints (16 bidirectional):
• USB module can use any RAM location on the device as USB endpoint buffers
• On-Chip USB Transceiver with Interface for Off-Chip USB Transceiver
• Supports Control, Interrupt, Isochronous and Bulk Transfers
• On-Chip Pull-up and Pull-down Resistors
• Analog Features:
• 10/12-Bit, up to 24-Channel Analog-to-Digital (A/D) Converter:
• 12-bit conversion rate of 200 ksps
• Auto-scan and threshold compare features
• Conversion available during Sleep
• Three Rail-to-Rail, Enhanced Analog Comparators with Programmable Input/Output Configuration
• Charge Time Measurement Unit (CTMU):
• Used for capacitive touch sensing, up to 24 channels
• Time measurement down to 100 ps resolution
• Low-Power Features:
• Sleep and idle modes Selectively Shut Down Peripherals and/or Core for Substantial Power Reduction and Fast Wake-up
• Doze mode Allows CPU to Run at a Lower Clock Speed than Peripherals
• Alternate Clock modes Allow On-the-Fly Switching to a Lower Clock Speed for Selective Power Reduction
• Wide Range Digitally Controlled Oscillator (DCO) for Fast Start-up and Low-Power Operation
• Special Microcontroller Features:
• Large, Dual Partition Flash Program Array:
• Capable of holding two independent software applications, including bootloader
• Permits simultaneous programming of one partition while executing application code from the other
• Allows run-time switching between Active Partitions
• 10,000 Erase/Write Cycle Endurance, Typical
• Data Retention: 20 Years Minimum
• Self-Programmable under Software Control
• Supply Voltage Range of 2.0V to 3.6V
• Operating Ambient Temperature from -40°C to +85°C for Industrial and from -40°C to +125°C for Extended Temperature Range Devices
• On-Chip Voltage Regulators (1.8V) for Low-Power Operation
• Programmable Reference Clock Output
• In-Circuit Serial Programming (ICSP) and In-Circuit Emulation (ICE) via Two Pins
• JTAG Boundary Scan Support
• Fail-Safe Clock Monitor Operation:
• Detects clock failure and switches to on-chip, low-power RC Oscillator
• Power-on Reset (POR), Brown-out Reset (BOR), Power-up Timer (PWRT) and Oscillator Start-up Timer (OST)
• Programmable High/Low-Voltage Detect (H/LVD)
• Flexible Watchdog Timer (WDT) with its Own RC Oscillator for Reliable Operation
• Peripheral Features:
• Peripheral Pin Select (PPS) - Allows Independent I/O Mapping of Many Peripherals
• Up to Five External Interrupt Sources
• Configurable Interrupt-on-Change on All I/O Pins:
• Each pin is independently configurable for rising edge or falling edge change detection
• Eight-Channel DMA Supports All Peripheral modules:
• Minimizes CPU overhead and increases data throughput
• Five 16-Bit Timers/Counters with Prescalers:
• Can be paired as 32-bit timers/counters
• Six Input Capture modules, Each with a Dedicated 16-Bit Timer
• Six Output Compare/PWM modules, Each with a Dedicated 16-Bit Timer
• Four Single Output CCPs (SCCPs) and Three Multiple Output CCPs (MCCPs):
• Independent 16/32-bit time base for each module
• Internal time base and period registers
• Legacy PIC24F Capture and Compare modes (16 and 32-bit)
• Special Variable Frequency Pulse and Brushless DC Motor Output modes
• Enhanced Parallel Master/Slave Port (EPMP/EPSP)
• Hardware Real-Time Clock/Calendar (RTCC) with Timestamping
• Three 3-Wire/4-Wire SPI modules:
• Support four Frame modes
• Eight-level FIFO buffer
• Support I2S operation
• Three I2C modules Support Multi-Master/Slave mode and 7-Bit/10-Bit Addressing
• Six UART modules:
• Support RS-485, RS-232 and LIN/J2602
• On-chip hardware encoder/decoder for IrDA
• Auto-wake-up on Auto-Baud Detect (ABD)
• Four-level deep FIFO buffer
• Programmable 32-Bit Cyclic Redundancy Check (CRC) Generator
• Four Configurable Logic Cells (CLCs):
• Two inputs and one output, all mappable to peripherals or I/O pins
• AND/OR/XOR logic and D/JK flip-flop functions
• High-Current Sink/Source (18 mA/18 mA) on All I/O Pins
• Configurable Open-Drain Outputs on Digital I/O Pins
• 5.5V Tolerant Inputs on Multiple I/O Pins
