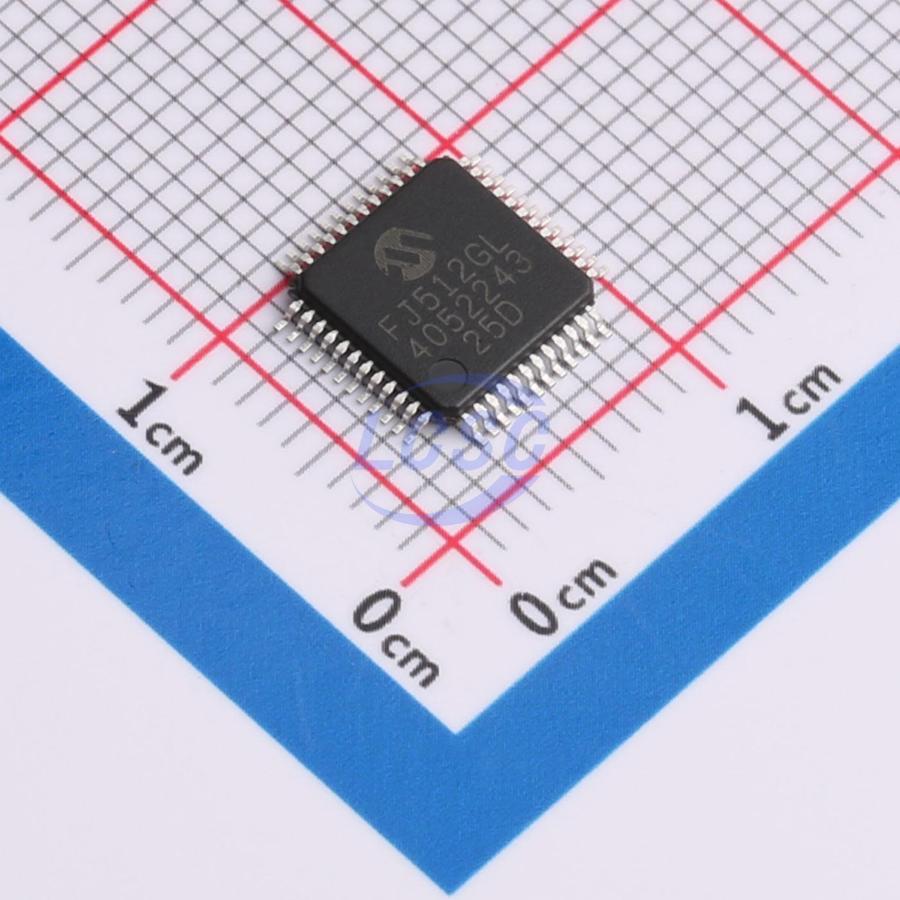

PIC24FJ512GL405-I/PT

Key features

• Modified Harvard Architecture
• 512 Kbytes Flash Memory 32 Kbytes RAM Up to 16 MIPS Operation @ 32 MHz
• 17-Bit x 17-Bit Single-Cycle Hardware Fractional/Integer Multiplier
• 32-Bit by 16-Bit Hardware Divider
• 16-Bit x 16-Bit Working Register Array C Compiler Optimized Instruction Set Architecture Two Address Generation Units for Separate Read and Write Addressing of Data Memory
• 64 Segments and 8 Commons Supporting up to 480 Pixels
• LCD Charge Pump with 5 μA Low Power Core-Independent LCD Animation Operation in Sleep Mode
• Up to 24-Channel, Software Selectable 10/12-Bit Analog-to-Digital Converter:
• 12-bit, 350K samples/second conversion rate (single Sample-and-Hold)
• 10-bit, 400K samples/second conversion rate (single Sample-and-Hold)
• Sleep mode operation
• Low-voltage boost for input
• Band gap reference input feature
• Core-independent windowed threshold compare feature
• Auto-scan feature
• Three Analog Comparators with Input Multiplexing: Programmable reference voltage for comparators
• 10-Bit, 1 Msps DAC with Buffered Output
• Sleep and Idle modes Selectively Shut Down: Peripherals and/or core for substantial power reduction and fast wake-up
• Doze mode Allows CPU to Run at a Lower Clock Speed than Peripherals
• Alternate Clock modes Allow On-the-Fly: Switching to a lower clock speed for selective power reduction
• Retention Sleep with On-Chip Ultra Low-Power Retention Regulator
• Fail-Safe Clock Monitor Operation: Detects clock failure and switches to on-chip, low-power RC Oscillator
• Power-on Reset (POR), Brown-out Reset (BOR) Power-up Timer (PWRT) and Oscillator Start-up Timer (OST)
• Programmable High or Low-Voltage Detect (HLVD)
• Flexible Watchdog Timer (WDT) with RC Oscillator for Reliable Operation
• Deadman Timer (DMT) for Safety-Critical Applications
• Programmable 32-Bit Cyclic Redundancy Check (CRC) Generator
• Flash Configurable as OTP by ICSP Write Inhibit
• CodeGuard Security ECC Flash Memory with Fault Injection: Single Error Correction (SEC) Double-Error Detection (DED)
• Customer OTP Memory Unique Device Identifier (UDID), 120-Bit Unique ID
• Supply Voltage Range of 2.0V to 3.6V
• Operating Ambient Temperature Range of -40°C to +125°C
• On-Chip Voltage Regulators (1.8V) for Low-Power Operation
• Large, Dual Partition Flash Program Array:
• The device’s Flash memory can be configured into two physical sections or a single physical section
• Capable of holding two independent software applications, including bootloader
• Permits simultaneous programming of one partition while executing application code from the other
• Allows run-time switching between Active Partitions
• Flash Memory: 10,000 erase/write cycle endurance, typical Data retention: 20 years minimum
• Self-programmable under software control
• Flash OTP emulation
• 8 MHz Fast RC Internal Oscillator: Multiple clock divide options Fast start-up
• 96 MHz PLL Option
• Programmable Reference Clock Output
• In-Circuit Serial Programming (ICSP) and In-Circuit Emulation (ICE) via Two Pins
• JTAG Boundary Scan Support
• Independent, Low-Power 32 kHz Timer Oscillator
• Six-Channel DMA Controller: Minimizes CPU overhead and increases data throughput
• Timer1: 16-Bit Timer/Counter with External Crystal Oscillator; Timer1 can Provide an A/D Trigger
• Timer2,3,4,5: 16-Bit Timer/Counter, can Create 32-Bit Timer; Timer3 and Timer5 can Provide an A/D Trigger
• Eight MCCP modules, Each with a Dedicated 16/32-Bit Timer:
• Three 6-output MCCP modules
• Five 2-output MCCP modules
• Four Variable Widths, Serial Peripheral Interface (SPI) Ports on All Devices; Three Operation modes:
• Three-wire SPI (supports all four SPI modes)
• Up to 32-byte deep FIFO buffer
• I2S mode
• Speed up to 24 MHz
• Three I²C Master and Slave w/Address Masking, PMBus and IPMI Support
• Six UART modules:
• LIN/J2602 bus support (auto-wake-up, Auto-Baud Detect, Break character support)
• RS-232 and RS-485 support
• IrDA mode (hardware encoder/decoder functions)
• Five External Interrupt Pins
• Hardware Real-Time Clock and Calendar (RTCC)
• Peripheral Pin Select (PPS) allows Independent I/O Mapping of Many Peripherals
• Configurable Interrupt-on-Change on All I/O Pins: Each pin is independently configurable for rising edge or falling edge change detection
• Reference Clock Output with Programmable Divider
• Four Configurable Logic Cell (CLC) Blocks:
• Two inputs and one output, all mappable to peripherals or I/O pins
• AND/OR/XOR logic and D/JK flip-flop functions
