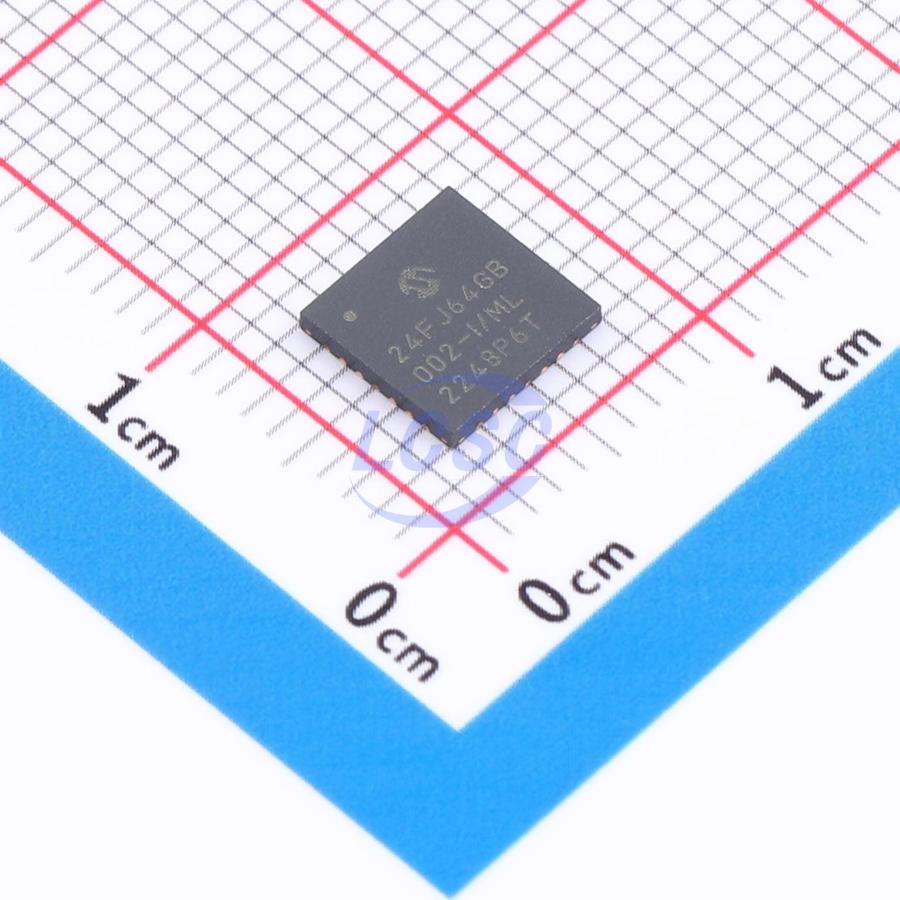

PIC24FJ64GB002-I/ML

Key features

• USB v2.0 On-The-Go (OTG) Compliant
• Dual Role Capable – can act as either Host or Peripheral
• Low-Speed (1.5 Mb/s) and Full-Speed (12 Mb/s) USB Operation in Host mode
• Full-Speed USB Operation in Device mode
• High-Precision PLL for USB
• 0.25% Accuracy using Internal Oscillator – No External Crystal Required
• Internal Voltage Boost Assist for USB Bus Voltage Generation
• Interface for Off-Chip Charge Pump for USB Bus Voltage Generation
• Supports up to 32 Endpoints (16 bidirectional): USB module can use any RAM location on the device as USB endpoint buffers
• On-Chip USB Transceiver
• Interface for Off-Chip USB Transceiver
• Supports Control, Interrupt, Isochronous and Bulk Transfers
• On-Chip Pull-up and Pull-Down Resistors
• Modified Harvard Architecture
• Up to 16 MIPS Operation @ 32 MHz
• 8 MHz Internal Oscillator with 0.25% Typical Accuracy: 96 MHz PLL - Multiple divide options
• 17-Bit x 17-Bit Single-Cycle Hardware Fractional/integer Multiplier
• 32-Bit by 16-Bit Hardware Divider
• 16 x 16-Bit Working Register Array
• C Compiler Optimized Instruction Set Architecture: 76 base instructions - Flexible addressing modes
• Linear Program Memory Addressing up to 12 Mbytes
• Linear Data Memory Addressing up to 64 Kbytes
• Two Address Generation Units for Separate Read and Write Addressing of Data Memory
• Selectable Power Management modes with nanoWatt XLP Technology for Extremely Low Power: Deep Sleep mode allows near total pow
