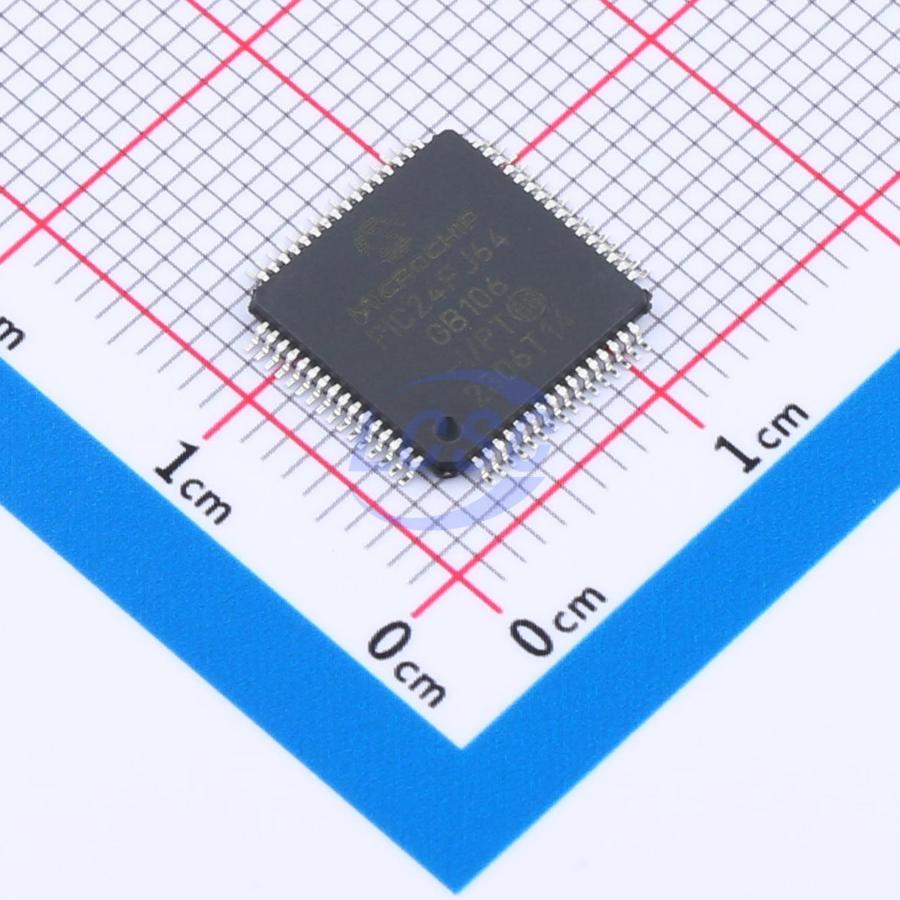

PIC24FJ64GB106-I/PT

Key features

• On-Chip 2.5V Voltage Regulator
• Switch between Clock Sources in Real Time
• Idle, Sleep and Doze modes with Fast Wake-up and Two-Speed Start-up
• Run mode: 1 mA/MIPS, 2.0V Typical
• Sleep mode Current Down to 100 nA Typical
• Standby Current with 32 kHz Oscillator: 2.5 μA, 2.0V typical
• USB v2.0 On-The-Go (OTG) Compliant
• Dual Role Capable – can act as either Host or Peripheral
• Low-Speed <1.5 Mb/s> and Full-Speed (12 Mb/s) USB Operation in Host mode
• Full-Speed USB Operation in Device mode
• High-Precision PLL for USB
• Internal Voltage Boost Assist for USB Bus Voltage Generation
• Interface for Off-Chip Charge Pump for USB Bus Voltage Generation
• Supports up to 32 Endpoints (16 bidirectional): - USB Module can use any RAM location on the device as USB endpoint buffers
• On-Chip USB Transceiver with On-Chip Voltage Regulator
• Interface for Off-Chip USB Transceiver
• Supports Control, Interrupt, Isochronous and Bulk Transfers
• On-Chip Pull-up and Pull-Down Resistors
• Modified Harvard Architecture
• Up to 16 MIPS Operation at 32 MHz
• 8 MHz Internal Oscillator
• 17-Bit x 17-Bit Single-Cycle Hardware Multiplier
• 32-Bit by 16-Bit Hardware Divider
• 16 x 16-Bit Working Register Array
• C Compiler Optimized Instruction Set Architecture with Flexible Addressing modes
• Linear Program Memory Addressing, Up to 12 Mbytes
• Linear Data Memory Addressing, Up to 64 Kbytes
• Two Address Generation Units for Separate Read and Write Addressing of Data Memory
