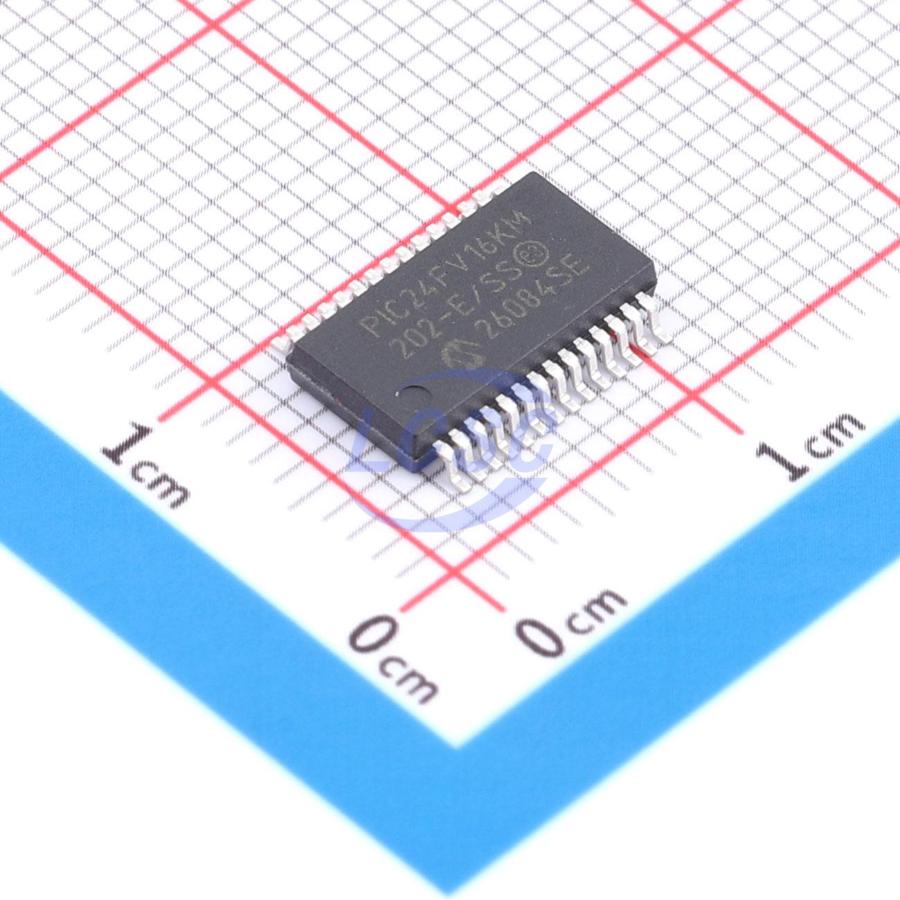

PIC24FV16KM202-E/SS

Key features

• Up to Two 8-Bit Digital-to-Analog Converters (DACs):
• Soft Reset disable function allows DAC to retain its output value through non-VDD Resets
• Support for Idle mode
• Support for left and right justified input data
• Two Operational Amplifiers (Op Amps):
• Differential inputs
• Selectable power/speed levels:
• Low power/low speed
• High power/high speed
• Up to 22-Channel, 10/12-Bit Analog-to-Digital Converter:
• 100k samples/second at 12-bit conversion rate (single Sample-and-Hold)
• Auto-scan with Threshold Detect
• Can operate during Sleep
• Dedicated band gap reference and temperature sensor input
• Up to Three Rail-to-Rail Analog Comparators:
• Programmable reference voltage for comparators
• Band gap reference input
• Flexible input multiplexing
• Low-power or high-speed selection options
• Charge Time Measurement Unit (CTMU):
• Capacitive measurement, up to 22 channels
• Time measurement down to 200 ps resolution
• Up to 16 external trigger pairs
• Internal Temperature Sensor with Dedicated A/D Converter Input
• Modified Harvard Architecture
• Operating Speed:
• DC – 32 MHz clock input
• 16 MIPS at 32 MHz clock input
• 8 MHz Internal Oscillator:
• 4x PLL option
• Multiple clock divide options
• Fast start-up
• 17-Bit x 17-Bit Single-Cycle Hardware Fractional/Integer Multiplier
• 32-Bit by 16-Bit Hardware Divider
• 16 x 16-Bit Working Register Array
• C Compiler Optimized Instruction Set Architecture
• 24-Bit Wide Instructions
• 16-Bit Wide Data Path
• Linear Program Memory Addressing, Up to 6 Mbytes
• Linear Data Memory Addressing, Up to 64 Kbytes
• Two Address Generation Units (AGUs) for Separate Read and Write Addressing of Data Memory
• 16 or 32-Bit Time Base
• 16 or 32-Bit Capture:
• 4-deep capture buffer
• 16 or 32-Bit Compare:
• Single Edge Compare modes
• Dual Edge Compare/PWM modes
• Center-Aligned Compare mode
• Variable Frequency Pulse mode
• Single Output Steerable mode (MCCP only)
• Brush DC Forward and Reverse modes (MCCP only)
• Half-Bridge with Dead-Time Delay (MCCP only)
• Push-Pull PWM mode (MCCP only)
• Auto-Shutdown with Programmable Source and Shutdown State
• Programmable Output Polarity
• High-Current Sink/Source, 18 mA/18 mA All Ports
• Independent Ultra-Low Power, 32 kHz Timer Oscillator
• Up to Two Master Synchronous Serial Ports (MSSPs) with SPI and I²C modes:
• In SPI mode:
• User-configurable SCKx and SDOx pin outputs
• Daisy-chaining of SPI Slave devices
• In I²C mode:
• Serial clock synchronization (clock stretching)
• Bus collision detection and will arbitrate accordingly
• Support for 16-bit read/write interface
• Up to Two Enhanced Addressable UARTs:
• LIN/J2602 bus support (auto-wake-up, Auto-Baud Detect, Break character support)
• High and low speed (SCI)
• IrDA mode (hardware encoder/decoder function)
• Two External Interrupt Pins
• Hardware Real-Time Clock and Calendar (RTCC)
• Configurable Reference Clock Output (REFO)
• Two Configurable Logic Cells (CLCs)
• Up to Two Single Output Capture/Compare/PWM (SCCP) modules and Up to Three Multiple Output Capture/Compare/PWM (MCCP) modules
• Wide Operating Voltage Range Options:
• 1.8V to 3.6V (PIC24F devices)
• 2.0V to 5.0V (PIC24FV devices)
• Selectable Power Management modes:
• Idle: CPU shuts down, allowing for significant power reduction
• Sleep: CPU and peripherals shut down for substantial power reduction and fast wake-up
• Retention Sleep mode: PIC24FV devices can enter Sleep mode, employing the Retention Regulator, further reducing power consumption
• Doze: CPU can run at a lower frequency than peripherals, a user-programmable feature
• Alternate Clock modes allow on-the-fly switching to a lower clock speed for selective power reduction
• Fail-Safe Clock Monitor:
• Detects clock failure and switches to on-chip, low-power RC Oscillator
• Ultra Low-Power Wake-up Pin Provides an External Trigger for Wake from Sleep
• 10,000 Erase/Write Cycle Endurance Flash Program Memory, Typical
• 100,000 Erase/Write Cycle Endurance Data EEPROM, Typical
• Flash and Data EEPROM Data Retention: 20 Years Minimum
• Self-Programmable under Software Control
• Power-on Reset (POR), Power-up Timer (PWRT) and Oscillator Start-up Timer (OST)
• Watchdog Timer (WDT) with its Own On-Chip RC Oscillator for Reliable Operation
• On-Chip Regulator for 5V Operation
• Selectable Windowed WDT Feature
• Selectable Oscillator Options including:
• 4x Phase-Locked Loop (PLL)
• 8 MHz (FRC) Internal RC Oscillator:
• HS/EC, High-Speed Crystal/Resonator Oscillator or External Clock
• In-Circuit Serial Programming (ICSP) and In-Circuit Emulation (ICE) – via Two Pins
• In-Circuit Debugging
• Programmable High/Low-Voltage Detect (HLVD) module
• Programmable Brown-out Reset (BOR):
• Software enable feature
• Configurable shutdown in Sleep
• Auto-configures power mode and sensitivity based on device operating speed
• LPBOR available for re-arming of the POR
