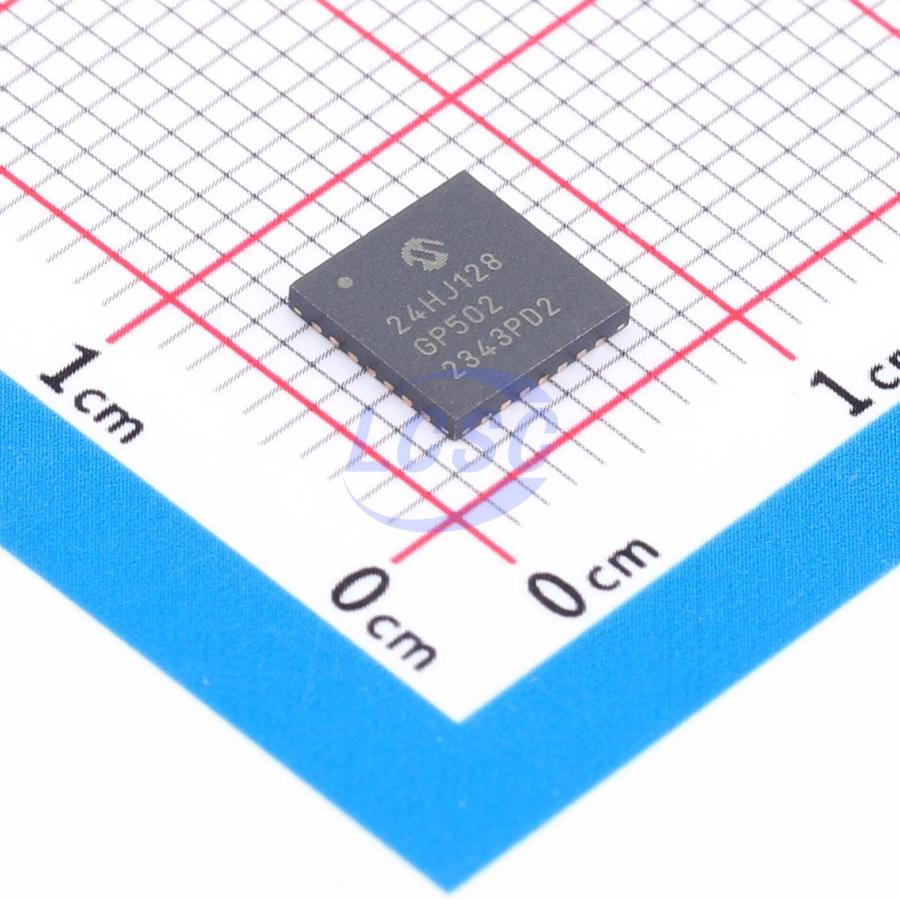

PIC24HJ128GP502-E/MM
PIC 16 Bit QFN-28-EP(6x6) Microcontrollers RoHS
QFN-28-EP(6x6)ROHS3 CompliantActive
16-bit Microcontrollers with Advanced Analog
- Manufacturer
- MICROCHIP
- Manufacturer part #
- PIC24HJ128GP502-E/MM
- Store part #
- C640194
- Package / case
- QFN-28-EP(6x6)
- Category
- Microcontrollers
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
6 in stock
#C640194
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹2,438.75 | ₹2,438.75 |
| 10+ | ₹2,326.85 | ₹23,268.50 |
| 30+ | ₹2,132.90 | ₹63,987.00 |
| 100+ | ₹1,963.76 | ₹1,96,376.00 |
1 × ₹2,438.75
₹2,438.75
excl. GST
₹2,877.73 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 61 per tube
PIC24HJ128GP502-E/MM
₹2,438.75 for 1 + GST
Specifications
- Number of I/O
- 21
- Operating Temperature
- -40℃~+125℃
- Program Memory Type
- FLASH
- Voltage - Supply
- 3V~3.6V
- Program Storage Size
- 128KB
- CPU Core
- PIC
- Core Size
- 16 Bit
- Oscillator Type
- Built-in
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- 3A991A2
- Packaging
- Tube-packed
- Standard pack
- 61 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 8.233 g
Overview
Key features
- 3.0V to 3.6V, -40°C to +150°C, DC to 20 MIPS
- 3.0V to 3.6V, -40°C to +125°C, DC to 40 MIPS
- 2% internal oscillator
- Programmable PLL and oscillator clock sources
- Fail-Safe Clock Monitor (FSCM)
- Independent Watchdog Timer
- Low-power management modes
- Fast wake-up and start-up
- Single-cycle MUL plus hardware divide
- 10/12-bit ADC with 1.1Msps/500 ksps conversion rate:
- Up to 13 ADC input channels and four S&H
- Flexible/Independent trigger sources
- 150 ns Comparators:
- Up to two Analog Comparator modules
- 4-bit DAC with two ranges for Analog Comparators
- Software remappable pin functions
- 5V-tolerant pins
- Selectable open drain and internal pull-ups
- Up to 5 mA overvoltage clamp current/pin
- Multiple external interrupts
- Cyclic Redundancy Check (CRC) module
- Up to five 16-bit and up to two 32-bit Timers/Counters
- Up to four Input Capture (IC) modules
- Up to four Output Compare (OC) modules
- Real-Time Clock and Calendar (RTCC) module
- Parallel Master Port (PMP)
- Two UART modules (10 Mbps)
- Supports LIN 2.0 protocols
- RS-232, RS-485, and IrDA support
- Two 4-wire SPI modules (15 Mbps)
- Enhanced CAN (ECAN) module (1 Mbaud) with 2.0B support
- I²C module (100K, 400K and 1Mbaud) with SMBus support
- 8-channel hardware DMA with no CPU stalls or overhead
- UART, SPI, ADC, ECAN, IC, OC, INT0
- AEC-Q100 REVG (Grade 0 [-40°C to +150°C])
- Class B Safety Library, IEC 60730, VDE certified
- In-circuit and in-application programming
- Two program breakpoints
- Trace and run-time watch
