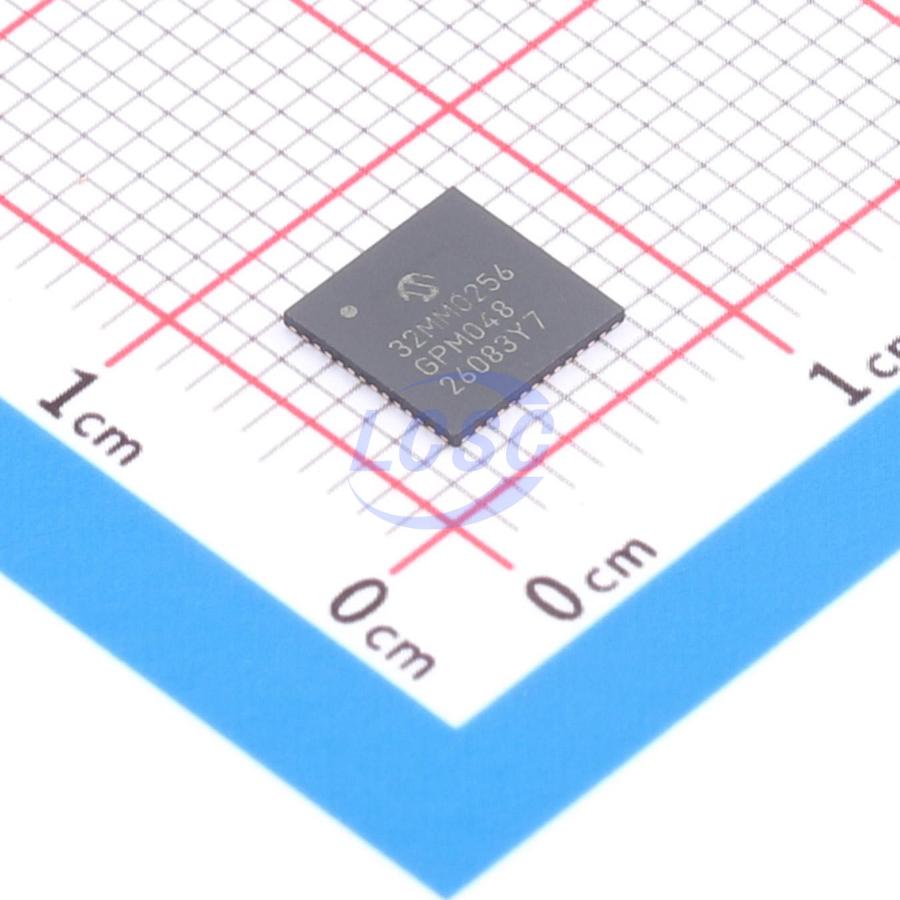

PIC32MM0256GPM048T-I/M4

Key features

• Up to 256K Flash Memory
• 20,000 erase/write cycle endurance
• 20 years minimum data retention
• Self-programmable under software control
• Up to 32K SRAM Memory
• Multiple Interrupt Vectors with Individually Programmable Priority
• Fail-Safe Clock Monitor mode
• Configurable Watchdog Timer with On-Chip, Low-Power RC Oscillator
• Programmable Code Protection
• Selectable Oscillator Options Including
• High-precision, 8 MHz Internal RC (FRC) Oscillator
• 2x/3x/4x/6x/12x/24x PLL, which can be clocked from FRC or the Primary Oscillator
• Primary high-speed, crystal/resonator oscillator or external clock
• USB 2.0 Compliant Full-Speed and Low-Speed Device, Host and On-The-Go (OTG) Controller
• Dedicated DMA
• Device mode operation from FRC oscillator; no crystal oscillator required
• Atomic Set, Clear and Invert Operation on Select Peripheral Registers
• High-Current Sink/Source
• Independent, Low-Power 32 kHz Timer Oscillator
• Three 4-Wire SPI modules
• 16-byte FIFO
• Variable width
• I2S mode
• Three I2C Master and Slave w/Address Masking and IPMI Support
• Three Enhanced Addressable UARTs
• RS-232, RS-485 and LIN/J2602 support
• IrDA with on-chip hardware encoder and decoder
• External Edge and Level Change Interrupt on All Ports
• Hardware Real-Time Clock and Calendar (RTCC)
• Up to 24 Peripheral Pin Select (PPS) Remappable Pins
• 21 Total 16-Bit Timers
• Three dedicated 16-bit timers/counters
• Two can be concatenated to form a 32-bit timer
• Two additional 16-bit timers in each MCCP and SCCP module, totaling 18
• Capture/Compare/PWM/Timer modules
• Two 16-bit timers or one 32-bit timer in each module
• PWM resolution down to 21 ns
• Three Multiple Output (MCCP) modules
• Flexible configuration as PWM, input capture, output compare or timers
• Six PWM outputs
• Programmable dead time
• Auto-shutdown
• Six Single Output (SCCP) modules
• Flexible configuration as PWM, input capture, output compare or timers
• Single PWM output
• Reference Clock Output (REFO)
• Four Configurable Logic Cells (CLCs) with Internal Connections to Select Peripherals and PPS
• Four-Channel Hardware DMA with Automatic Data Size Detection and CRC Engine
• Two Programming and Debugging Interfaces
• Two-wire ICSP interface with non-intrusive access and real-time data exchange with application
• Four-wire MIPS standard Enhanced JTAG interface
• IEEE Standard 1149.2 Compatible (JTAG) Boundary Scan
• Three Analog Comparators with Input Multiplexing
• Programmable High/Low-Voltage Detect (HLVD)
• 5-Bit Comparator Voltage Reference DAC with Pin Output
• Up to 24-Channel, Software-Selectable 10/12-Bit SAR Analog-to-Digital Converter (ADC)
• 12-bit 200K samples/second conversion rate (single Sample-and-Hold)
• 10-bit 300K samples/second conversion rate (single Sample-and-Hold)
• Sleep mode operation
• Low-voltage boost for input
• Band gap reference input feature
• Windowed threshold compare feature
• Auto-scan feature
