MICROCHIP

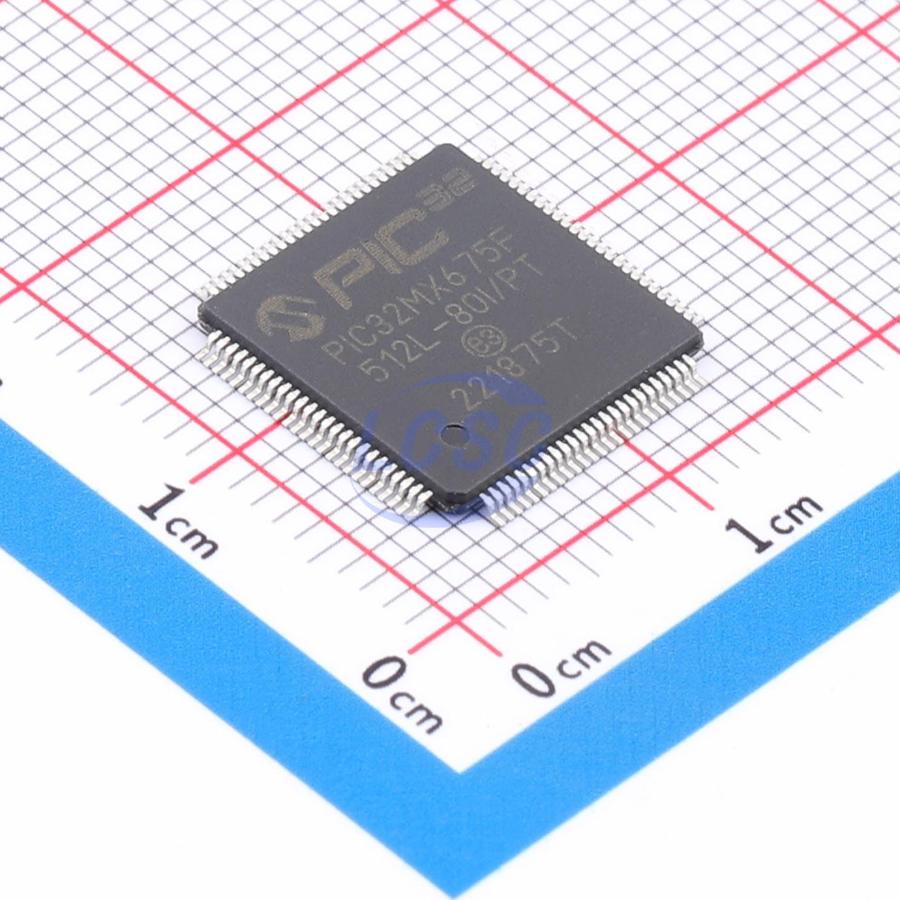

PIC32MX675F512L-80I/PT

MIPS32 M4K 32 Bit 80MHz TQFP-100(12x12) Microcontrollers RoHS

TQFP-100(12x12)ROHS3 CompliantActive

32-bit Microcontrollers with Graphics Interface, USB, CAN, and Ethernet

Manufacturer: MICROCHIP
Manufacturer part #: PIC32MX675F512L-80I/PT
Store part #: C556920
Package / case: TQFP-100(12x12)
Category: Microcontrollers
Packaging: Tray

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

5 in stock

#C556920

Stock & price checked 34 h ago

Quantity	Unit price	Pack price
1+	₹3,315.60	₹3,315.60
10+	₹3,208.30	₹32,083.00

Quantity (min 1)

1 × ₹3,315.60

₹3,315.60

excl. GST

₹3,912.41 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 119 per tray

PIC32MX675F512L-80I/PT

₹3,315.60 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

ADC (Bit): 10bit
Number of I/O: 85
Operating Temperature: -40℃~+85℃
Voltage - Supply: 2.3V~3.6V
Program Memory Type: FLASH
Program Storage Size: 512KB
CPU Core: MIPS32 M4K
Core Size: 32 Bit
CPU Maximum Speed: 80MHz
Oscillator Type: Built-in

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: 3A991A2
Packaging: Tray
Standard pack: 119 / Tray
Sold per: Piece
Minimum order: 1
Unit weight: 0.882 g

Overview

Applications

External graphics controller interface
Direct LCD driving via DMA and internal/external memory
Full-speed OTG controller compliant with USB 2.0
10/100 Mbps Ethernet MAC with MII and RMII interfaces
CAN module: 2.0B Active with DeviceNet addressing support
Six UART modules (20 Mbps): LIN 2.1 protocol and IrDA support
Up to four 4-wire SPI modules (25 Mbps)
Up to five I2C modules (up to 1 Mbaud) with SMBus support
Parallel Master Port (PMP)

Key features

2.3V to 3.6V, -40℃ to +105℃, DC to 80 MHz
MIPS16e mode for up to 40% smaller code size
Code-efficient (C and Assembly) architecture
Single-cycle (MAC) 32×16 and two-cycle 32×32 multiply
0.9% internal oscillator (on some variants)
Programmable PLLs and oscillator clock sources
Fail-Safe Clock Monitor (FSCM)
Independent Watchdog Timer
Fast wake-up and start-up
Low-power management modes (Sleep and Idle)
Integrated Power-on Reset, Brown-out Reset
0.5 mA/MHz dynamic current (typical)
41 μA IPD current (typical)
External graphics interface with up to 34 Parallel Master Port (PMP) pins
Interface to external graphics controller
Capable of driving LCD directly with DMA and internal or external memory
10-bit 1 Msps rate with one Sample and Hold (S&H)
16 analog inputs
Can operate during Sleep mode
Flexible and independent ADC trigger sources
Two dual-input Comparator modules
Programmable references with 32 voltage points
Five General Purpose Timers
Five 16-bit and up to two 32-bit Timers/Counters
Five Output Compare (OC) modules
Five Input Capture (IC) modules
Real-Time Clock and Calendar (RTCC) module
USB 2.0-compliant Full-Speed OTG controller
10/100 Mbps Ethernet MAC with MII and RMII interface
CAN module: 2.0B Active with DeviceNet addressing support
Six UART modules (20 Mbps)
Supports LIN 2.1 protocols and IrDA support
Up to four 4-wire SPI modules (25 Mbps)
Up to five I²C modules (up to 1 Mbaud) with SMBus support
Parallel Master Port (PMP)
Up to eight channels of hardware DMA with automatic data size detection
32-bit Programmable Cyclic Redundancy Check (CRC)
Six additional channels dedicated to USB, Ethernet and CAN modules
15 mA or 10 mA source/sink for standard VOH/VOL and up to 22 mA for non-standard VOH1
5V-tolerant pins
Selectable open drain and pull-ups
External interrupts
Class B Safety Library, IEC 60730
In-circuit and in-application programming
4-wire MIPS Enhanced JTAG interface
Unlimited program and six complex data breakpoints
IEEE 1149.2-compatible (JTAG) boundary scan
