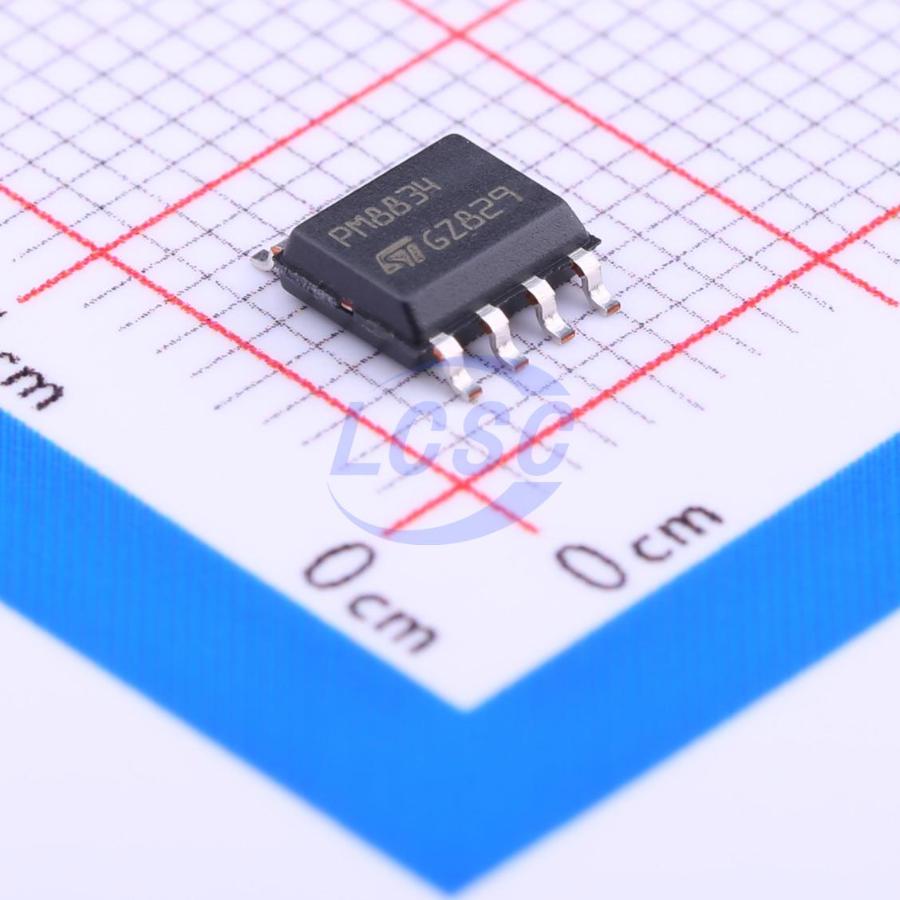

PM8834TR
5V~18V 5A 4A SO-8 Gate Drivers RoHS
4 A dual low-side MOSFET driver
- Manufacturer
- ST
- Manufacturer part #
- PM8834TR
- Store part #
- C221495
- Package / case
- SO-8
- Category
- Gate Drivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,715 in stock
#C221495
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹48.41 | ₹242.05 |
| 50+ | ₹37.53 | ₹1,876.50 |
| 150+ | ₹32.86 | ₹4,929.00 |
| 500+ | ₹27.06 | ₹13,530.00 |
| 2,500+ | ₹24.46 | ₹61,150.00 |
| 5,000+ | ₹22.91 | ₹1,14,550.00 |
5 × ₹48.41
₹242.05
excl. GST
₹285.62 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
PM8834TR
₹242.05 for 5 + GST
Specifications
- Input Logic Level - Low
- 800mV~1.1V
- Low Level Delay Time
- 25ns
- High Level Delay Time
- 30ns
- Quiescent Current
- 3.5mA
- Input Logic Level - High
- 2.2V~2.5V
- Voltage - Supply
- 5V~18V
- Operating Temperature
- -40℃~+105℃
- Driven Configuration
- Low Side
- Current - Output Low(IOL)
- 5A
- Rise Time
- 10ns
- Fall Time
- 35ns
- Features
- Enable shutdown;Interleaved conduction protection
- Current - Output High(IOH)
- 4A
- Load Type
- MOSFET;IGBT
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.194 g
Overview
The PM8834 is a flexible, high-frequency dual low-side driver specifically designed to work with high capacitive MOSFETs and IGBTs. Both PM8834 outputs can sink and source 4 A independently. A higher driving current (up to 8 A) can be obtained by connecting the two PWM outputs in parallel. The PM8834 provides two independent enable signals that can be used to enable the operation of one or both of the output lines. The PM8834 works with a CMOS/TTL-compatible PWM signal.
Applications
- DC-DC converters
- Class-D switching amplifiers
Key features
- Dual independent low-side MOSFETs with 4 A sink and source capability
- Independent enable
- Driver output parallelability for higher driving capability
- Mutual propagation delays: low
- 5 V - 18 V CMOS/TTL compatible input levels
- Wide input voltage range
- Embedded drivers with anti-cross conduction protection
- Low bias switching currents
- Wide operative temperature range: -40 °C to 105 °C
