NexperiaDatasheet (PDF)

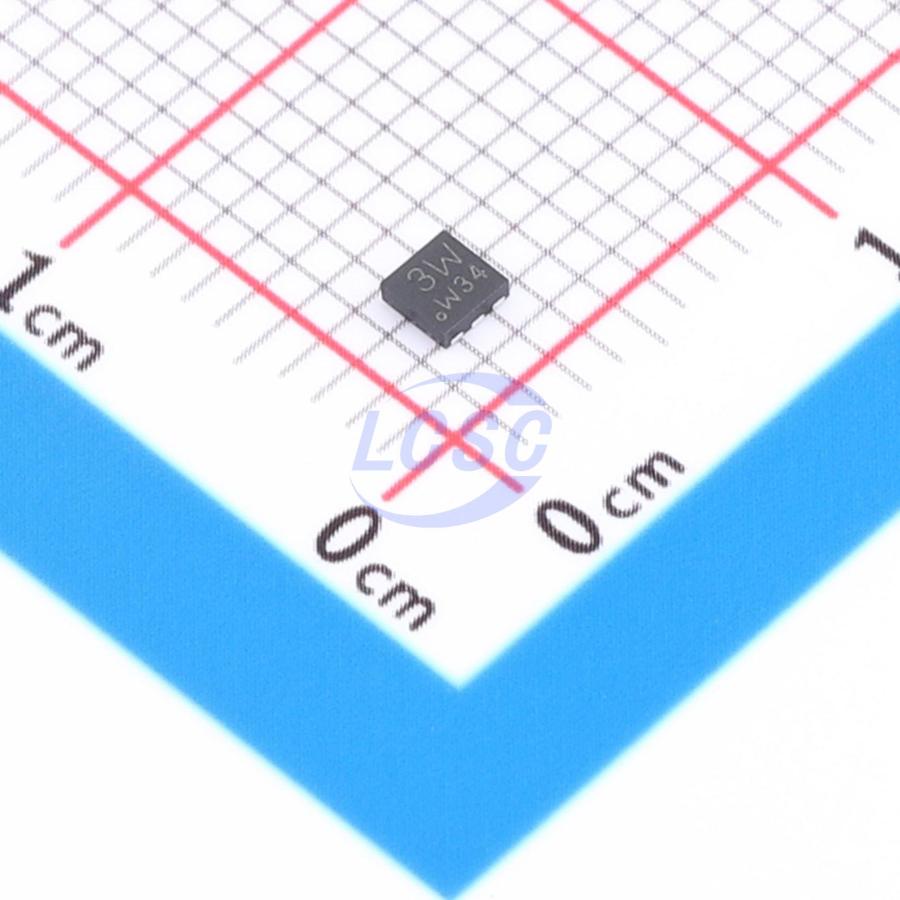

PMPB30XPEX
3.8W 20V 8.5A 34mΩ@4.5V 1 P-Channel P-Channel SOT-1220 Single FETs, MOSFETs RoHS
SOT-1220ROHS3 CompliantActive
- Manufacturer
- Nexperia
- Manufacturer part #
- PMPB30XPEX
- Store part #
- C553042
- Package / case
- SOT-1220
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
99 in stock
#C553042
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹100.35 | ₹100.35 |
| 10+ | ₹80.37 | ₹803.70 |
| 30+ | ₹70.60 | ₹2,118.00 |
| 100+ | ₹60.61 | ₹6,061.00 |
| 500+ | ₹54.73 | ₹27,365.00 |
| 1,000+ | ₹51.70 | ₹51,700.00 |
1 × ₹100.35
₹100.35
excl. GST
₹118.41 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
PMPB30XPEX
₹100.35 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 184pF
- Ciss-Input Capacitance
- 1.517nF
- Pd - Power Dissipation
- 3.8W
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 20V
- Current - Continuous Drain(Id)
- 8.5A
- Reverse Transfer Capacitance (Crss)
- 133pF
- RDS(on)
- 34mΩ@4.5V
- Number
- 1 P-Channel
- Gate Charge(Qg)
- 12.5nC
- Gate Threshold Voltage (Vgs(th))
- 1V
- Type
- P-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.066 g
Overview
P-channel enhancement-mode FET using trench MOSFET technology, housed in a leadless medium-power DFN2020MD-6 (SOT1220) SMD plastic package.
Applications
- Relay driver - High-speed line driver - High-side load switch - Switching circuit
Key features
- Extended temperature range Tj = 175°C
- Compact leadless ultra-thin SMD plastic package: 2 × 2 × 0.65 mm
- 100% matte tin-plated solderable side pads for optical solder inspection
- ESD protection >2 kV HBM
- Trench MOSFET technology
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | BM20P12A#C42432420BORN · DFN2x2-6L | BORN | DFN2x2-6L | 2,845 | ₹15.94 · 2,845 in stock | View |
 | SIA483ADJ-T1-GE3#C5377599VISHAY · PowerPAKSC-70-6L | VISHAY | PowerPAKSC-70-6L | 5,308 | ₹42.57 · 5,308 in stock | View |
 | PMPB100XPEAX-VB#C52148651VBsemi Elec · DFN-6(2x2) | VBsemi Elec | DFN-6(2x2) | 5 | ₹89.04 · 5 in stock | View |
| PMPB43XPEAX-VB#C52148793VBsemi Elec · DFN-6(2x2) | VBsemi Elec | DFN-6(2x2) | 5 | ₹89.04 · 5 in stock | View | |
 | SIA433EDJ-T1-GE3-VB#C5441253VBsemi Elec · DFN-6(2x2) | VBsemi Elec | DFN-6(2x2) | 14 | ₹84.66 · 14 in stock | View |
