VBsemi ElecDatasheet (PDF)

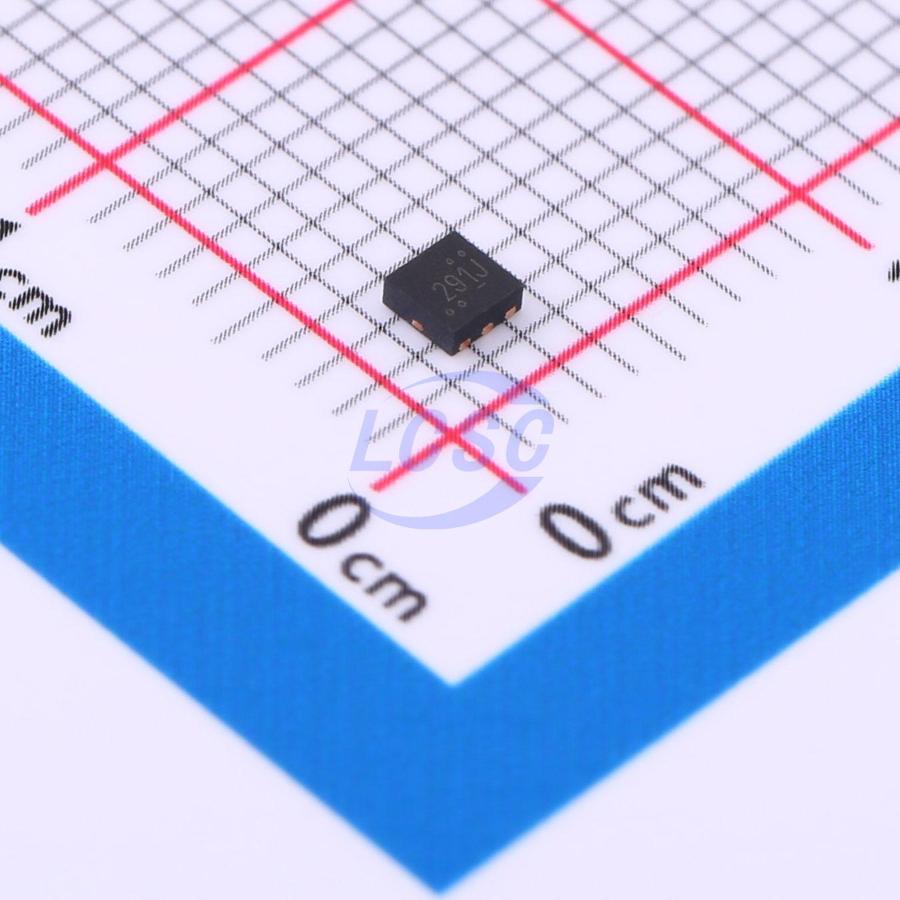

SIA433EDJ-T1-GE3-VB
P-Channel 20V 10A 17W Surface Mount DFN-6(2x2)
DFN-6(2x2)RoHSActive
MOSFET P-CH 20V 10A DFN-6(2x2)
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- SIA433EDJ-T1-GE3-VB
- Store part #
- C5441253
- Package / case
- DFN-6(2x2)
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
14 in stock
#C5441253
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹84.66 | ₹84.66 |
| 10+ | ₹68.69 | ₹686.90 |
| 30+ | ₹60.71 | ₹1,821.30 |
| 100+ | ₹52.73 | ₹5,273.00 |
| 500+ | ₹47.89 | ₹23,945.00 |
| 1,000+ | ₹45.38 | ₹45,380.00 |
1 × ₹84.66
₹84.66
excl. GST
₹99.90 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SIA433EDJ-T1-GE3-VB
₹84.66 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 20V
- Output Capacitance(Coss)
- 430pF
- Current - Continuous Drain(Id)
- 10A
- Ciss-Input Capacitance
- 1.6nF
- Pd - Power Dissipation
- 17W
- Reverse Transfer Capacitance (Crss)
- 370pF
- RDS(on)
- 30mΩ@4.5V
- Number
- 1 P-Channel
- Gate Charge(Qg)
- 38nC@8V
- Gate Threshold Voltage (Vgs(th))
- 1V
- Type
- P-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.207 g
Overview
Applications
- Load switch, power amplifier switch, and battery switch for portable devices
Key features
- Trench power MOSFET
- Thermally enhanced DFN2X2 package
- Small footprint
- Low on-resistance
- RoHS compliant
- Halogen-free
