VBsemi ElecDatasheet (PDF)

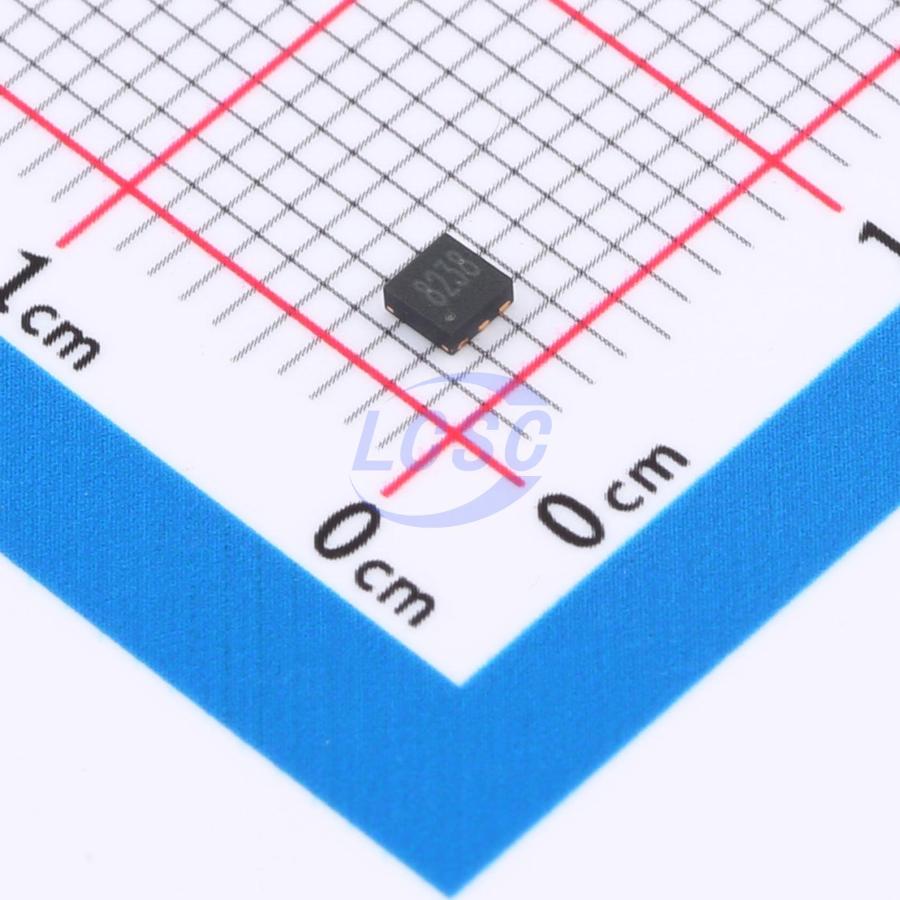

VBQG8238
P-Channel 20V 10A 17W Surface Mount DFN-6(2x2)
DFN-6(2x2)RoHSActive
MOSFET P-CH 20V 10A DFN-6(2x2)
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- VBQG8238
- Store part #
- C516977
- Package / case
- DFN-6(2x2)
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
19 in stock
#C516977
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹88.02 | ₹88.02 |
| 10+ | ₹71.84 | ₹718.40 |
| 30+ | ₹63.86 | ₹1,915.80 |
| 100+ | ₹55.88 | ₹5,588.00 |
| 500+ | ₹45.80 | ₹22,900.00 |
| 1,000+ | ₹43.28 | ₹43,280.00 |
1 × ₹88.02
₹88.02
excl. GST
₹103.86 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
VBQG8238
₹88.02 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 20V
- Output Capacitance(Coss)
- 430pF
- Current - Continuous Drain(Id)
- 10A
- Ciss-Input Capacitance
- 1.6nF
- Pd - Power Dissipation
- 17W
- Reverse Transfer Capacitance (Crss)
- 370pF
- RDS(on)
- 30mΩ@4.5V;40mΩ@2.5V
- Number
- 1 P-Channel
- Gate Charge(Qg)
- 38nC@8V;23nC@4.5V
- Gate Threshold Voltage (Vgs(th))
- 1V
- Type
- P-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.13 g
Overview
Applications
- Load switch, power amplifier switch, and battery switch for portable devices
Key features
- Trench Power MOSFET
- Thermally Enhanced DFN2X2 Package
- Small Form Factor
- Low On-Resistance
- RoHS Compliant
- Halogen-Free
