TECH PUBLICDatasheet (PDF)

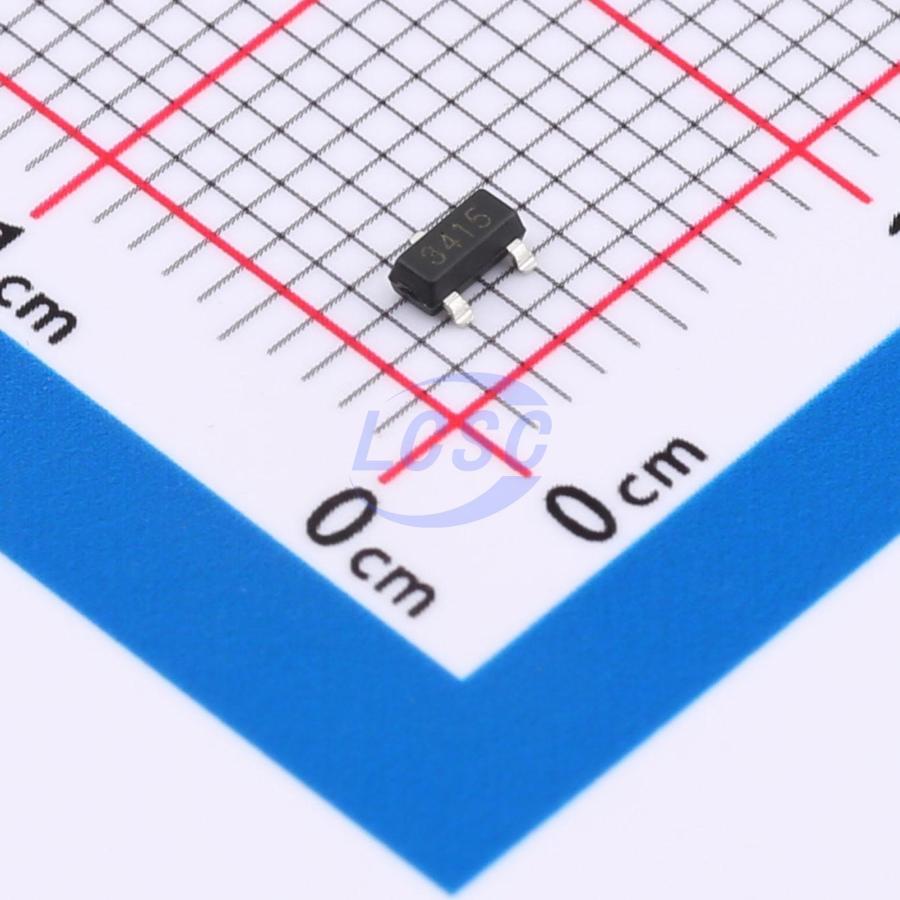

PMV33UPE
20V 4A 1.4W Surface Mount SOT-23
SOT-23RoHSActive
MOSFET 20V 4A SOT-23
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- PMV33UPE
- Store part #
- C28646373
- Package / case
- SOT-23
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,450 in stock
#C28646373
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹6.89 | ₹68.90 |
| 100+ | ₹5.45 | ₹545.00 |
| 300+ | ₹4.72 | ₹1,416.00 |
| 3,000+ | ₹4.18 | ₹12,540.00 |
| 6,000+ | ₹3.76 | ₹22,560.00 |
| 9,000+ | ₹3.53 | ₹31,770.00 |
10 × ₹6.89
₹68.90
excl. GST
₹81.30 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
PMV33UPE
₹68.90 for 10 + GST
Specifications
- Drain to Source Voltage
- 20V
- Operating Temperature
- -55℃~+150℃
- Output Capacitance(Coss)
- 121.3pF
- Current - Continuous Drain(Id)
- 4A
- Ciss-Input Capacitance
- 1.1811nF
- Pd - Power Dissipation
- 1.4W
- Reverse Transfer Capacitance (Crss)
- 114.8pF
- RDS(on)
- 36mΩ@4.5V
- Number
- 1 P-Channel
- Gate Charge(Qg)
- 10.2nC@4.5V
- Gate Threshold Voltage (Vgs(th))
- 900mV
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.031 g
Overview
Applications
- Load/Power Switching
- Interfacing
- Switching
- Logic Level Shift
Key features
- VDS = -20V, ID = -4A
- RDs(on) < 36mΩ @ Vgs = -4.5V
- RDS(ON) < 49mΩ @ VGS = -2.5V
- ESD Rating: 2500V HBM
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | TPM3415ES3#C2841417TECH PUBLIC · SOT-23-3 | TECH PUBLIC | SOT-23-3 | 3,930 | ₹8.55 · 3,930 in stock | View |
 | APM2301CAC-TP#C47117515TECH PUBLIC · SOT-23 | TECH PUBLIC | SOT-23 | 2,770 | ₹8.84 · 2,770 in stock | View |
 | AO3415#C5380662TECH PUBLIC · SOT-23 | TECH PUBLIC | SOT-23 | 6,840 | ₹7.62 · 6,840 in stock | View |
 | AO3415A#C2890123TECH PUBLIC · SOT-23 | TECH PUBLIC | SOT-23 | 1,500 | ₹7.24 · 1,500 in stock | View |
 | TPM3415ES3-1#C5310937TECH PUBLIC · SOT-23 | TECH PUBLIC | SOT-23 | 2,880 | ₹8.37 · 2,880 in stock | View |
